APC Digital KVM with VM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

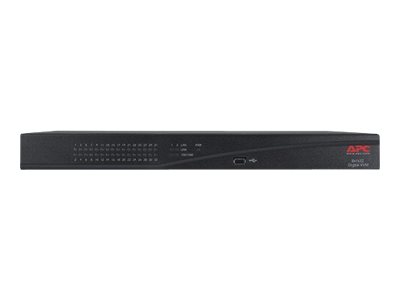

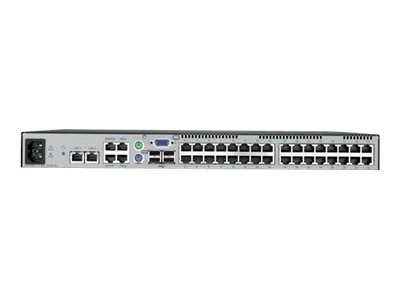

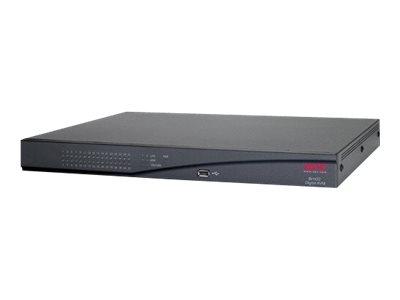

APC Digital KVM with VM
- KVM switch
- CAT5
- 32 x KVM port(s)
- 1 local user
- 8 IP users
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | AP5616 |
| SHI Part #: | 17614083 |
| Category: | Peripheral switch boxes |
| UNSPSC: | 43211604 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Monitors and Displays
- 17"
- rack-mountable
- 1280 x 1024 @ 75 Hz
- black
- 1U
- for P/N: AR3106SP, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
Power Distribution (PDU)
- Power distribution strip (rack-mountable)
- AC 120 V
- 1.8 kW
- input: NEMA 5-15
- output connectors: 10 (NEMA 5-15)
- 1U
- Power distribution unit (rack-mountable)
- AC 200/208 V
- 4992 VA
- input: NEMA L6-30
- output connectors: 24 (power IEC 60320 C13, IEC 60320 C19)
- 0U
- Power distribution strip (rack-mountable)
- AC 200/208/230 V
- Ethernet 10/100, RS-232
- input: NEMA L6-30
- output connectors: 42 (power IEC 60320 C13, IEC 60320 C19)
- 0U
MSRP €969.00
€960.00
| General Information | |
|---|---|
| Category | Peripheral switch boxes |
| Description | APC Digital KVM with VM - KVM switch - CAT5 - 32 x KVM port(s) - 1 local user - 8 IP users - rack-mountable |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 43211604 |
| Main Specifications | |
| Dimensions & Weight / Depth | 34.8 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 5.6 kg |
| Dimensions & Weight / Width | 42.9 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 32 |
| Networking / Type | KVM switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 34.8 cm |
| Height | 4.3 cm |
| Weight | 5.6 kg |
| Width | 42.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | KVM switch - 32 ports - cascadable |
| Enclosure Type | Rack-mountable 1U |
| Features | On-Screen Display, LDAP support, Syslog support, firmware upgradable |
| Keyboard / Mouse Interface | PS/2 |
| KVM IP Users Qty | 8 IP users |
| KVM Local Users Qty | 1 local user |
| Max Resolution | 1280 x 1024 @ 75 Hz |
| Ports | 32 x KVM port(s) |
| Server Connection Via Twisted Pair | CAT5 |
| Subtype | KVM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x serial cable |
| Color | Black |
| Compliant Standards | UL, C-Tick, cUL, EN 60950, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, IRAM, UL 60950-1, CSA C22.2 No. 60950-1-03 |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 30 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
