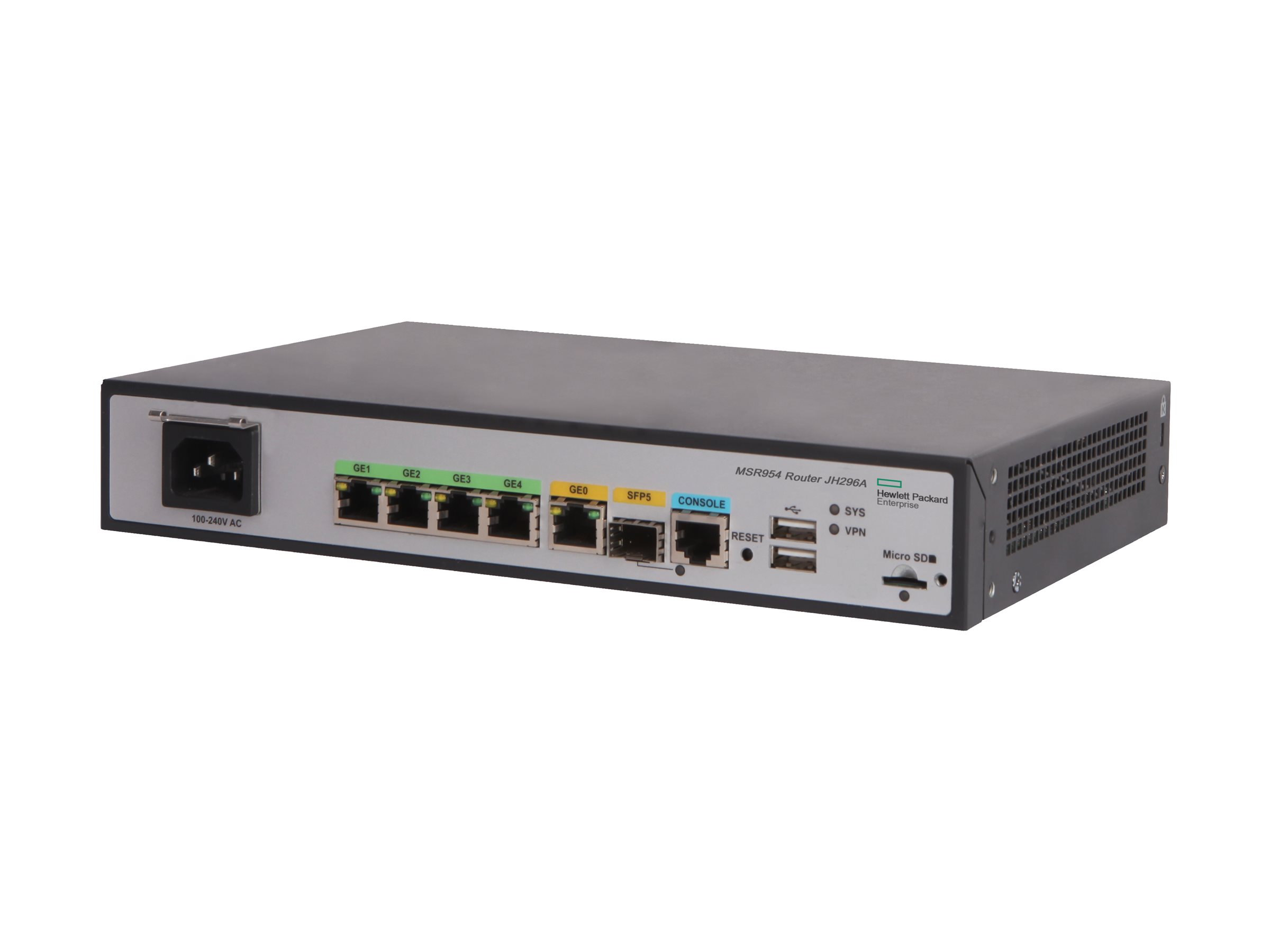

HPE MSR954 - Router 4-port switch


MSRP€899.00
€758.00
HPE MSR954 - Router 4-port switch

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 1GbE
  • rack-mountable
HPE MSR954 - Router 4-port switch
  • 1GbE
  • rack-mountable
  Additional Details
Price: €758.00
MSRP: €899.00
Mfr Part #: JH296A#ABB
SHI Part #: 32352341
Category: Routers
UNSPSC: 43222609
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryRouters
DescriptionHPE MSR954 - Router 4-port switch - 1GbE - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP€899.00
UNSPSC43222609
Main Specifications
Dimensions & Weight / Depth16.1 cm
Dimensions & Weight / Height4.36 cm
Dimensions & Weight / Weight1 kg
Dimensions & Weight / Width26.6 cm
Header / BrandHPE
Header / Country KitsEurope
Header / LocalizationEnglish
Miscellaneous / Product Color
  • Gray
  • White
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Networking / Data Transfer Rate1 Gbps
Networking / Form FactorRack-mountable
Networking / TypeRouter
OS Provided / TypeComware v7
Packaged Quantity1
Service & Support / Type1-year warranty
Dimensions & Weight
Depth16.1 cm
Height4.36 cm
Weight1 kg
Width26.6 cm
Environmental Parameters
Humidity Range Operating5 - 92% (non-condensing)
Max Operating Temperature45 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x Ethernet 1000 - SFP (mini-GBIC)
  • WAN: 1 x Ethernet 1000 - RJ-45
  • LAN: 4 x Ethernet 1000 - RJ-45
  • 2 x USB 2.0
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • VPN tunnels: 100
  • IPv4 routing table entries: 10000
  • IPv6 routing table entries: 5000
  • IPv4 forwarding table entries: 10000
  • IPv6 forwarding table entries: 5000
Compliant StandardsIEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ETSI, EN55022, ICES-003 Class B, FCC Part 68 / CS03 Issue 8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC 2004/108/EC, EN 300 386 V1.3.3, AS/NZS CISPR 22 Class B, CAN/CSA-C22.2 No. 60950-1, EN 55024:1998+A1:2001+A2:2003
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate1 Gbps
Device TypeRouter - 4-port switch (integrated)
Enclosure TypeRack-mountable - 1U
Encryption AlgorithmDES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
FeaturesNAT support, VLAN support, port mirroring, WRED, sFlow, STP support, RSTP support, MSTP support, tunneling, ACL support, QoS, CAR, URPF, DHCP relay, MIB, port isolation, packet storm protection, CoS, Loopback, DVPN, MBGP, RED
Flash Memory256 MB
Network / Transport ProtocolTCP/IP, UDP/IP, NTP, IPSec, ARP
Performance
  • Forwarding performance: up to 300 Kpps
  • Encryption throughput: up to 160 Mbps
  • Throughput (64-byte packet size): up to 300 Kpps
Processor1 x Marvell A370 800 MHz
RAM1 GB DDR3 SDRAM
Remote Management ProtocolSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, TFTP, CLI
Routing ProtocolOSPF, EGP, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, OSPFv3, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, BGP-4+, BGP+
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
LocalizationEnglish / Europe
Power
Voltage RequiredAC 120/230 V
Software / System Requirements
OS ProvidedComware v7
