HPE ATEN CS1316 G2 0x1x16
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

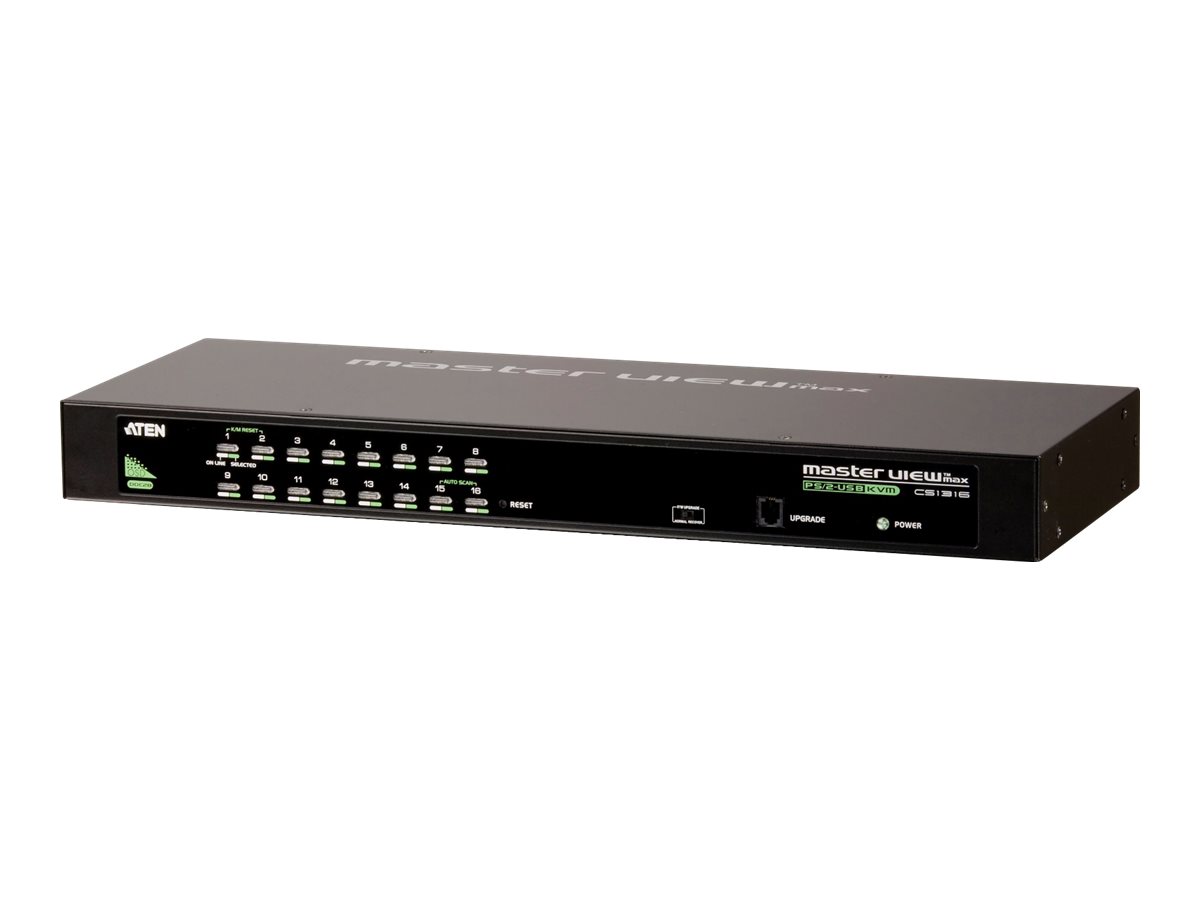

HPE ATEN CS1316 G2 0x1x16
- KVM switch
- 16 x KVM port(s)
- 1 local user
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | Q1F46A |
| SHI Part #: | 39332503 |
| Category: | Peripheral switch boxes |
| UNSPSC: | 43211604 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Peripheral switch boxes |
| Description | HPE ATEN CS1316 G2 0x1x16 - KVM switch - 16 x KVM port(s) - 1 local user - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211604 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.13 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 2.1 kg |
| Dimensions & Weight / Width | 43.72 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 16 |
| Networking / Type | KVM switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 16.13 cm |
| Height | 4.4 cm |
| Weight | 2.1 kg |
| Width | 43.72 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | KVM switch - 16 ports - cascadable |
| Enclosure Type | Rack-mountable 1U |
| Features | On-Screen Display, firmware upgradable, input selection buttons, Video DynaSync, audible alarm notification, Auto Scan Mode, metal housing, cable management, 2-factor authentication, firmware upgrade recovery switch |
| Keyboard / Mouse Interface | USB |
| KVM Local Users Qty | 1 local user |
| Max Resolution | 2048 x 1536 |
| Max Units In A Stack | 16 |
| Ports | 16 x KVM port(s) |
| Status Indicators | Port status, power, select |
| Subtype | KVM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | DDC-2B |
| Included Accessories | 4 foot pads, 5 x zip ties |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 6.6 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS 9.0 or later, Microsoft Windows 2000 or later, IBM AIX 4.3 or later, Novell NetWare 5.0 or later, Red Hat Linux 7.1 or later, Mandrake Linux 9.0 or later, Microsoft Windows Server 2008 R2, SuSE Linux 8.2 or later, Microsoft Windows Server 2012 R2, FreeBSD 4.2 or later, openSUSE 13.2, CentOS 7.0, SuSE Linux Enterprise Server 12 SP3, Ubuntu 16.04, VMware ESXi 6.7, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, SunSoft Solaris 11.3 |
