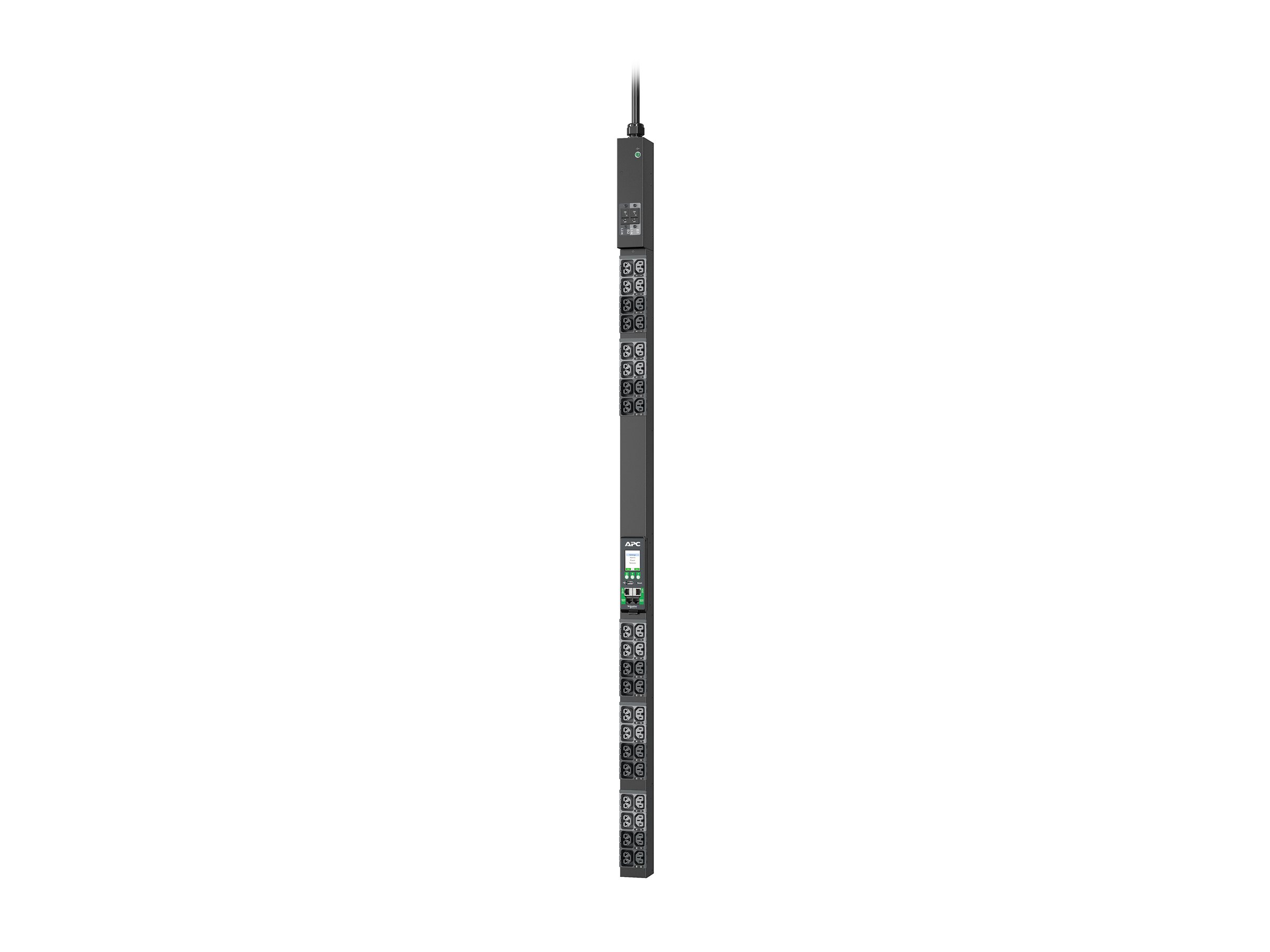

APC NetShelter Rack PDU Advanced
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC NetShelter Rack PDU Advanced
- Power distribution unit (rack-mountable)
- metered, 230V, 32A
- AC 200-240 V
- 7.4 kW
- 7400 VA
- 1-phase
- Ethernet 10/100/1000, Ethernet 10/100
- input: IEC 60309 332P6

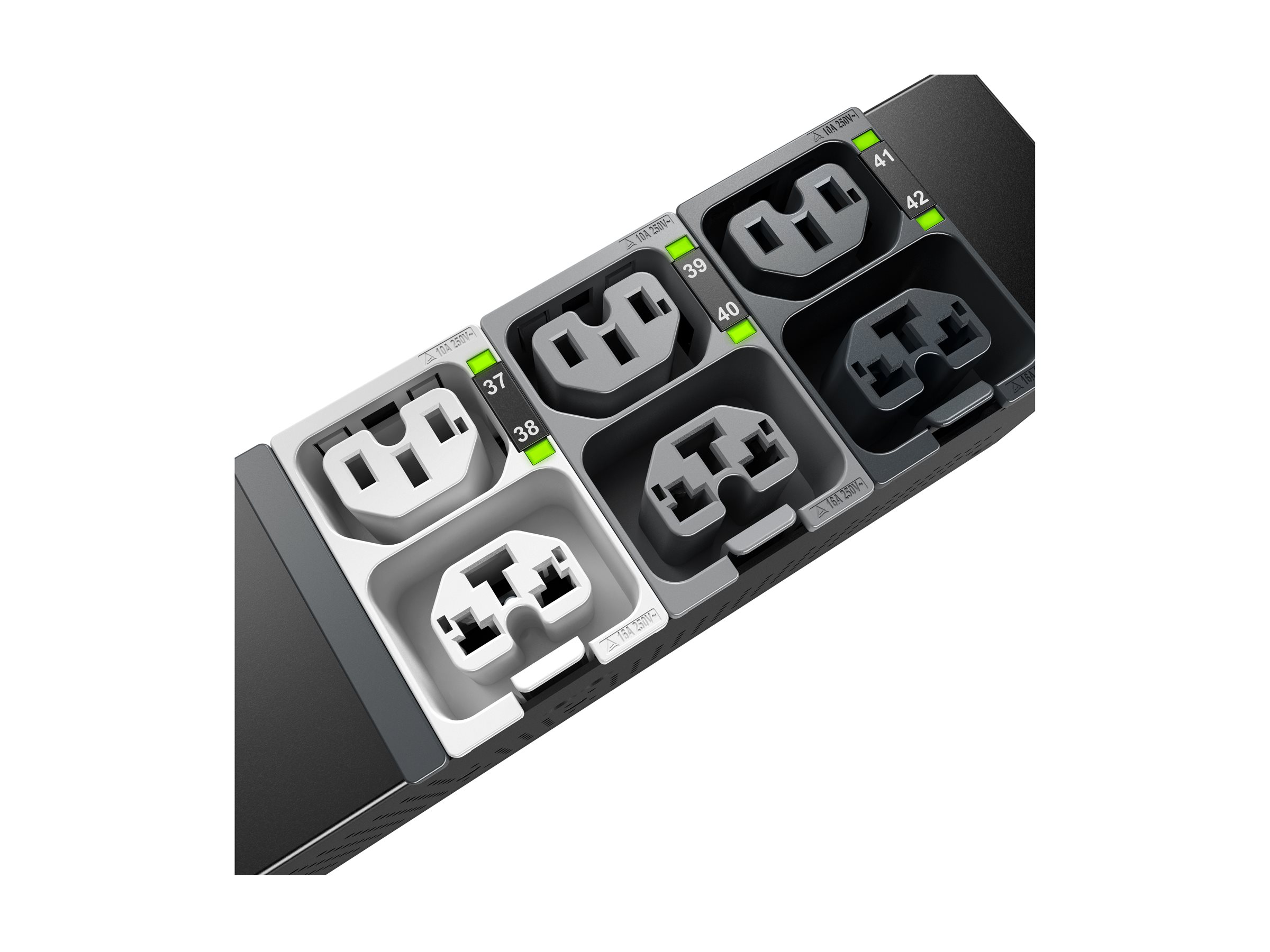

- output connectors: 40 (20 x IEC 60320 C13/C15/C19/C21, 20 x IEC 60320 C13/C15)
- 0U
- 3 m cord
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | APDU10150ME |
| SHI Part #: | 46220916 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - metered, 230V, 32A - AC 200-240 V - 7.4 kW - 7400 VA - 1-phase - Ethernet 10/100/1000, Ethernet 10/100 - input: IEC 60309 332P6 - output connectors: 40 (20 x IEC 60320 C13/C15/C19/C21, 20 x IEC 60320 C13/C15) - 0U - 3 m cord - black - TAA Compliant |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.5 cm |
| Dimensions & Weight / Height | 149 cm |
| Dimensions & Weight / Weight | 6.2 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 40 |
| Power Device / Power Capacity (VA) | 7400 VA |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 7.5 cm |
| Height | 149 cm |
| Weight | 6.2 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 20.8 cm |
| Shipping Height | 172 cm |
| Shipping Weight | 8.2 kg |
| Shipping Width | 11.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UKCA, EN 62368-1, China RoHS, REACH, EU RoHS |

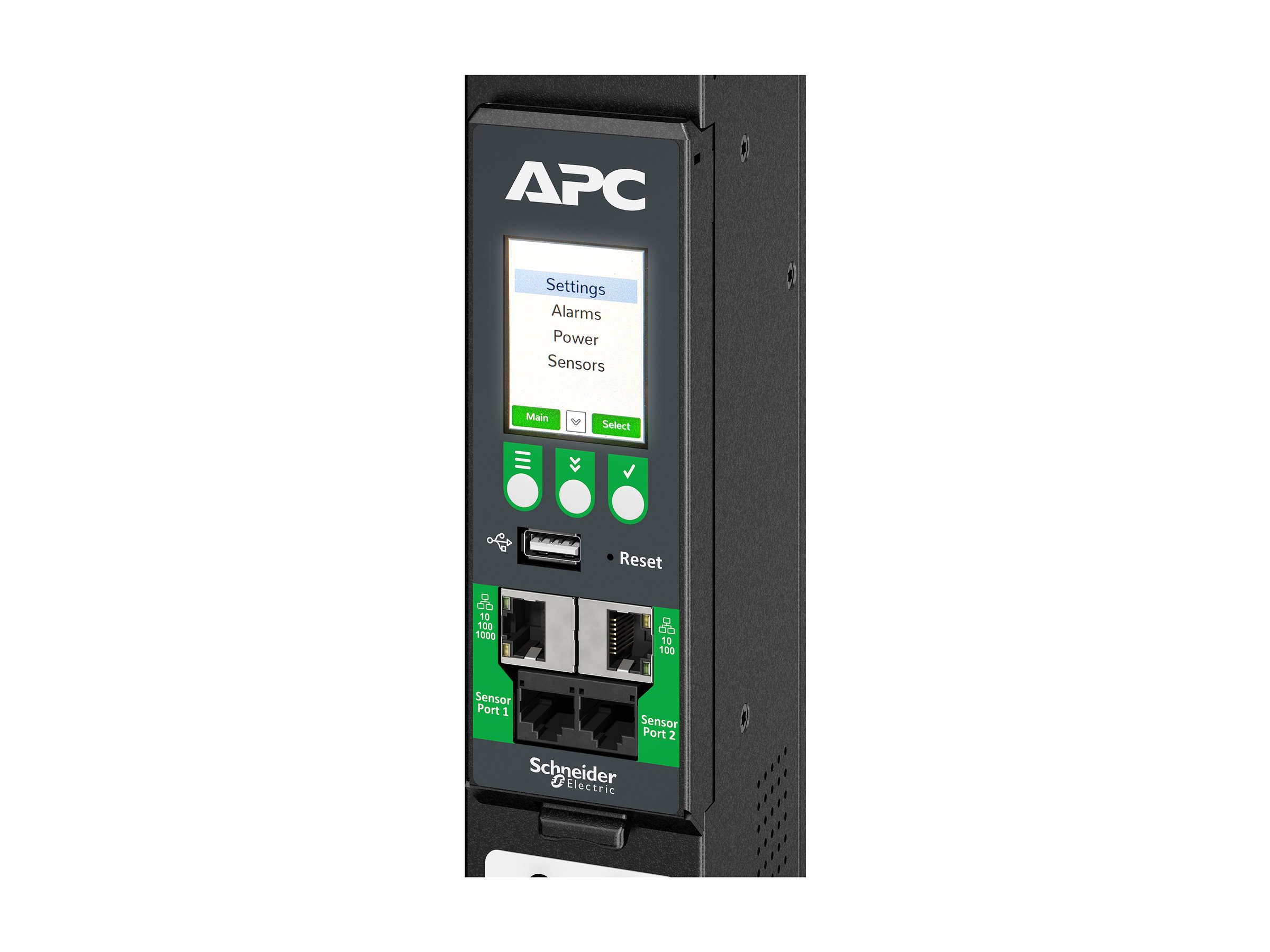

| Features | Vertical orientation, local metered, remote metered, cascadable, LCD display, alarm thresholds |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, Ethernet 10/100 |
| Power Device | |
| Frequency Required | 50/60 Hz |

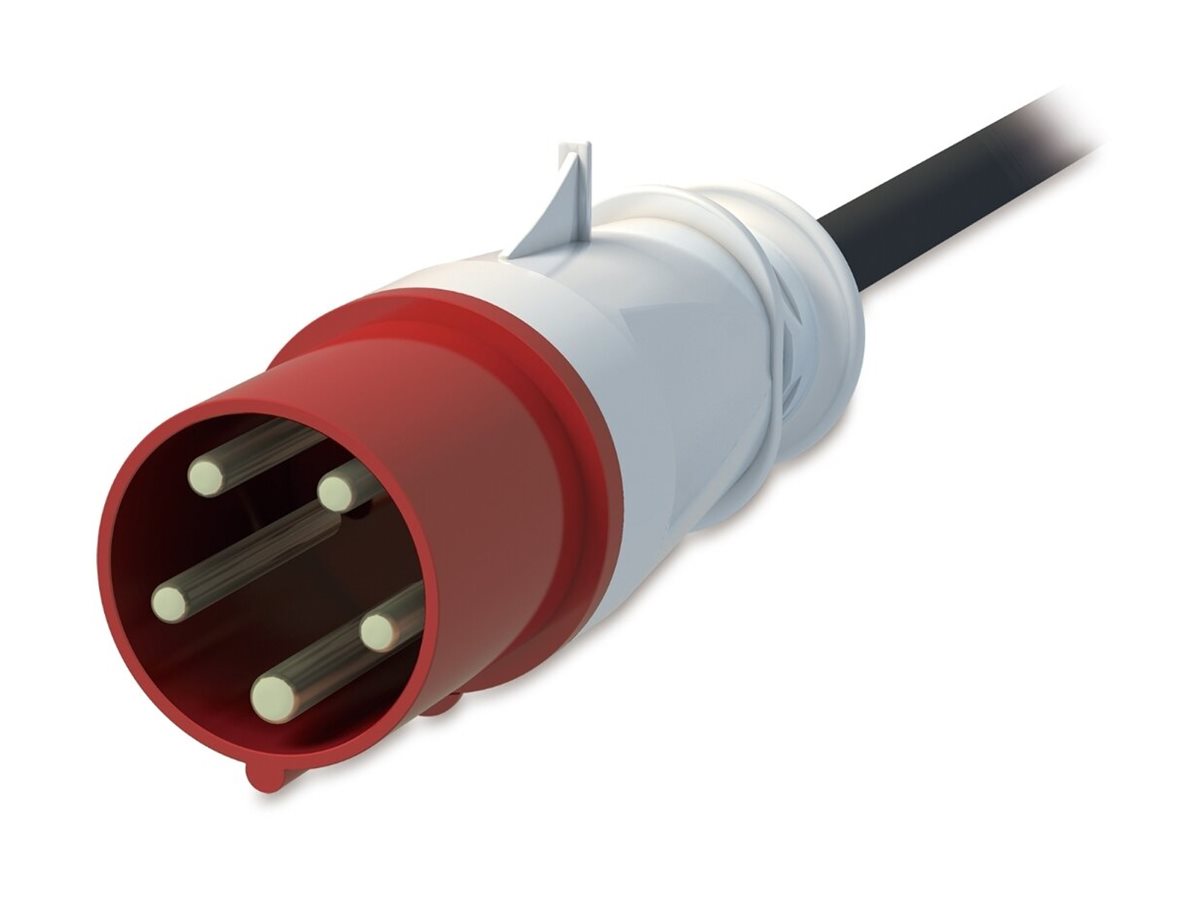

| Input Connectors | 1 x power IEC 60309 332P6 |
| Input Voltage | AC 200-240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 7.4 kW / 7400 VA |
| Power Output Connectors Details |
|
