Cisco Catalyst 3850-48XS-E
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

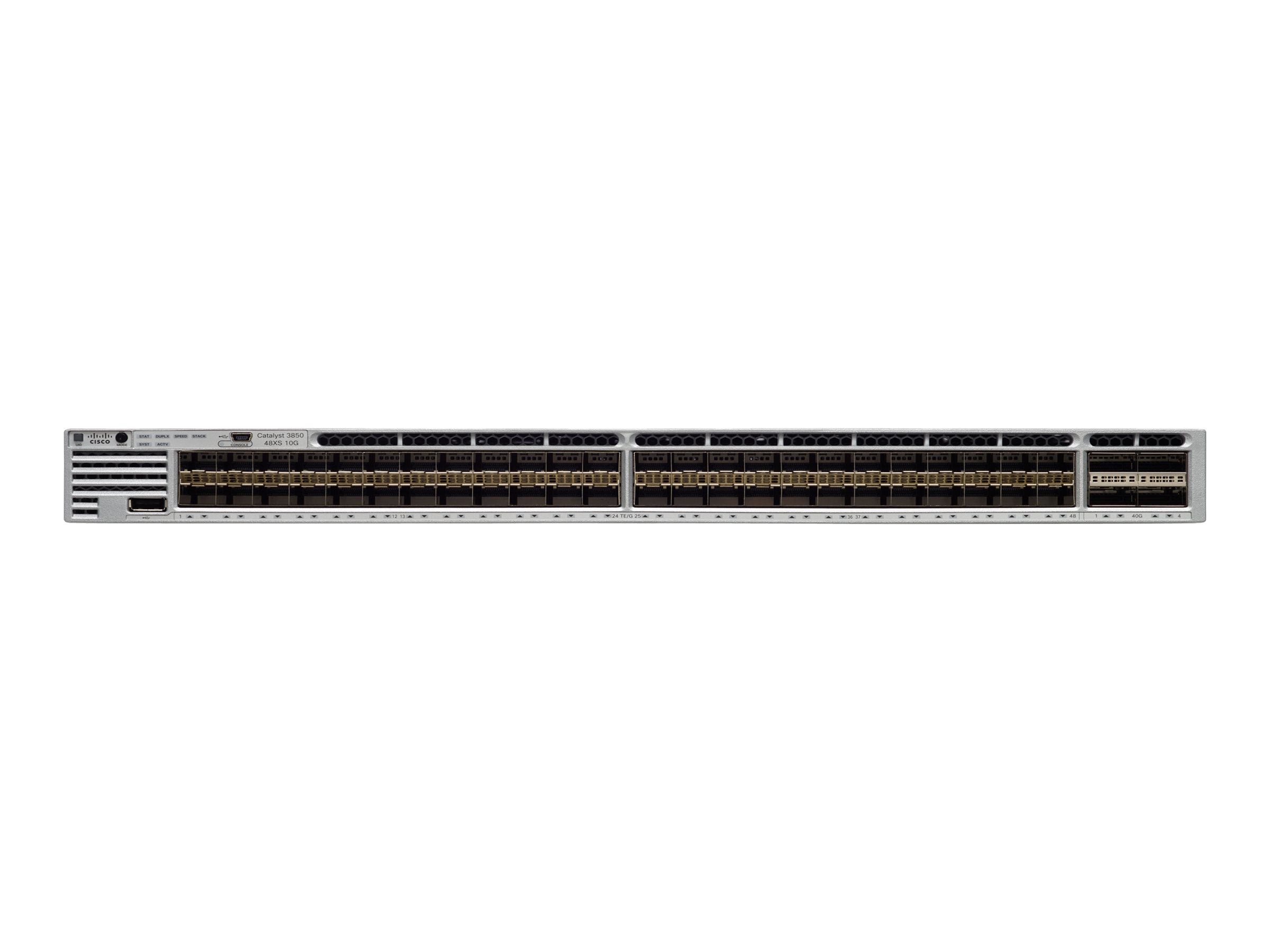

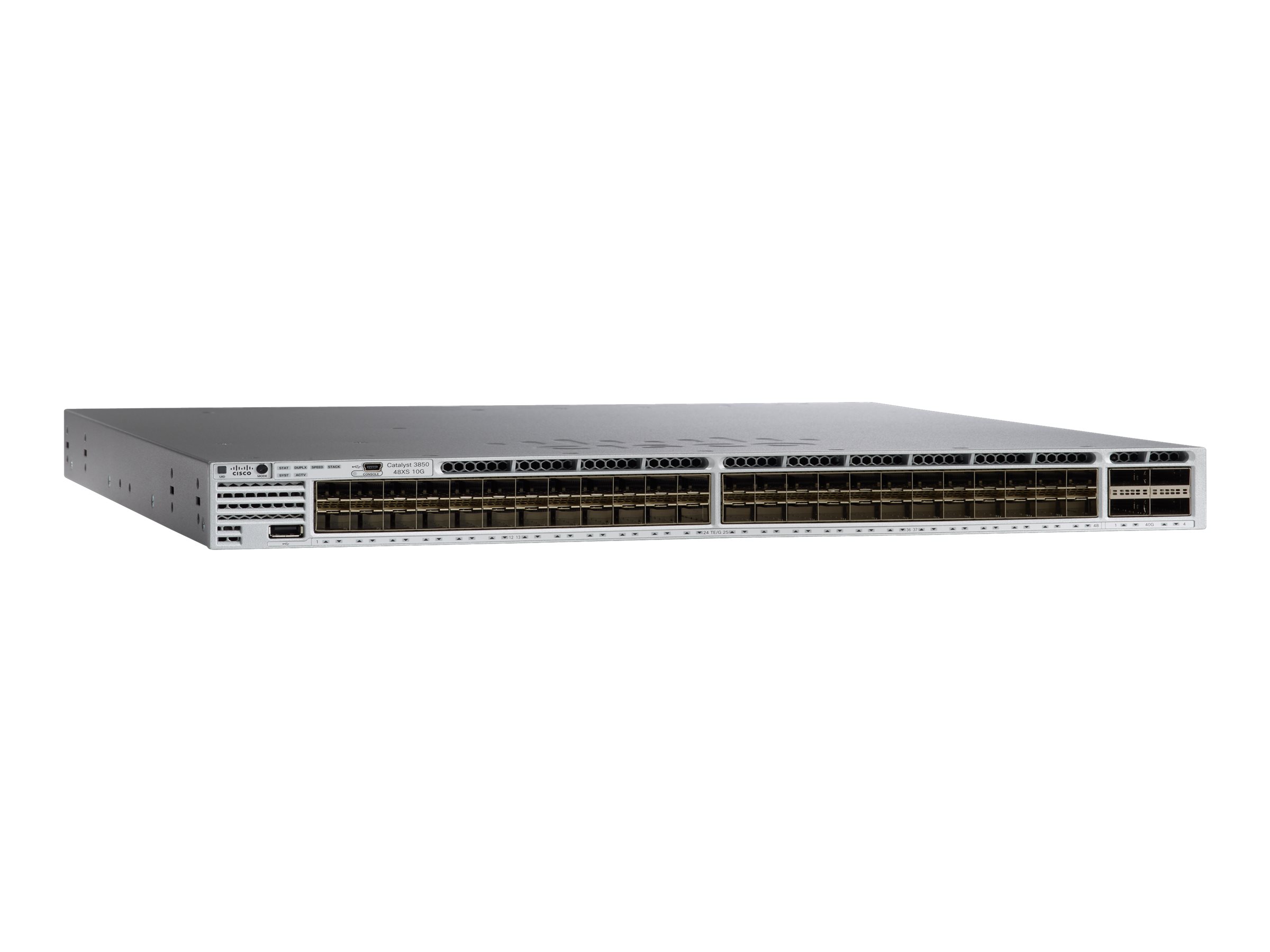

Cisco Catalyst 3850-48XS-E
- Switch
- L3
- managed
- 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x QSFP+
- front to back airflow
- desktop, rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | WS-C3850-48XS-E |
| SHI Part #: | 31196316 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
Network Cables
- Direct attach cable
- SFP+ to SFP+
- 3 m
- twinaxial
- SFF-8436/IEEE 802.3ae
- for 250 Series; Catalyst 2960, 2960G, 2960S, ESS9300; Nexus 93180, 9336, 9372; UCS 6140, C4200
- Direct attach cable
- SFP+ to SFP+
- 1 m
- twinaxial
- for 250 Series; Catalyst 2960, 2960G, 2960S, ESS9300; Nexus 93180, 9336, 9372; UCS 6140, C4200
- Direct attach cable
- SFP+ to SFP+
- 2 m
- twinaxial
- brown
- for 250 Series; Catalyst 2960, 2960G, 2960S, ESS9300; Nexus 93180, 9336, 9372; UCS 6140, C4200
MSRP €104.68
€94.00
Hardware
- 40 Gigabit LAN
- 40GBASE-SR4
- MPO multi-mode
- up to 150 m
- 850 nm
- for Cisco 1-port 40, 2-port 40; Nexus 2248PQ 10, 3016, 3064, 6001, 93108, 93180, 9336, 9372
- 10 GigE
- 10GBase-LRM
- LC/PC
- up to 300 m
- 1310 nm
- for Nexus 93180YC-FX, 9372PX-E
- 10GBase-ZR
- LC/PC
- up to 80 km
- 1550 nm
- for Nexus 93180YC-FX, 9372PX-E
MSRP €16,749.17
€13,873.00
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco Catalyst 3850-48XS-E - Switch - L3 - managed - 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x QSFP+ - front to back airflow - desktop, rack-mountable |
| Manufacturer | Cisco Systems |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 51.1 cm |
| Dimensions & Weight / Height | 4.45 cm |
| Dimensions & Weight / Weight | 7.45 kg |
| Dimensions & Weight / Width | 44.5 cm |
| Header / Brand | Cisco |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor |
|
| Networking / Ports Qty | 48 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 51.1 cm |
| Height | 4.45 cm |
| Weight | 7.45 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow desktop, rack-mountable 1U |
| Features | DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP) |
| Flash Memory | 8 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Performance |
|
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x QSFP+ |
| RAM | 8 GB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MLDv2, MLD |
| Status Indicators | Port transmission speed, port duplex mode, power, system, active, status |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR 22, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| MTBF | 286,900 hours |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply |
| Power Provided | 750 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Services |
