HPE FlexFabric 5945 32QSFP28
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

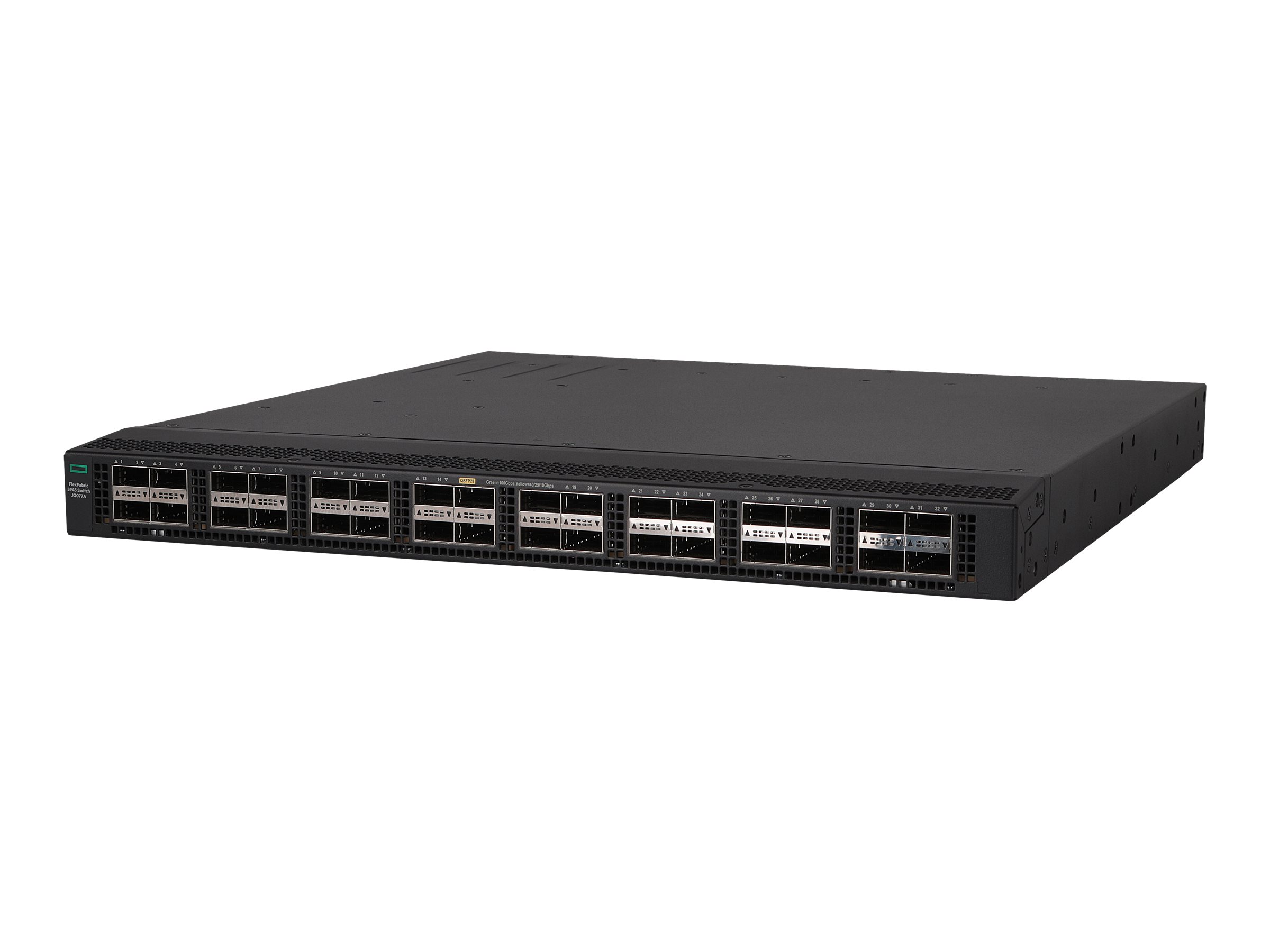

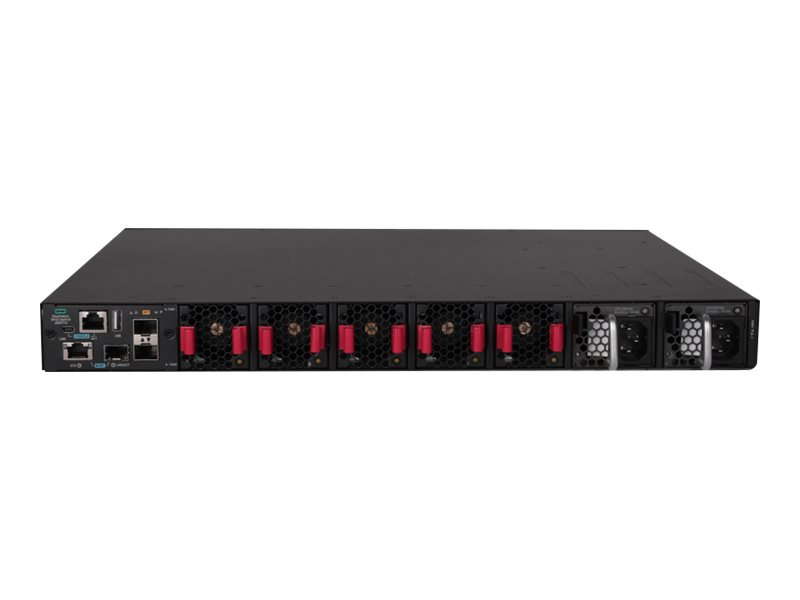

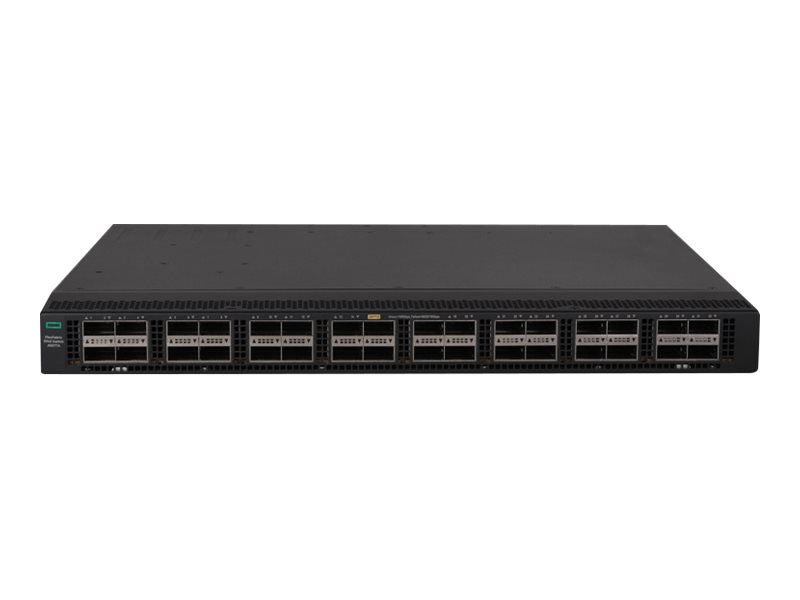

HPE FlexFabric 5945 32QSFP28
- Switch
- L3
- managed
- 32 x 100 Gigabit QSFP28 + 2 x Gigabit SFP
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | JQ077A |
| SHI Part #: | 37593046 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE FlexFabric 5945 32QSFP28 - Switch - L3 - managed - 32 x 100 Gigabit QSFP28 + 2 x Gigabit SFP - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 46 cm |
| Dimensions & Weight / Height | 4.36 cm |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 32 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 46 cm |
| Height | 4.36 cm |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 10.4 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Features | Flow control, ARP support, IGMP snooping, packet filtering, port mirroring, MAC address filtering, WFQ, sFlow, VRRP support, MSTP support, DCBX support, ACL support, QoS, DLDP support, ECMP, BFD, LLDP support, dual firmware images, NTP time synchronization, ISSU, ECN, PFC, VXLAN, RBAC, EVPN, policy based routing, LLDP-MED, WRR, OAM support mechanism, ETS, IRF Technology, Rapid Convergence Spanning Tree Protocol |
| Flash Memory | 1 GB |
| Jumbo Frame Support | 9416 bytes |
| Performance |
|
| Ports | 32 x 100 Gigabit QSFP28 + 2 x Gigabit SFP |
| RAM | 8 GB SDRAM |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, RIP-2, IGMP, VRRP, VRRPE, static IPv6 routing, BGP+ |
| Subtype | 100 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class A, FDA 21 CFR, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 386 |
| Power | |
| Max Supported Qty | 2 |
| Power Device | Internal power supply (not installed) - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
