Fujitsu B24-8 TS Pro
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

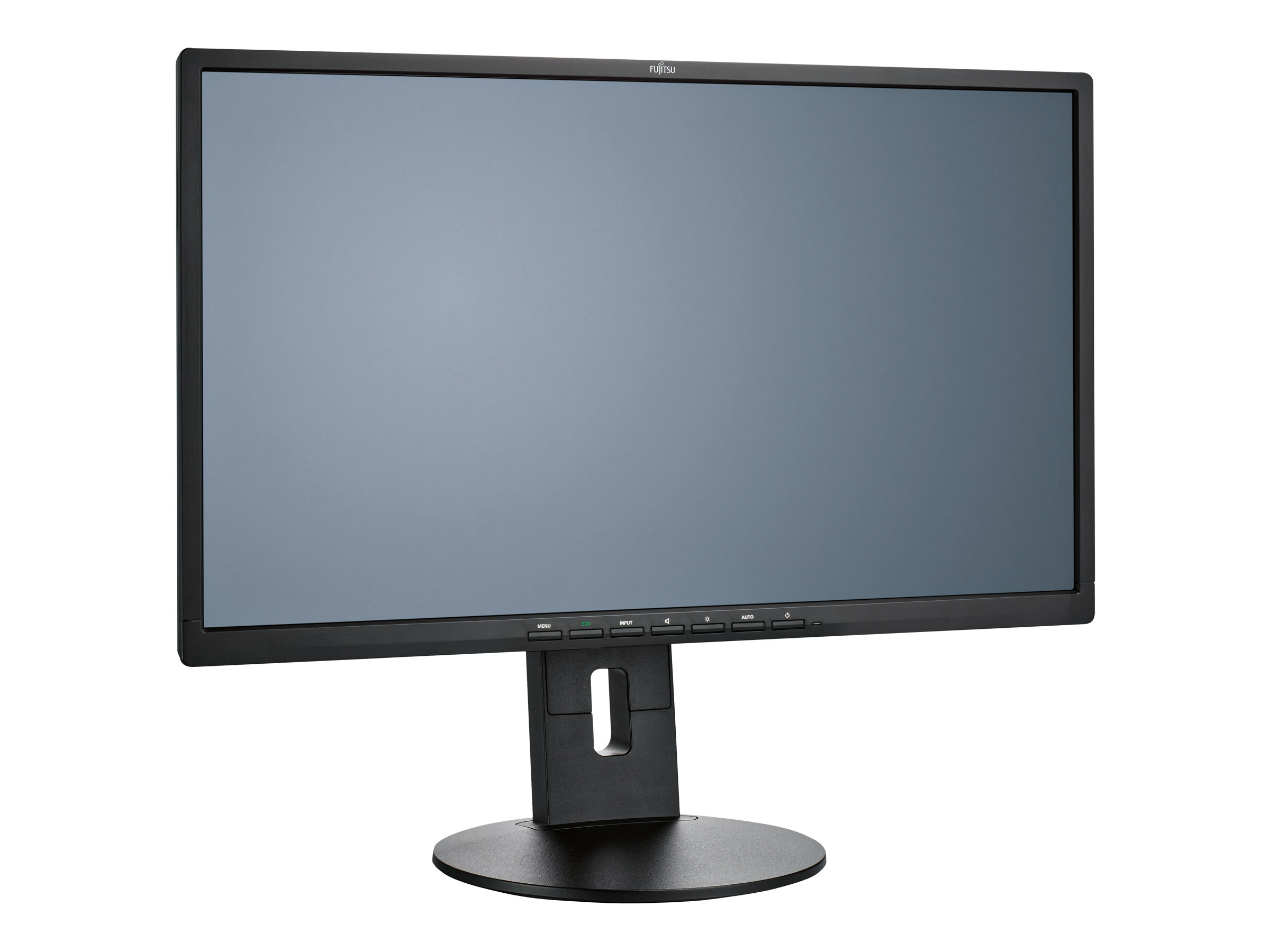

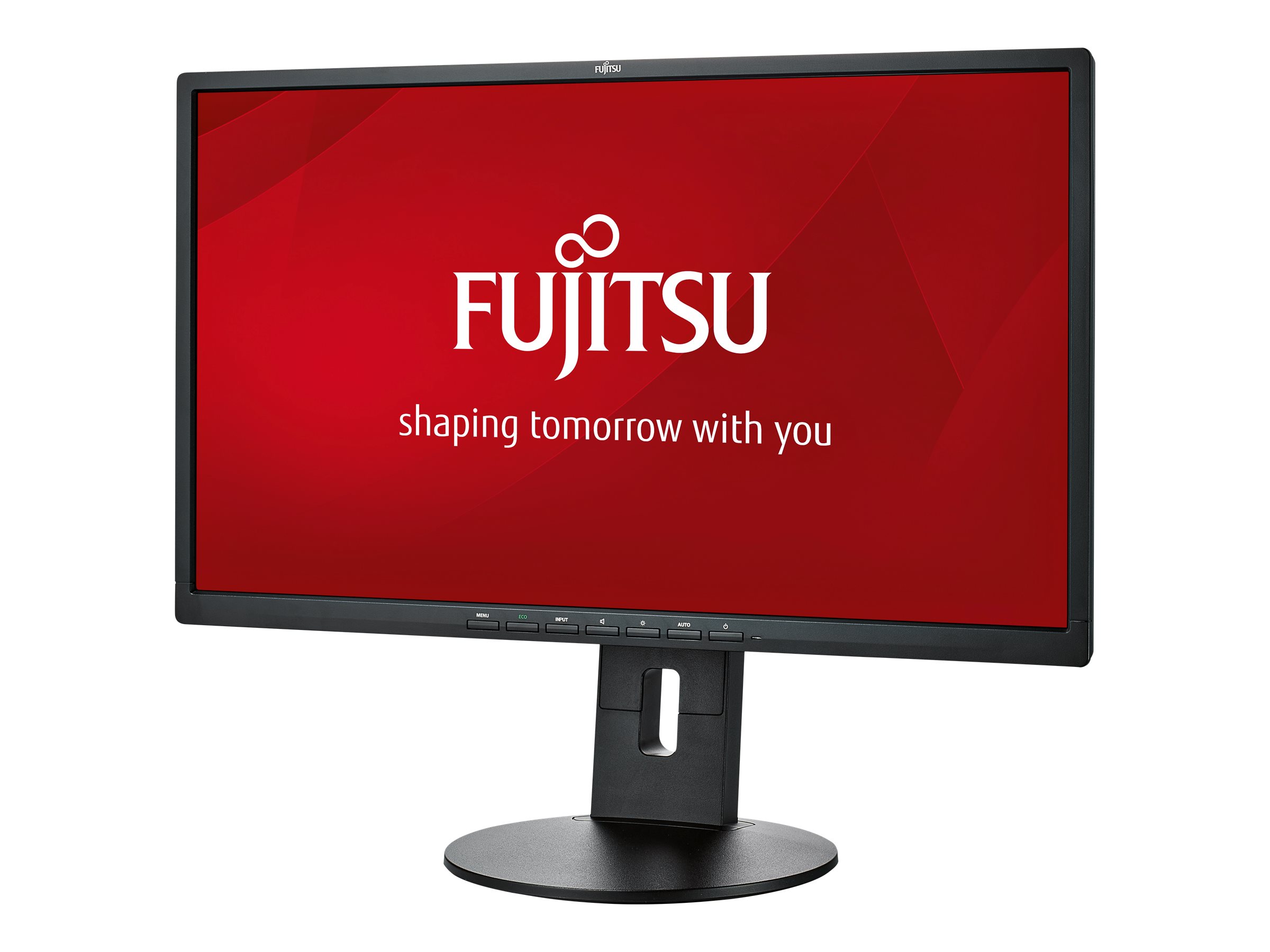

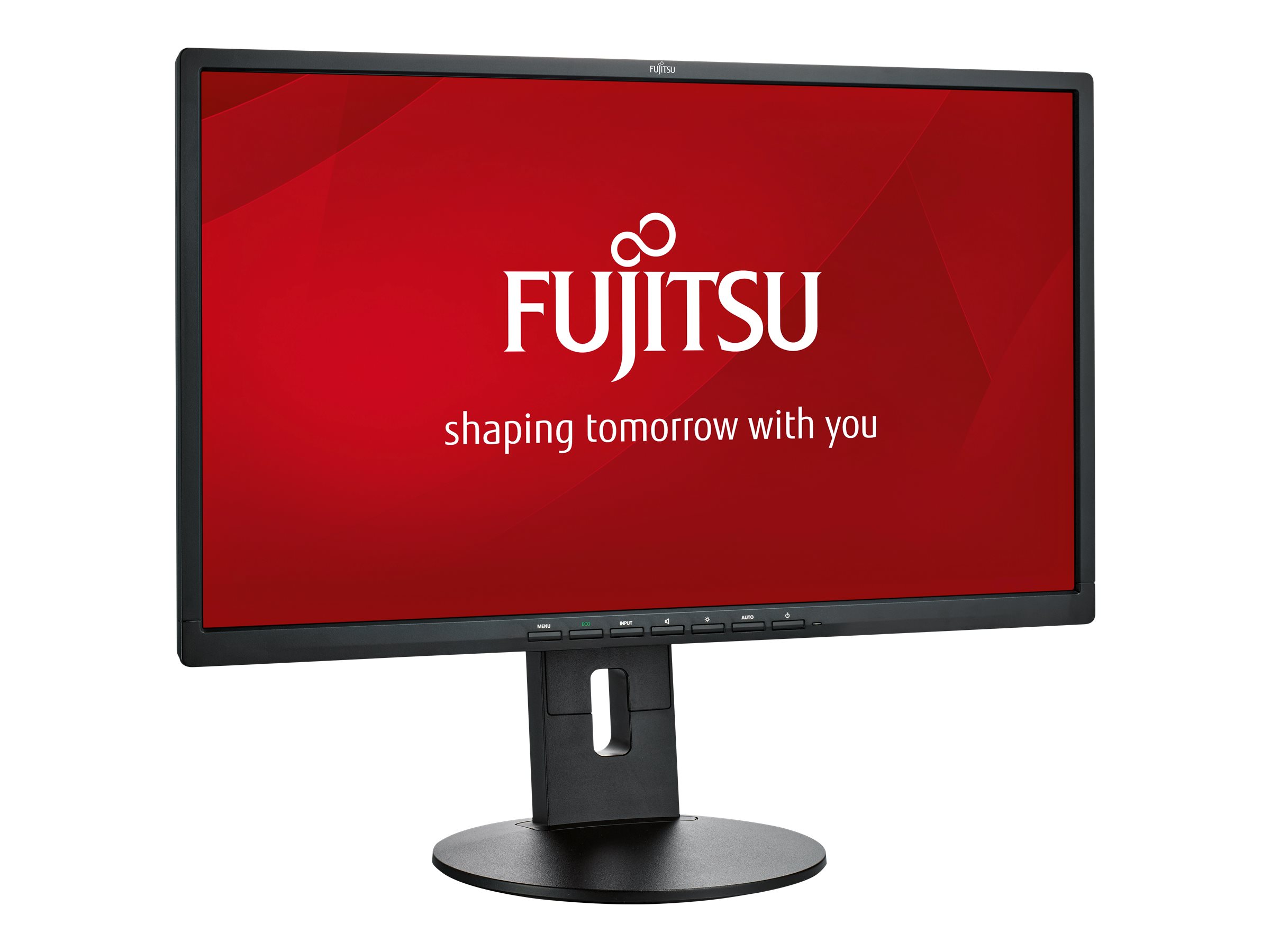

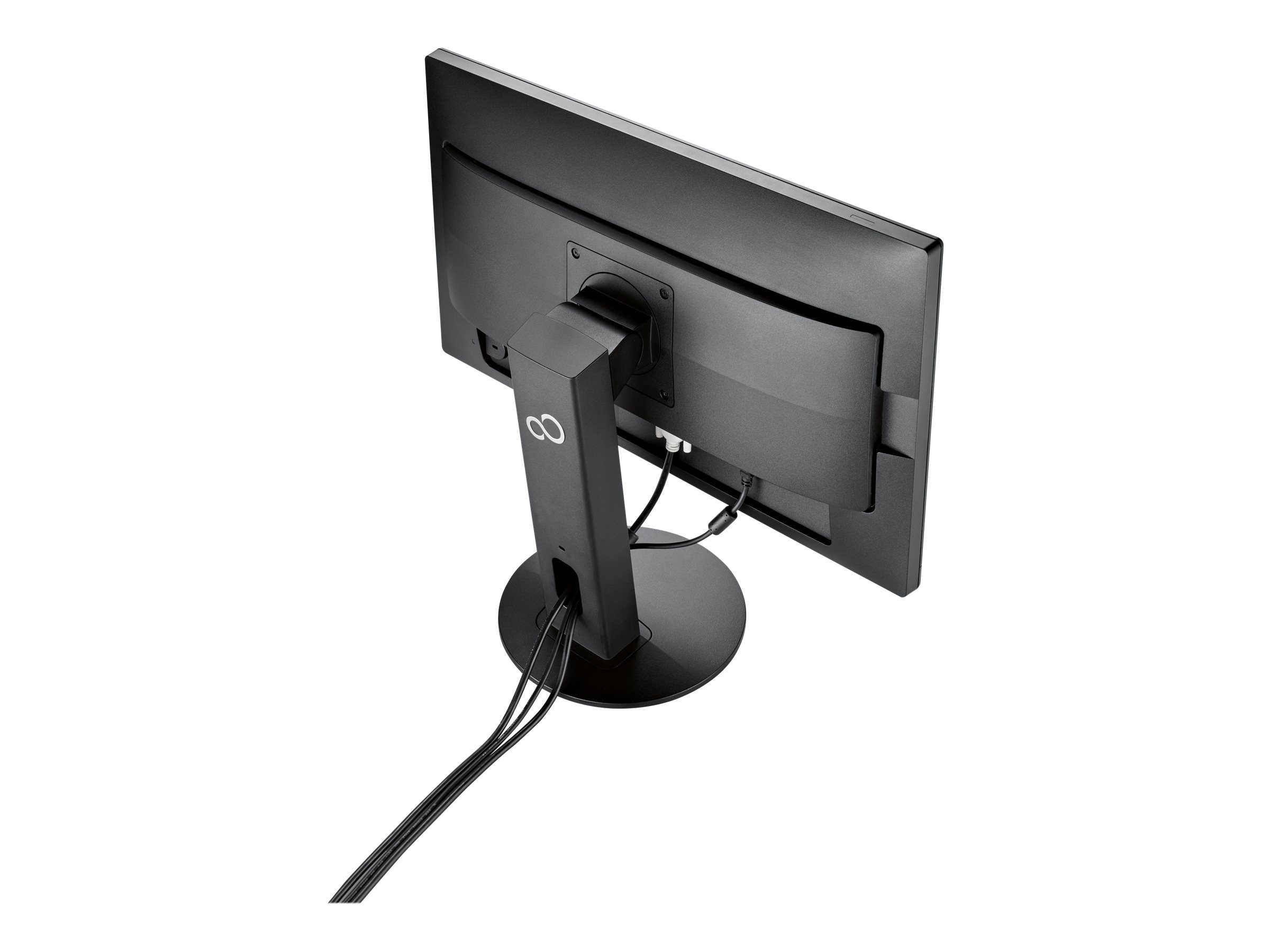

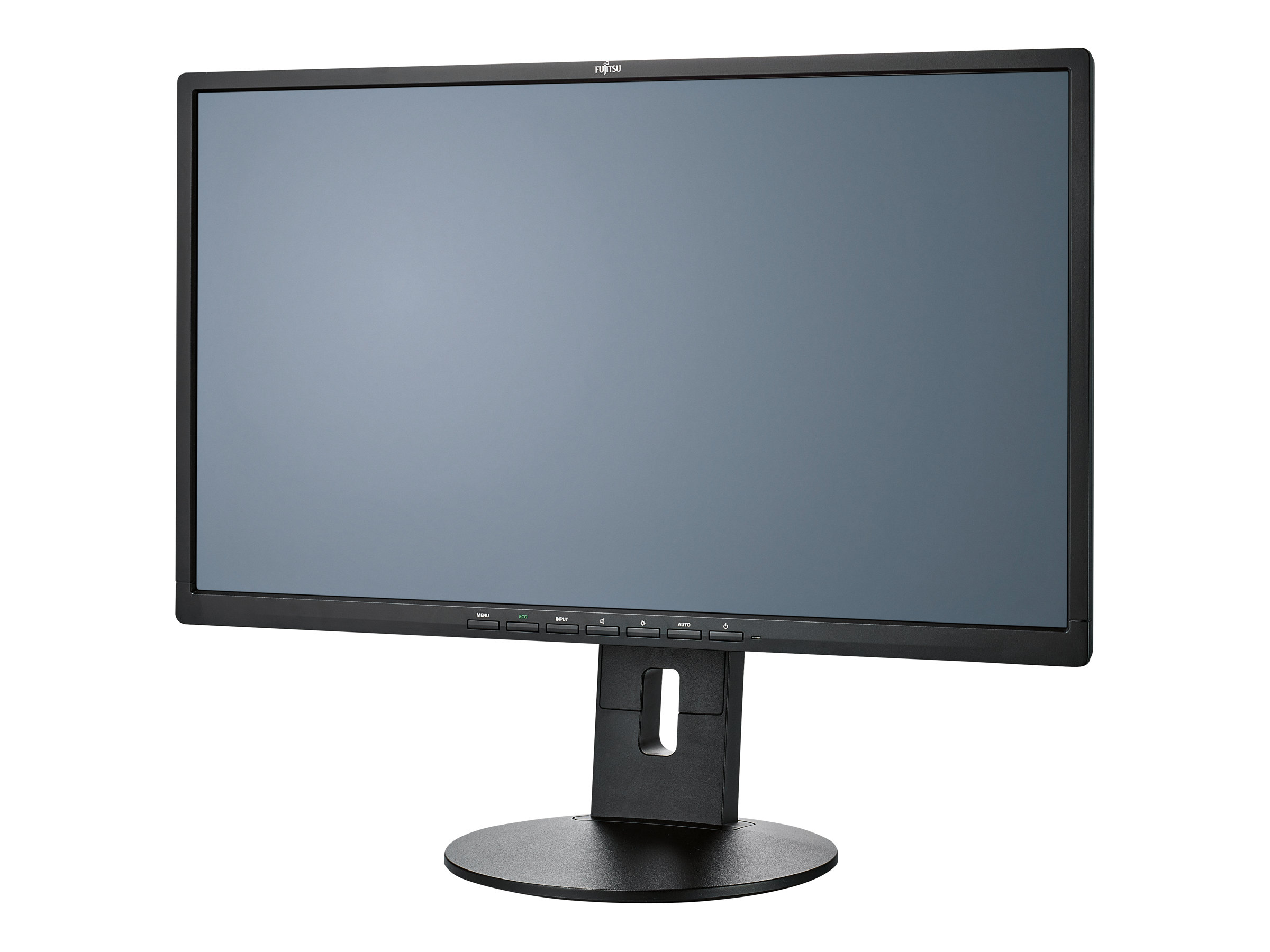

Fujitsu B24-8 TS Pro
- LED monitor
- 23.8"
- 1920 x 1080 Full HD (1080p)
- 250 cd/m²
- 1000:1
- 5 ms
- HDMI, DVI-D, VGA, USB
- speakers
- black
- for Celsius J550, J580, M770, R970, W580; ESPRIMO D538/E94, D556, D757, D958, P558, Q958
| Additional Details | |
|---|---|
| Mfr Part #: | S26361-K1577-V160 |
| SHI Part #: | 31790386 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Ricoh |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Fujitsu B24-8 TS Pro - LED monitor - 23.8" - 1920 x 1080 Full HD (1080p) - 250 cd/m² - 1000:1 - 5 ms - HDMI, DVI-D, VGA, USB - speakers - black - for Celsius J550, J580, M770, R970, W580; ESPRIMO D538/E94, D556, D757, D958, P558, Q958 |
| Manufacturer | Ricoh |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.94 cm |
| Dimensions & Weight / Height | 34.7 cm |
| Dimensions & Weight / Weight | 5.6 kg |
| Dimensions & Weight / Width | 55.3 cm |
| Display / Diagonal Size | 23.8 in |
| Display / Diagonal Size (metric) | 60.5 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1080 |
| Display / Pixel Pitch | 0.2745 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Fujitsu |
| Image Brightness | 250 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Audio | |
| Output Power / Channel | 2 watt |
| Type | Speakers - stereo |
| Compatibility Information | |
| Designed For |
|
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| General | |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED backlight |
| Brightness | 250 cd/m² |
| Built-in Devices | Stereo speakers, USB 2.0 hub |
| Color | Black |
| Color Support | 16.7 million colors |
| Color Temperature | 5000K, 6500K, 7500K |
| Contrast Ratio | 1000:1 / 20000000:1 (dynamic) |
| Controls & Adjustments | Mute, volume, brightness, contrast, H/V position, input select, phase, clock, black level |
| Diagonal Size | 23.8" |
| Dimensions (WxDxH) | 55.3 cm x 22.94 cm x 34.7 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class D |
| Energy Consumption per Year | 28 kWh |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/347767 |
| Features | sRGB color management, HDCP, ECO button, DisplayView |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | 178 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| OSD Languages | Danish, Czech, Chinese (traditional), Chinese (simplified), English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Turkish, Arabic, Japanese |
| Pixel Pitch | 0.2745 mm |
| Response Time | 5 ms (gray-to-gray) |
| Screen Coating | Anti-glare, 3H Hard Coating |
| Vertical Refresh Rate | 56 - 76 Hz |
| Vertical Viewing Angle | 178 |
| Weight | 5.6 kg |
| Mechanical | |
| Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
| Height Adjustment | 150 mm |
| Rotation Angle | 90 |
| Swivel Angle | 340 |
| Tilt Angle | -5/+35 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class B certified, TUV GS, BSMI, EN 60950, SASO, TUV S, CCC, RoHS, WEEE, S Mark, cTUVus, KC, Directive 2004/108/EEC, EAC, RCM, VESA MIS-D 100 C, TUV Rheinland Low Blue Light Certification, TUV Rheinland Flicker Free Certification, ISO9241-307 |
| Features | Security lock slot (cable lock sold separately) |
| Included Accessories | Stand |
| MTBF | 70,000 hour(s) |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| On / Off Switch | No |
| Power Consumption (On mode) | 14.4 W |
| Power Consumption (Typical) | 23 watt |
| Power Consumption SDR (On mode) | 14.4 kWh/1000h |
| Power Consumption Sleep | 0.16 watt |
| Power Consumption Stand by | 0.21 watt |
| Software / System Requirements | |
| Included Software | Drivers & Utilities |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
