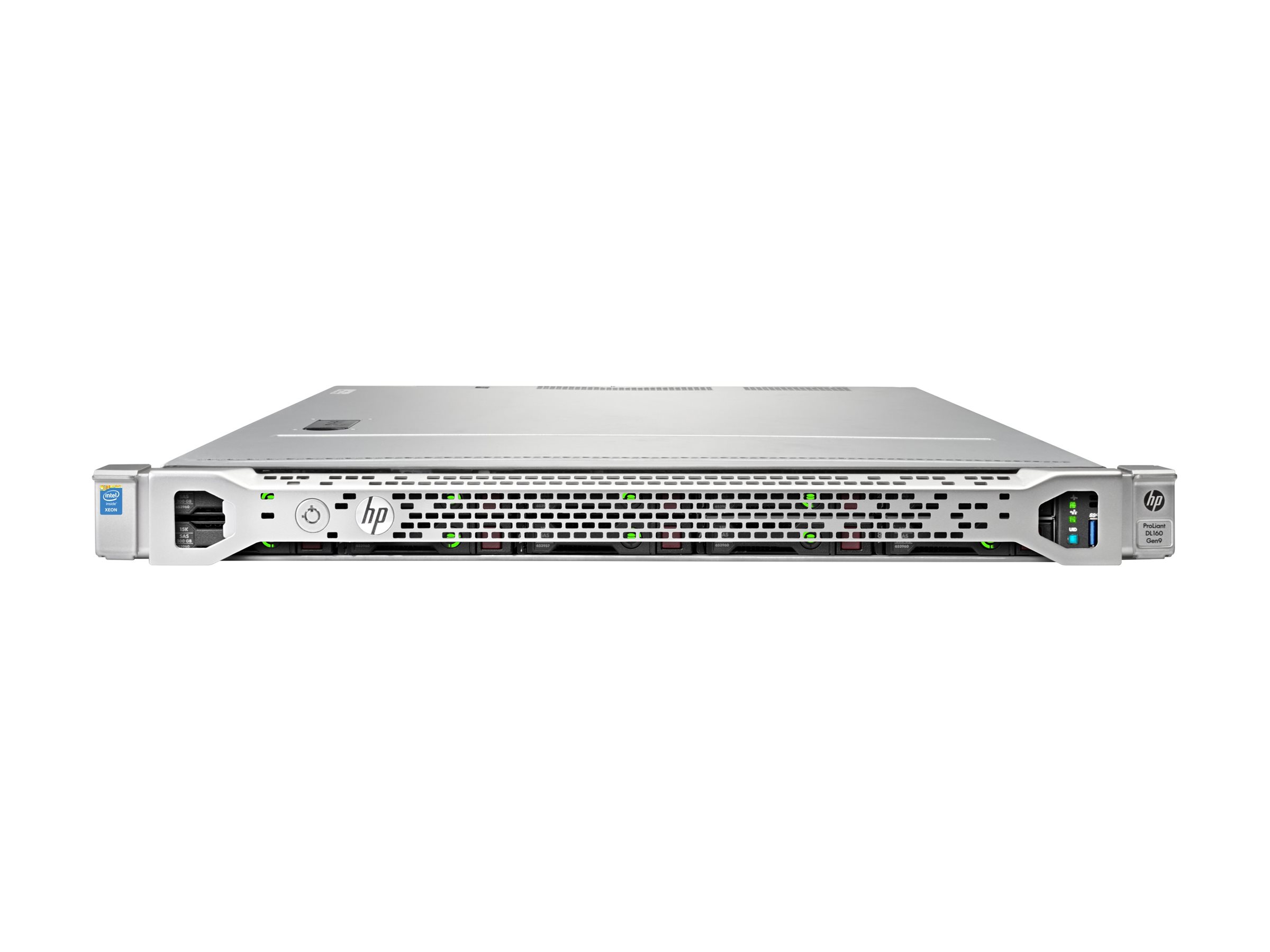

HPE ProLiant DL160 Gen9 Base
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL160 Gen9 Base
- Server
- rack-mountable
- 1U
- 2-way
- 1 x Xeon E5-2620V4 / 2.1 GHz
- RAM 16 GB
- SAS
- hot-swap 2.5" bay(s)
- no HDD
- G200eH2
- GigE
- monitor: none
| Additional Details | |
|---|---|
| Mfr Part #: | 830572-B21 |
| SHI Part #: | 32059471 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
Network Interface Cards
- PCIe 3.0 x8
- 10 Gigabit SFP+ x 2
- for Nimble Storage dHCI Small Solution with HPE ProLiant DL360 Gen10; ProLiant DL360 Gen10
MSRP €1,179.00
€230.00
- PCIe 2.1 x4
- Gigabit Ethernet x 4
- for Nimble Storage dHCI Small Solution with HPE ProLiant DL360 Gen10; ProLiant DL360 Gen10
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL160 Gen9 Base - Server - rack-mountable - 1U - 2-way - 1 x Xeon E5-2620V4 / 2.1 GHz - RAM 16 GB - SAS - hot-swap 2.5" bay(s) - no HDD - G200eH2 - GigE - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SAS |
| Dimensions & Weight / Depth | 60.76 cm |
| Dimensions & Weight / Height | 4.29 cm |
| Dimensions & Weight / Weight | 10 kg |
| Dimensions & Weight / Width | 43.46 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Mainboard / Processor Socket | FCLGA2011-v3 Socket |
| Miscellaneous / Product Color | Silver |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | E5-2620V4 |
| Processor / Type | Xeon |
| RAM / Data Integrity Check | Advanced ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Specification Compliance | PC4-19200 |
| RAM / Memory Speed | 2133 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200eH2 |
| Cache Memory | |
| Cache Per Processor | 20 MB |
| Installed Size | L3 cache - 20 MB |
| Dimensions & Weight | |
| Depth | 60.76 cm |
| Height | 4.29 cm |
| Weight | 10 kg |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission | 35.9 dBA |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200eH2 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Included Accessories | HP Easy Install Rails |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | HP 361i |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Interface (Bus) Type | PCI Express 2.0 x2 |
| Remote Management Controller | Integrated Lights-Out 4 |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Silver |
| Device Type | Power supply |
| Efficiency | 89% |
| Power Provided | 550 watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 2.1 GHz |
| CPU | Intel Xeon E5-2620V4 |
| CPU Qty | 1 |
| CPU Socket | FCLGA2011-v3 Socket |
| Max CPU Qty | 2 |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 8-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 2133 MHz |
| Features | Registered, HP SmartMemory |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 512 GB (max) |
| Memory Specification Compliance | PC4-19200 |
| RAM Supported |
|
| Rated Memory Speed | 2400 MHz |
| Slots | 16 (total) / 15 (empty) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Storage Controller | |
| Channel Qty | 8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Storage Controller Name | HP H240 Smart Host Bus Adapter |
| Type | 1 x RAID - PCIe 3.0 x8 |
