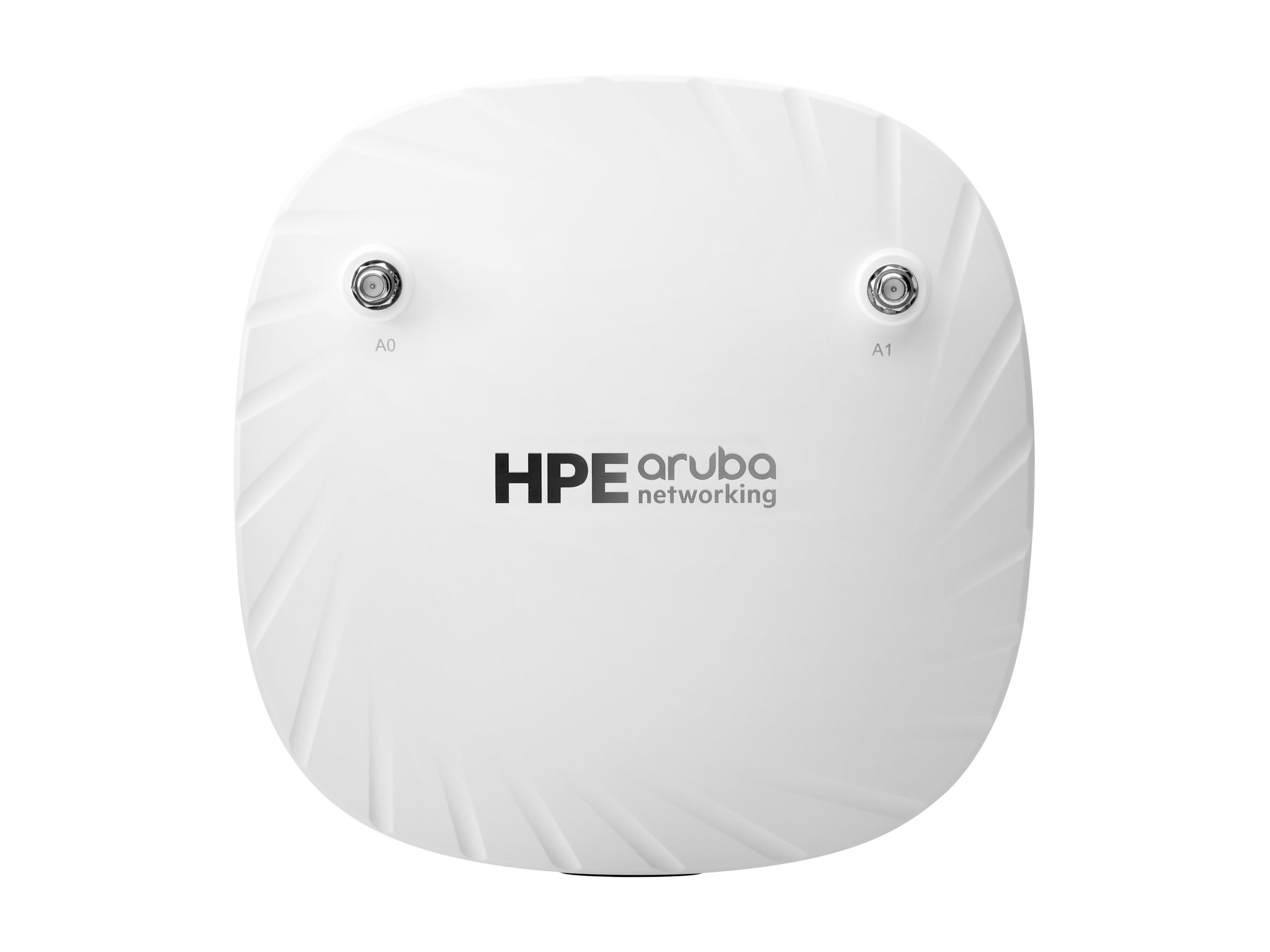

ARUBA AP-504 US UNIFIED APB3G2 ELIGIBLE PL-VL
MSRP€884.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ARUBA AP-504 US UNIFIED APB3G2 ELIGIBLE PL-VL
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €884.00 |
| Mfr Part #: | R2H23A |
| SHI Part #: | 38638694 |
| Category: | Wireless access point |
| UNSPSC: | 43222640 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| Product Line: | HPE - Networking |
Audio/Visual
- Antenna
- tri-band, low-profile
- dipole
- omni-directional
- direct-mount
MSRP €28.00
€15.00
- Antenna
- tri-band
- dipole
- omni-directional
- direct-mount
MSRP €37.00
€19.00
- Antenna
- tri-band, 2x2, cabled
- panel
- directional
MSRP €422.00
€354.00
| General Information | |
|---|---|
| Category | Wireless access point |
| Description | ARUBA AP-504 US UNIFIED APB3G2 ELIGIBLE PL-VL |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €884.00 |
| UNSPSC | 43222640 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.1 cm |
| Dimensions & Weight / Height | 3.7 cm |
| Dimensions & Weight / Weight | 500 g |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1.2 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 16.1 cm |
| Device Type | Wireless access point |
| Height | 3.7 cm |
| Ruggedized Design | Indoor |
| Weight | 500 g |
| Width | 16 cm |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Internet of Things (IoT) Compatible | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2 |
| Included Accessories | Mounting bracket |
| MTBF | 148 years |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Data Transfer Rate | 1.2 Gbps |
| Encryption Algorithm | SSL, WPA, WPA2, WPA3 |
| Features | Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT) |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Performance |
|
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Status Indicators | System, status |
| Power | |
| Power Consumption Operational | 8.9 Watt |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
