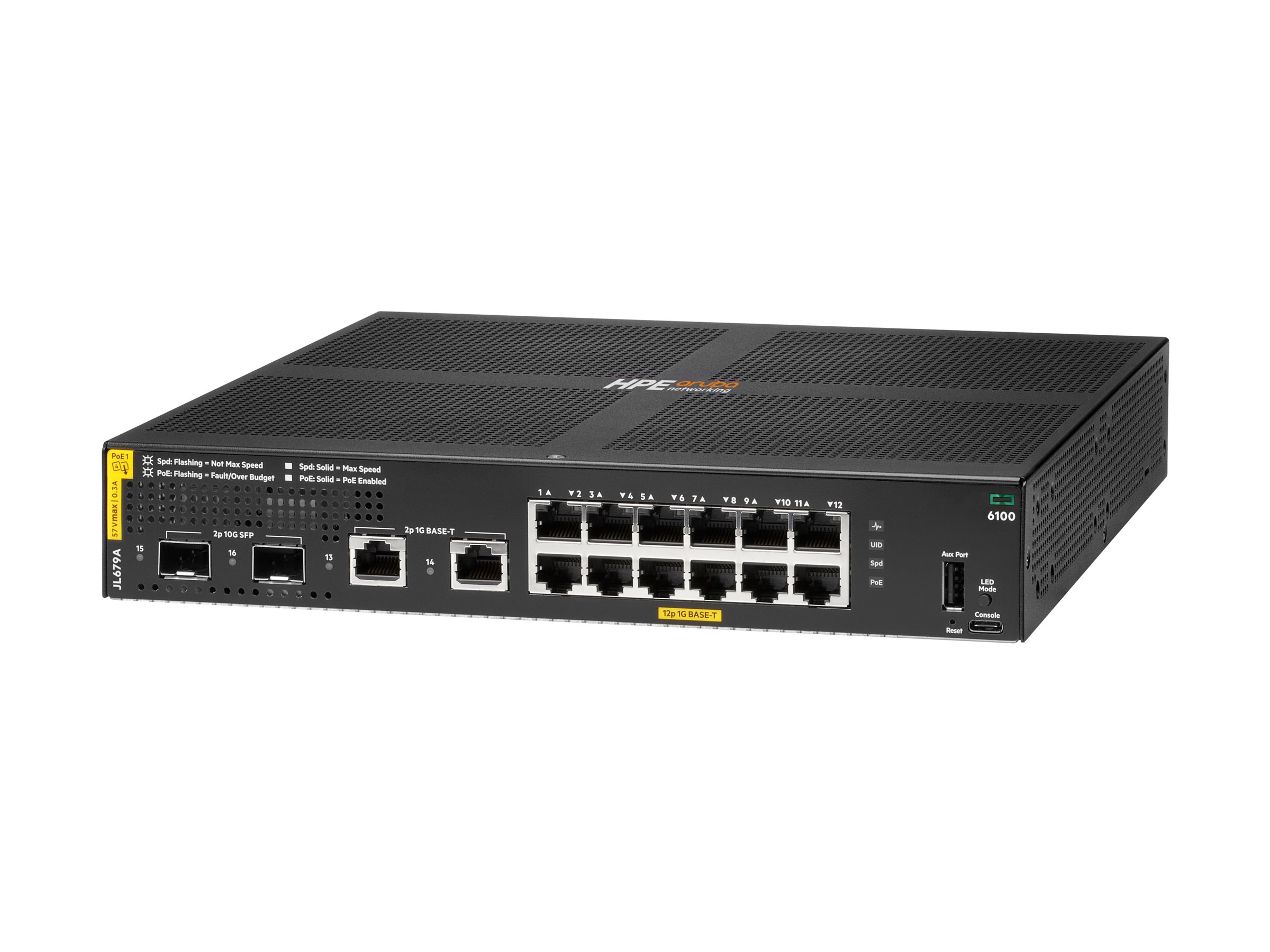

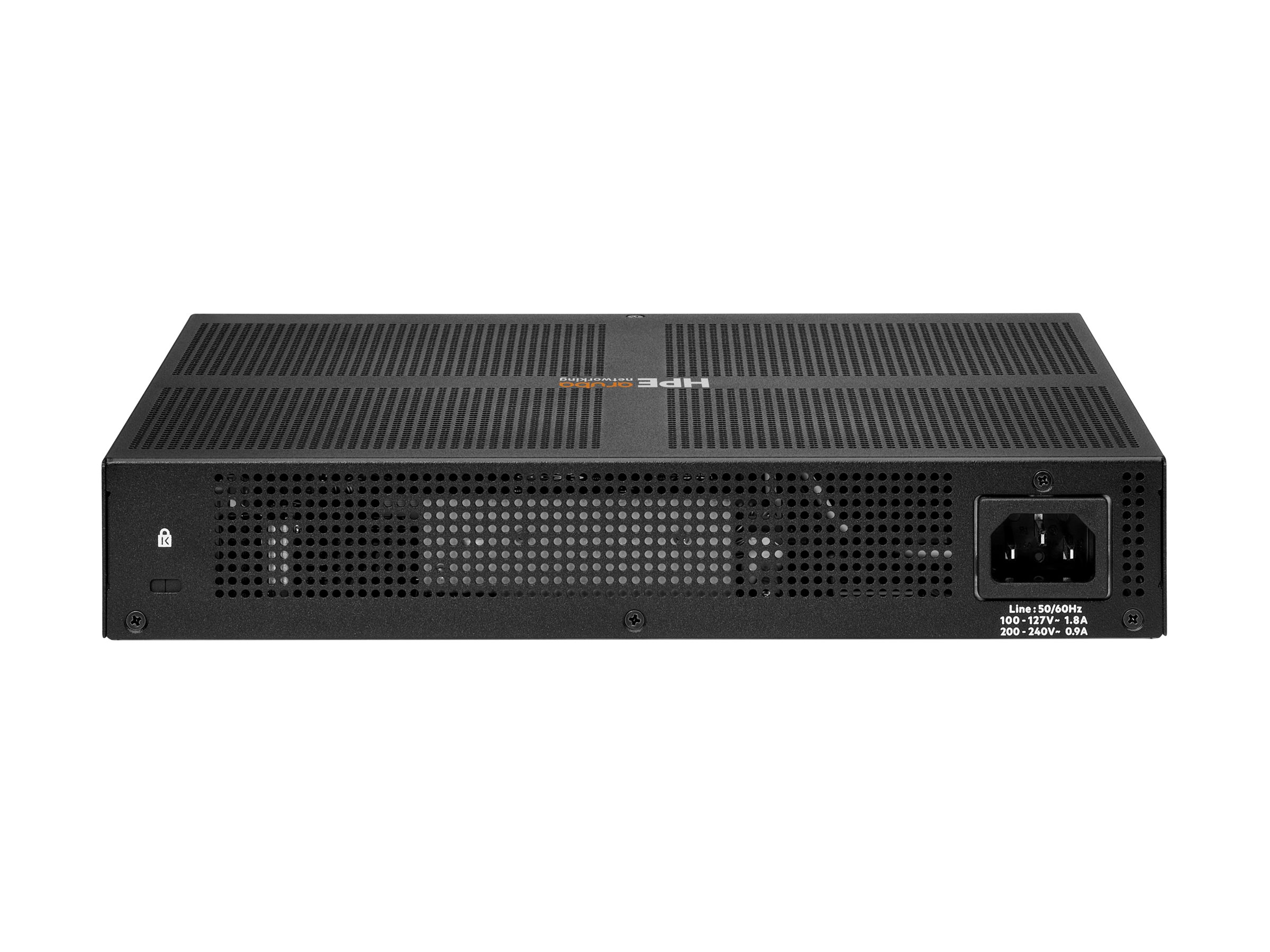

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch
MSRP€1,891.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch
- Switch
- L3
- managed
- 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T
- rack-mountable
- PoE+ (139 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €1,891.00 |
| Mfr Part #: | JL679A#ABA |
| SHI Part #: | 41709703 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
Hubs and Switches
- L3
- managed
- 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
- front and side to back
- rack-mountable
- PoE+ (720 W)
MSRP €9,683.00
€8,123.00
- L3
- managed
- 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
- front and side to back
- rack-mountable
MSRP €8,716.00
€7,312.00
Networking and Security
- SFP+ transceiver module
- 10GbE
- 10GBase-SR
- SFP+ / LC multi-mode
- up to 300 m
- for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360
MSRP €1,657.00
€541.00
- SFP+ transceiver module
- 10GbE
- 10GBase-LR
- SFP+ / LC single-mode
- up to 10 km
- for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360
MSRP €4,008.00
€1,309.00
- 1GbE
- 1000Base-SX
- LC multi-mode
- up to 500 m
- for OfficeConnect 1820; HPE Aruba 6000 12, 6000 24, 6000 48, 6200F 12, 6200M 24, 64XX; CX 8360
MSRP €467.00
€153.00
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch - Switch - L3 - managed - 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T - rack-mountable - PoE+ (139 W) |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €1,891.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25.5 cm |
| Dimensions & Weight / Height | 4.39 cm |
| Dimensions & Weight / Weight | 2.78 kg |
| Dimensions & Weight / Width | 25.4 cm |
| Header / Brand | Aruba |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 16 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 25.5 cm |
| Height | 4.39 cm |
| Weight | 2.78 kg |
| Width | 25.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS |
| Capacity |
|
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Device Type | Switch - 16 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | SSL |
| Features | DNS client, VLAN support, MSTP support, Rapid Reconfiguration of Spanning Tree (RSTP), LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support, fanless |
| Flash Memory | 16 GB |
| MAC Address Table Size | 8192 entries |
| Performance |
|
| PoE Budget | 139 W |
| Ports | 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 x ARM A9: 1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Routing Protocol | IGMPv2, IGMPv3 |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | IEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674 |
| Localization | English / United States |
| Power | |
| Power Consumption Operational | 16 Watt |
| Power Device | Internal power supply |
| Power Provided | 165 Watt 0.9 A |
| Voltage Required | AC 230 V (50/60 Hz) |
