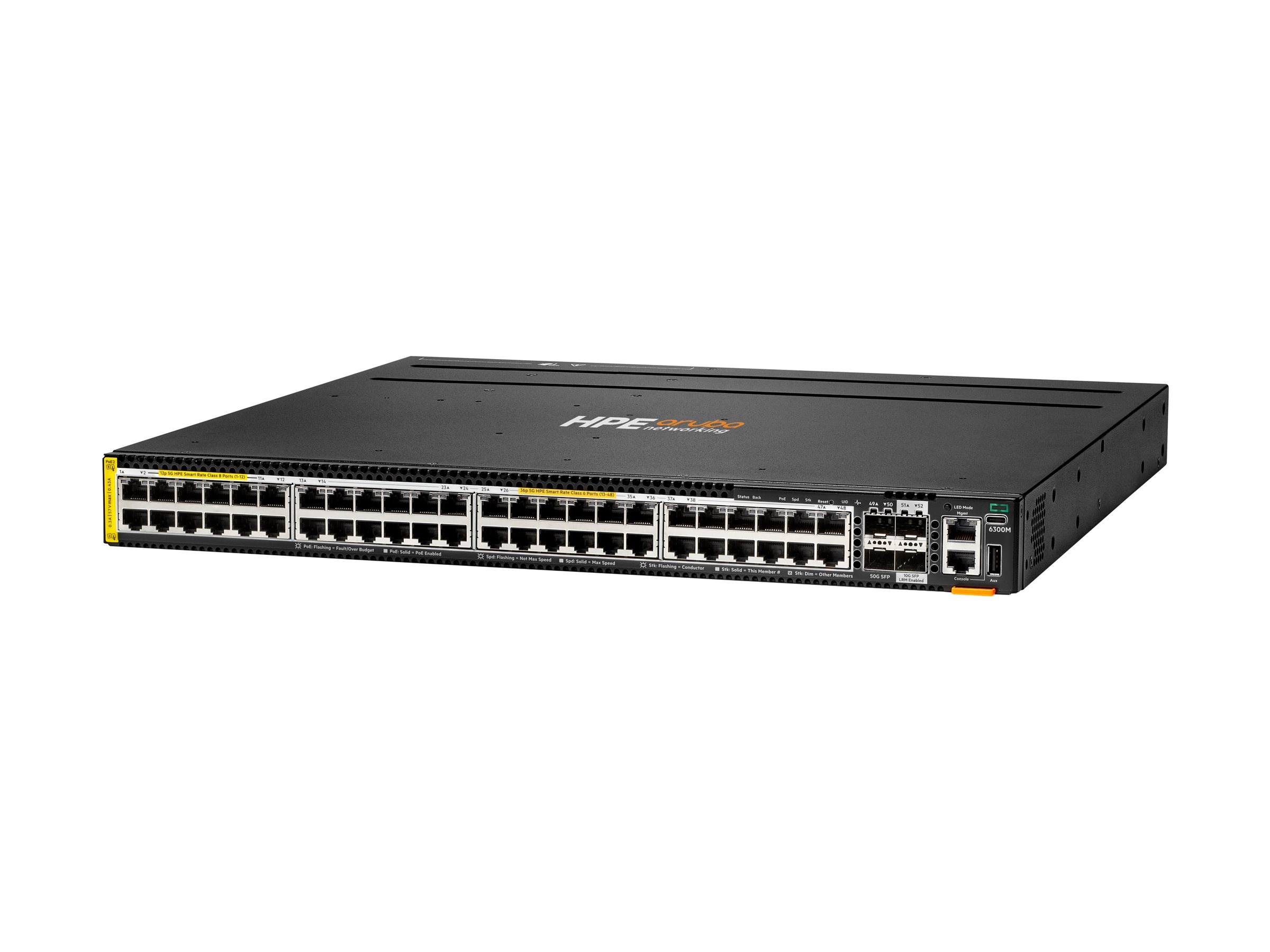

HPE Aruba 6300M - Switch

MSRP€22,181.00
€18,606.00
HPE Aruba 6300M - Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • L3
  • managed
  • 48 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
  • PoE++
HPE Aruba 6300M - Switch
  • L3
  • managed
  • 48 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
  • PoE++
  Additional Details
Price: €18,606.00
MSRP: €22,181.00
Mfr Part #: R8S91A
SHI Part #: 45324009
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Control/Interface Boards

HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-SR
  • LC multi-mode
  • up to 100 m
  • for CX 8360
MSRP €2,360.00 €1,980.00
HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-BX-U
  • LC single-mode
  • up to 10 km
MSRP €4,679.00 €3,925.00

Network Cables

HPE Aruba Direct Attach Copper Cable
HPE Aruba Direct Attach Copper Cable
  • 10GBase direct attach cable
  • SFP+ (M) to SFP+ (M)
  • twinaxial
  • passive
  • for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
MSRP €295.00 €157.00
HPE Aruba - 1000Base direct attach cable
HPE Aruba - 1000Base direct attach cable
  • QSFP28 to QSFP28
  • for HPE Aruba 8325-32C, 8325-48Y8C; CX 10000 Empty Chassis, 8360-12C V2, 8360-16Y2C V2
MSRP €482.00 €436.00
HPE Aruba - 50GBase direct attach cable
HPE Aruba - 50GBase direct attach cable
  • SFP56 to SFP56
  • for HPE Aruba 6300, 6405, 6405 48, 6405 96, 6410; CX 8360
MSRP €383.00 €347.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba 6300M - Switch - L3 - managed - 48 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE++
ManufacturerHewlett Packard Enterprise
MSRP€22,181.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth38.5 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight5.47 kg
Dimensions & Weight / Width44.2 cm
Header / BrandAruba
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth38.5 cm
Height4.4 cm
Weight5.47 kg
Width44.2 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x 10/100/1000 Base-T RJ-45
  • 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56
  • 1 x USB-C
  • 1 x management
  • 1 x USB Type A
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • Switched virtual interfaces (SVIs): 1024
  • IPv4 host table capacity: 49152
  • IPv6 host table capacity: 49152
  • IPv4 routes (Unicast): 61000
  • IPv6 routes (Unicast): 61000
  • IPv4 routes (Multicast): 8192
  • IPv6 routes (Multicast): 8192
  • IGMP groups: 8192
  • MLD groups: 8192
  • IPv4 ACL entries (ingress): 20480
  • IPv6 ACL entries (ingress): 5120
  • MAC ACL entries (ingress): 20480
  • IPv4 ACL entries (egress): 8192
  • IPv6 ACL entries (egress): 2048
  • MAC ACL entries (egress): 8192
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.3af, IEEE 802.3bt
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeRack-mountable 1U
Encryption AlgorithmFIPS 140-2
FeaturesBSR Mechanism, auto-uplink (auto MDI/MDI-X), VLAN support, Syslog support, High Availability, PVST, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, fan tray, CoS, packet storm protection, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB
Flash Memory32 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size32768 entries
Performance
  • Switching capacity: 496 Gbps
  • Throughput: 369 Mpps
  • Latency (1 Gbps): 2.28 µs
  • Latency (10 Gbps): 1.46 µs
  • Latency (25 Gbps): 1.9 µs
  • Latency (50 Gbps): 3.49 µs
  • Stacking bandwidth: 200 Gbps
Ports48 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE++
Processor1 x ARM: 1.8 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolRMON, Telnet, SNMP 3, SNMP, SNMP 2c, TFTP, SSH, CLI, SFTP
Routing ProtocolBGP-4, IGMPv2, IGMPv3, IGMP, VRRP, OSPFv2, OSPFv3, MSDP, Bidirectional Forwarding Detection (BFD), policy-based routing (PBR), MLD, MSTP, RSTP, STP, GRE, BGP, OSPF, ECMP, PIM-DM, PIM-SM
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 62368-1:2014+A11:2017, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, IEC 60950-1:2005, IEC 62368-1: 2014, CNS 14336-1, EN 55032:2015+AC:2016 Class A, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, CISPR 32:2015+COR1:2016, ICES-003 Class A, VCCI Class A, CISPR 35:2016 Class A, EN 60825-1:2007, EN 61000-3-2, EN 61000-3-3, IEC 60825-1:2007 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Rack Mounting KitIncluded
Power
Installed Qty1
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided75 Watt
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Voltage Required(50/60 Hz)
