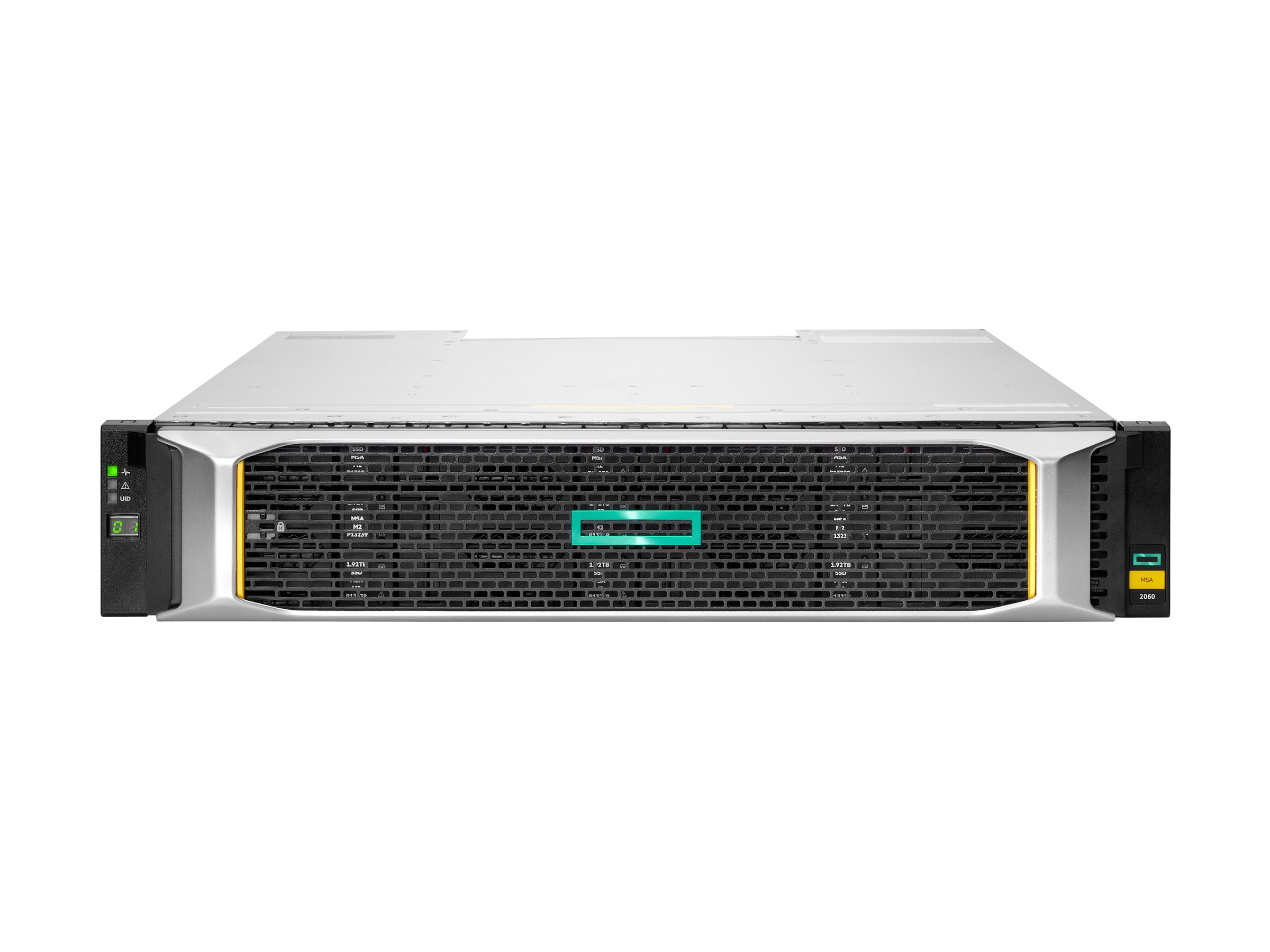

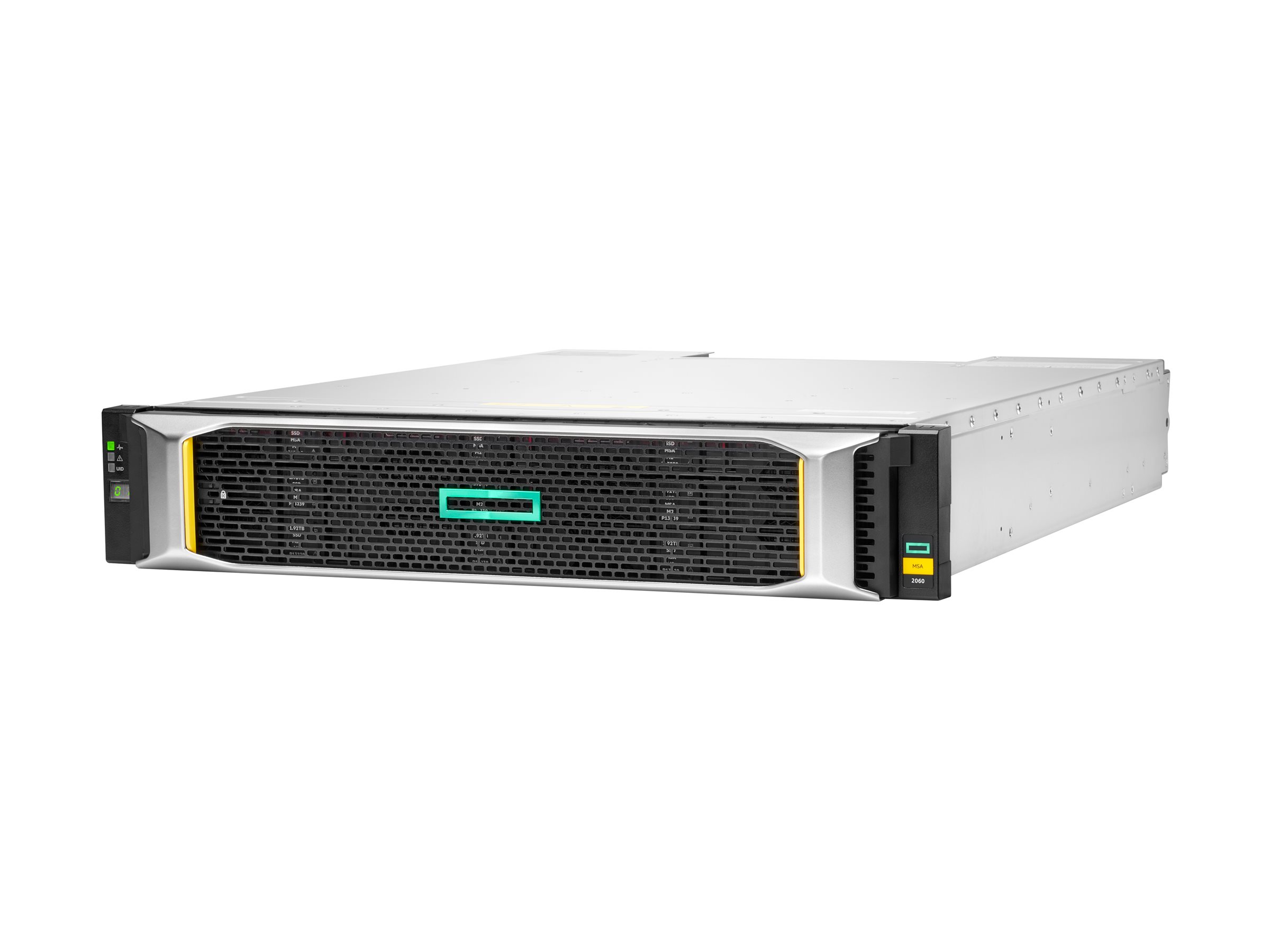

HPE Modular Smart Array 2060 12Gb SAS LFF Storage
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Modular Smart Array 2060 12Gb SAS LFF Storage
- Hard drive array
- 56 TB
- 12 bays (SAS-3)
- HDD 8 TB x 7
- SAS 12Gb/s (external)
- rack-mountable
- 2U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | P84175-B25 |
| SHI Part #: | 50608398 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | HPE Modular Smart Array 2060 12Gb SAS LFF Storage - Hard drive array - 56 TB - 12 bays (SAS-3) - HDD 8 TB x 7 - SAS 12Gb/s (external) - rack-mountable - 2U |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €11,538.00 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.8 cm |
| Dimensions & Weight / Height | 8.9 cm |
| Dimensions & Weight / Weight | 5 kg |
| Dimensions & Weight / Width | 44.5 cm |
| Hard Drive / Capacity | 8 TB |
| Hard Drive / Interface | Serial Attached SCSI 3 |
| Hard Drive / Interface Type | Serial Attached SCSI 3 |
| Header / Brand | HPE |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | Serial Attached SCSI 3 |
| Storage / HDD Array External Interface Class | Serial Attached SCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Total Array Capacity | 56 TB |
| Storage / Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 7 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SAS-3 |
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 8.9 cm |
| Weight | 5 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | Up to 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 5 (free) - 3.5" LFF |
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Hard Drive | |
| Capacity | 7 x 8 TB |
| Interface Type | SAS 12Gb/s |
| Type | HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Compliant Standards | ASHRAE Class A3, UL, CSA 62368-1, IEC 60950-1, ErP Lot 9, VCCI Class A, FCC Class A certified, ICES-003 Class A, EN55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035 Class A, CISPR 24 Class A, AS/NZS CISPR 32 Class A, CNS 13438, KN32 Class A, RoHS, China RoHS, WEEE |
| Features | SMTP support, SNMP support |
| Power | |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Processor | |
| CPU | No CPU |
| Storage | |
| HDD Array External Interface | SAS 12Gb/s |
| Total Array Capacity | 56 TB |
| Storage Controller | |
| Data Transfer Rate | 1.2 GBps |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, MSA-DP+ |
| Type | RAID (SAS-3) |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Server 2016, VMware vSphere 6.7 (ESXi), Red Hat Enterprise Linux 8.0, SUSE Linux Enterprise Server 15, Oracle Linux, Citrix Hypervisor, HP-UX |
