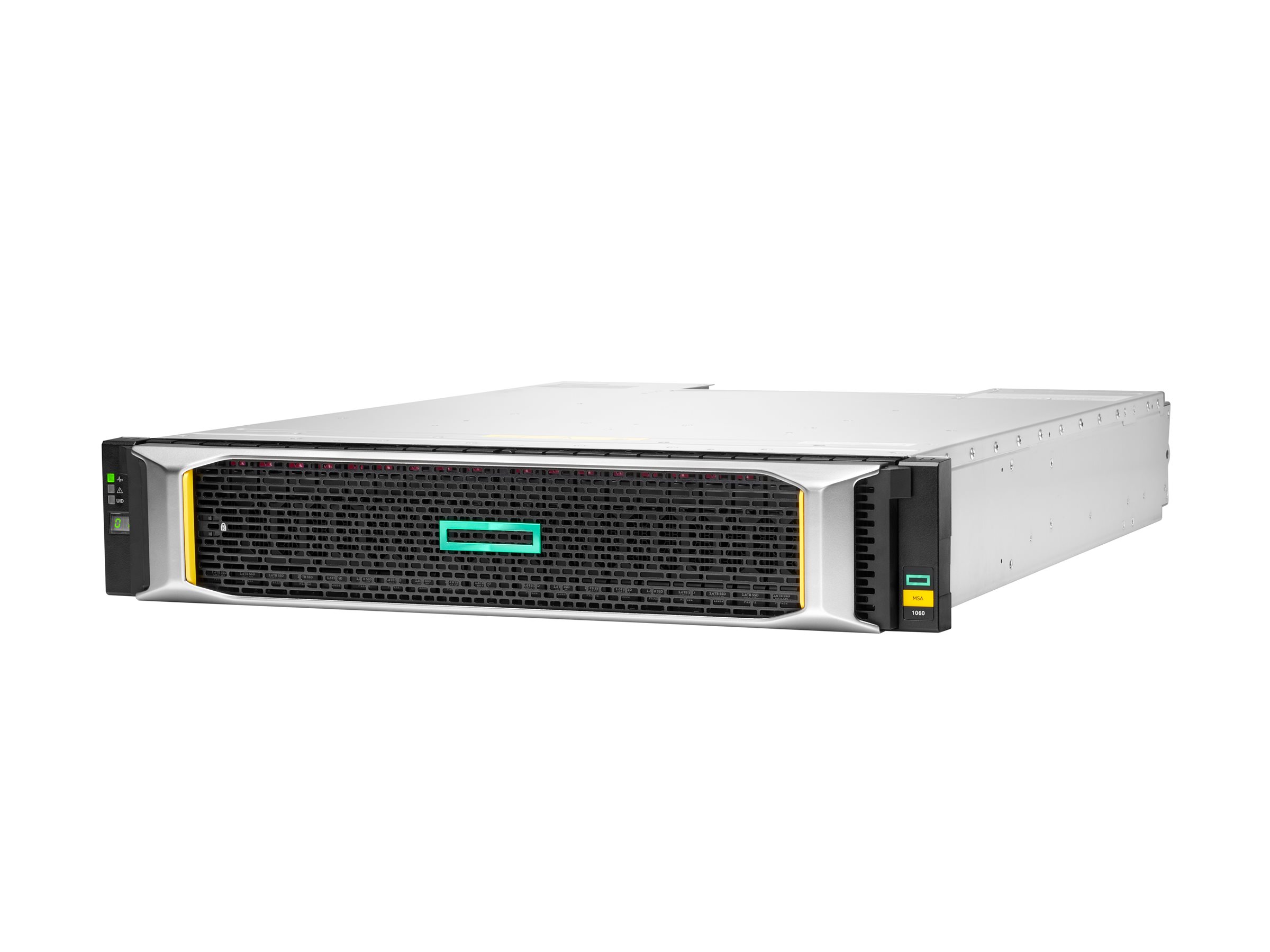

HPE Modular Smart Array 1060 SFF 2x12Gb SAS 2-port Controller Storage Array
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Modular Smart Array 1060 SFF 2x12Gb SAS 2-port Controller Storage Array
- Solid state / hard drive array
- 0 TB
- 24 bays (SAS-3)
- SAS 12Gb/s (external)
- rack-mountable
- 2U
- Smart Choice
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | P89130-B25 |
| SHI Part #: | 51302800 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | HPE Modular Smart Array 1060 SFF 2x12Gb SAS 2-port Controller Storage Array - Solid state / hard drive array - 0 TB - 24 bays (SAS-3) - SAS 12Gb/s (external) - rack-mountable - 2U - Smart Choice |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €5,275.00 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.8 cm |
| Dimensions & Weight / Height | 8.9 cm |
| Dimensions & Weight / Weight | 5 kg |
| Dimensions & Weight / Width | 48.3 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | Serial Attached SCSI 3 |
| Storage / HDD Array External Interface Class | Serial Attached SCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Total Array Capacity | 0 TB |
| Storage / Type |
|
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 8.9 cm |
| Weight | 5 kg |
| Width | 48.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | Up to 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) - 2.5" SFF |
| Interfaces |
|
| General | |
| Device Type | Solid state / hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Compliant Standards | ASHRAE Class A3, UL/CSA 62368-1, EN 62368-1, IEC 60950-1, VCCI Class A, FCC Class A certified, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 32 Class A, CNS 13438 Class A, KN32 Class A, RoHS, China RoHS, WEEE, EU Lot 9 |
| Included Accessories | Rack mounting kit, 2 x 1.5m PDU cords (IEC C14) |
| Manufacturer Selling Program | HPE Smart Choice |
| Power | |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 580 watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Processor | |
| CPU | No CPU |
| Storage | |
| HDD Array External Interface | SAS 12Gb/s |
| Max Supported Capacity | 737.28 TB |
| Total Array Capacity | 0 TB |
| Storage Controller | |
| Data Transfer Rate | 1.2 GBps |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, MSA-DP+ |
| Type | RAID (SAS-3) |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| System Requirements | |
| OS Required | Microsoft Windows Server 2022, Microsoft Windows Server 2019, Microsoft Windows Server 2016, VMware vSphere 6.7 (ESXi), Red Hat Linux 8.0, SUSE Linux Enterprise Server 15 |
