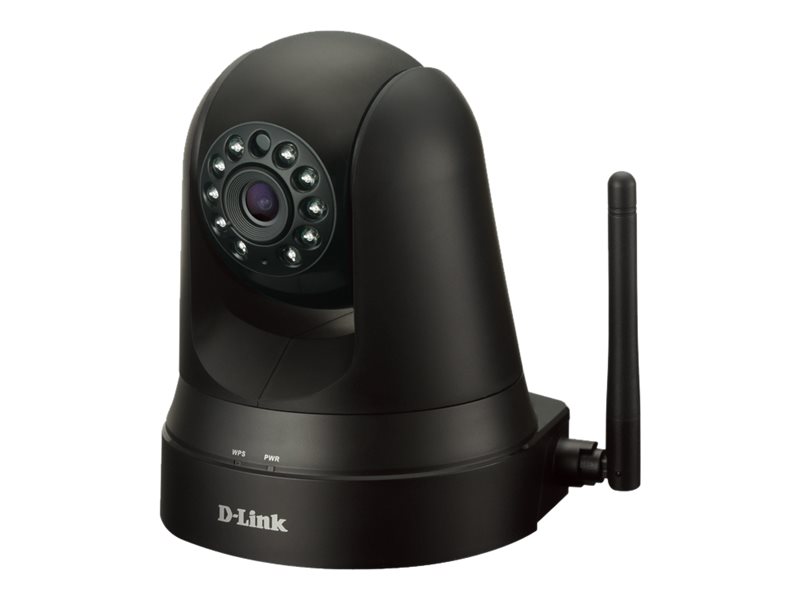

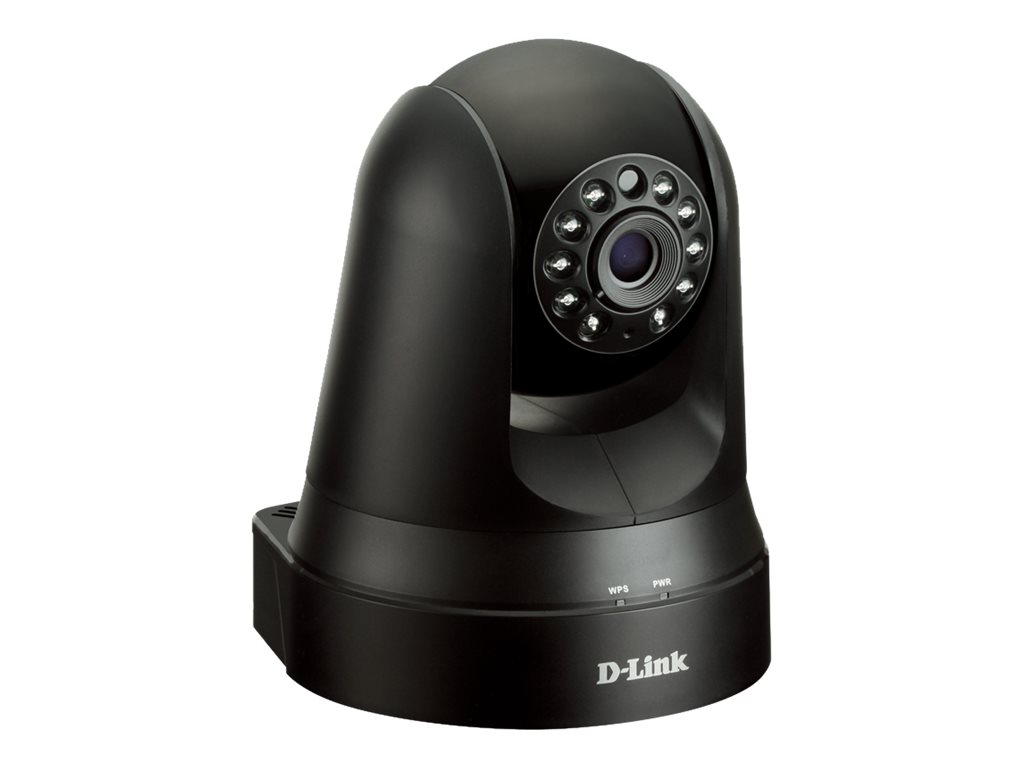

D-Link DCS 5010L - Network surveillance camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
D-Link DCS 5010L - Network surveillance camera
- pan / tilt
- color (Day&Night)
- 640 x 480
- fixed focal
- audio
- wireless
- Wi-Fi
- LAN 10/100
- MJPEG, H.264
- DC 12 V
| Additional Details | |
|---|---|
| Mfr Part #: | DCS-5010L |
| SHI Part #: | 27134096 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | D-Link |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | D-Link DCS 5010L - Network surveillance camera - pan / tilt - color (Day&Night) - 640 x 480 - fixed focal - audio - wireless - Wi-Fi - LAN 10/100 - MJPEG, H.264 - DC 12 V |
| Manufacturer | D-Link |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.235 cm |
| Dimensions & Weight / Height | 13.36 cm |
| Dimensions & Weight / Weight | 292.4 g |
| Dimensions & Weight / Width | 10.127 cm |
| Header / Brand | D-Link |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 640 x 480, 320 x 240, 160 x 112 |
| Digital Video Format | MJPEG, H.264 |
| Digital Zoom | 4 |
| Exposure Range | 1/15 sec - 1/15000 sec |
| Features | Date/time stamp, saturation control, brightness control, contrast control, image flip, image mirror, automatic electronic shutter, Motion Detection Technology, infrared cut filter, Wi-Fi Protected Setup (WPS), reset button, auto gain control, auto white balance |
| Flash Memory | 8 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 8 m |
| Infrared LEDs | 10 |
| Max Digital Video Resolution | 640 x 480 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 64 MB |
| Supported Image Formats | JPEG |
| Type | Color - Day&Night - pan / tilt |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 85% (non-condensing) |
| Expansion / Connectivity | |
| Interfaces Details | 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
| General | |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired, wireless |
| Depth | 10.235 cm |
| Device Type | Network surveillance camera |
| Height | 13.36 cm |
| Weight | 292.4 g |
| Width | 10.127 cm |
| Image Sensor | |
| Type | CMOS 1/5" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, UPnP, IPv4, PPPoE, LLTD |
| Lens Construction | |
| Focal Length | 2.2 mm |
| Horizontal Field of View (degree) | 66.22 |
| Lens Iris | F/2.0 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 49.08 |
| Miscellaneous | |
| Cables Included | 1 x network cable - external |
| Compliant Standards | FCC Class B certified, C-Tick, IC, LVD |
| Included Accessories | Mounting kit |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 16 |
| Power | |
| Power Device | Power adapter - external AC 120/230 V (50/60 Hz) 8.64 Watt |
| Power Requirements | DC 12 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP SP2, Apple MacOS X 10.5 or later, Microsoft Windows Vista / 7 / 8 |
| System Requirements Details | Windows XP SP2 or later - 1.3 GHz - RAM 128 MB |
| Tilting | |
| Range (degree) | -25 to +95 |
| Speed (degree/sec) | Up to 16 |
