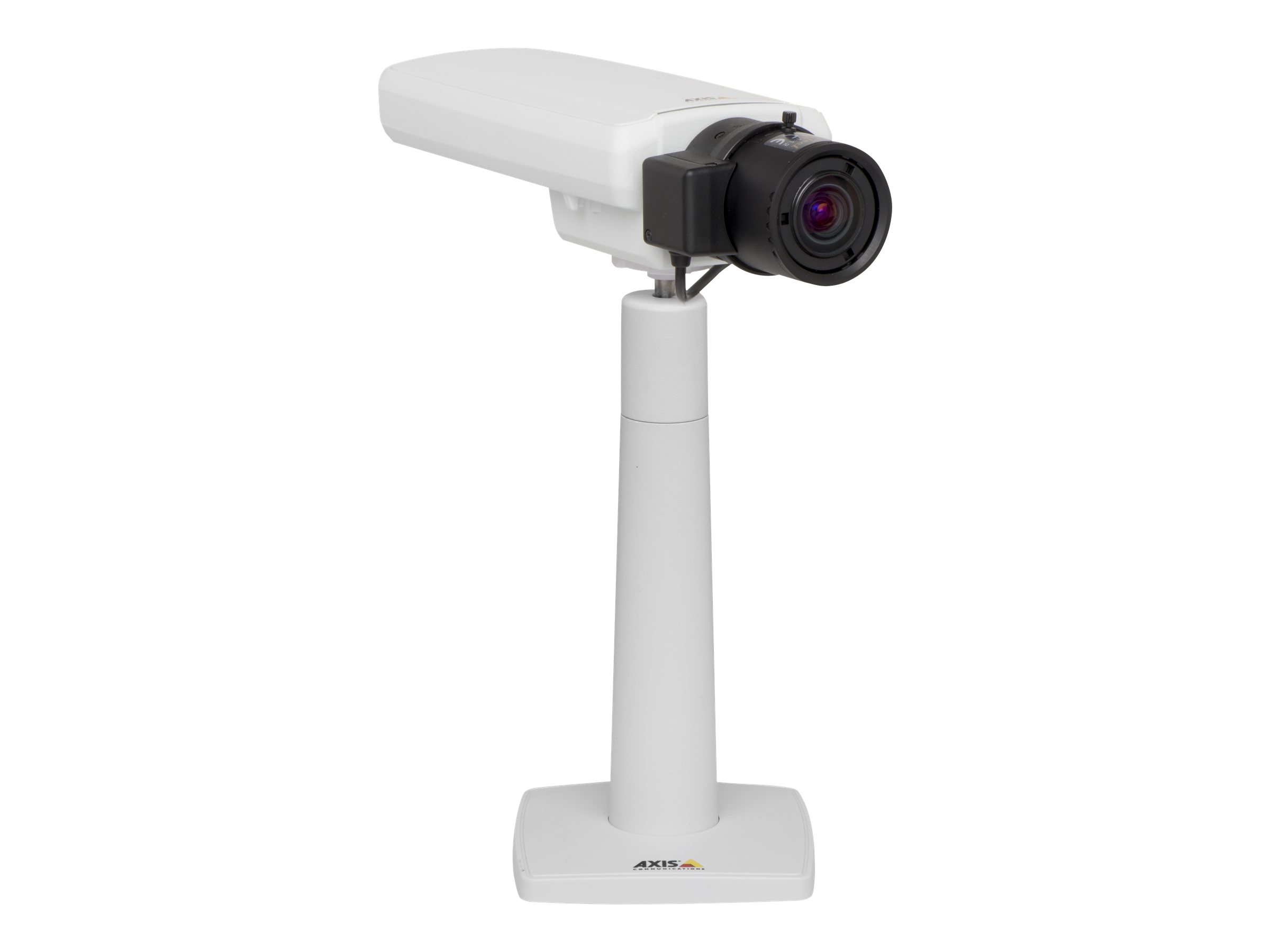

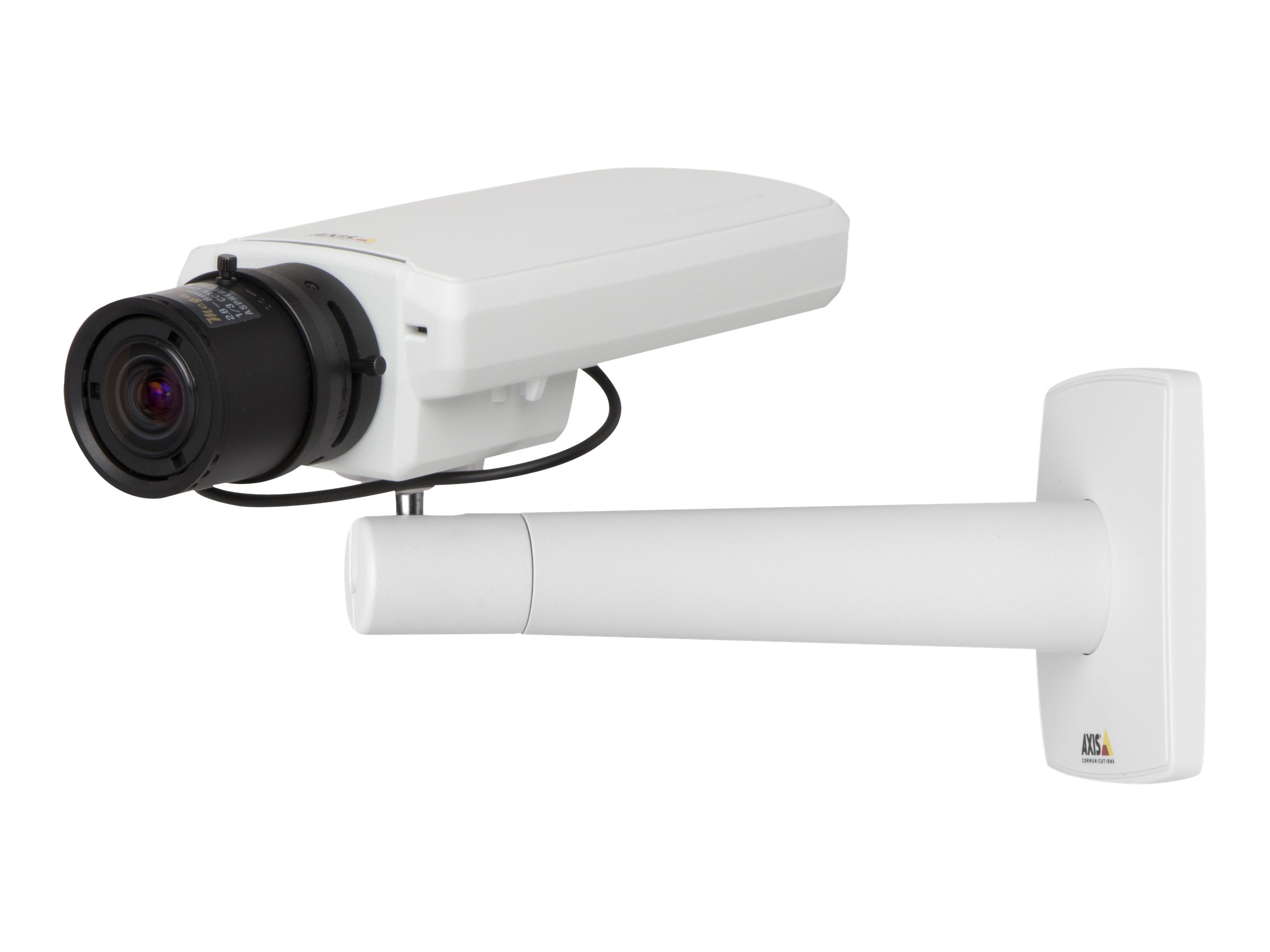

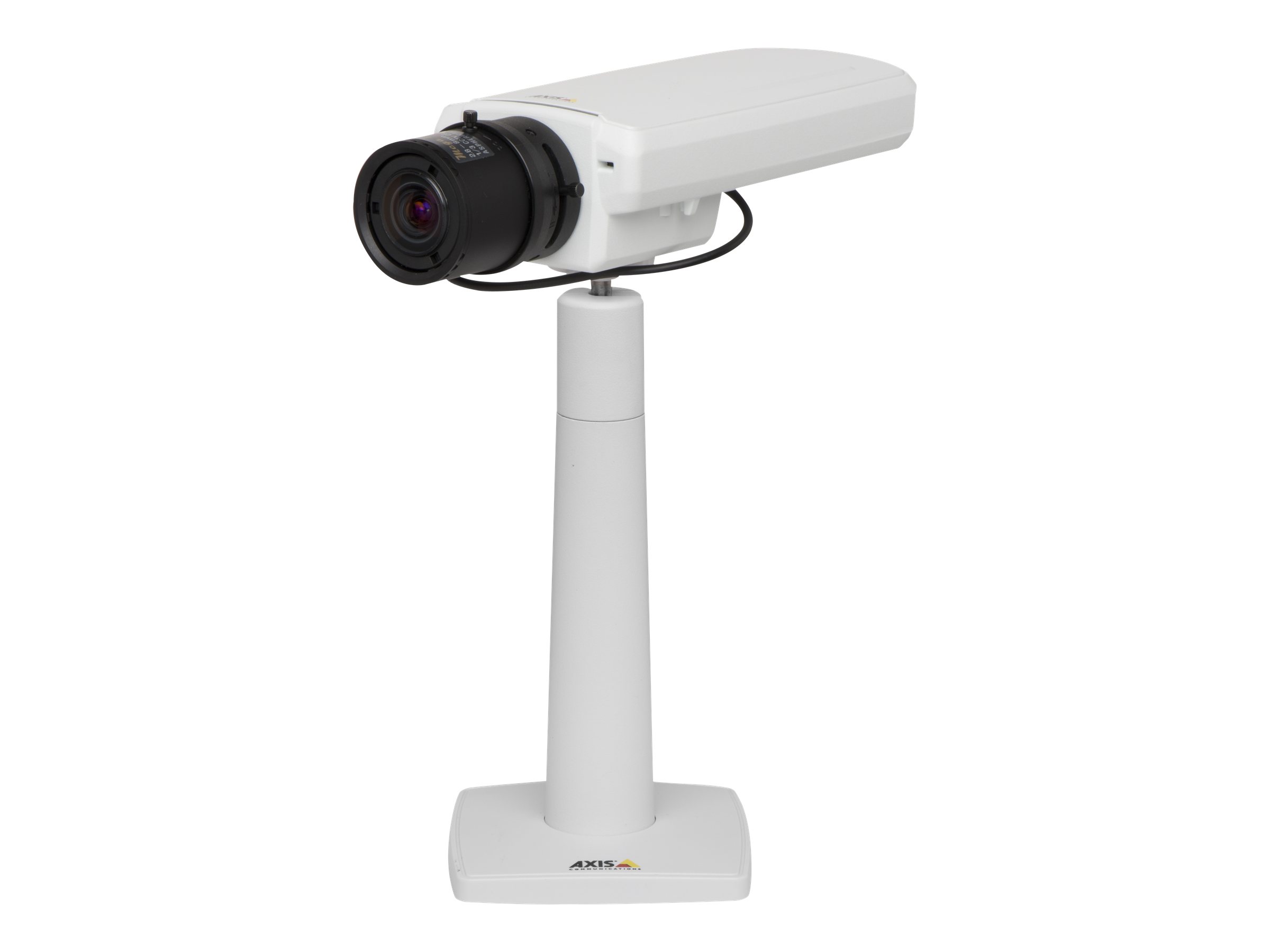

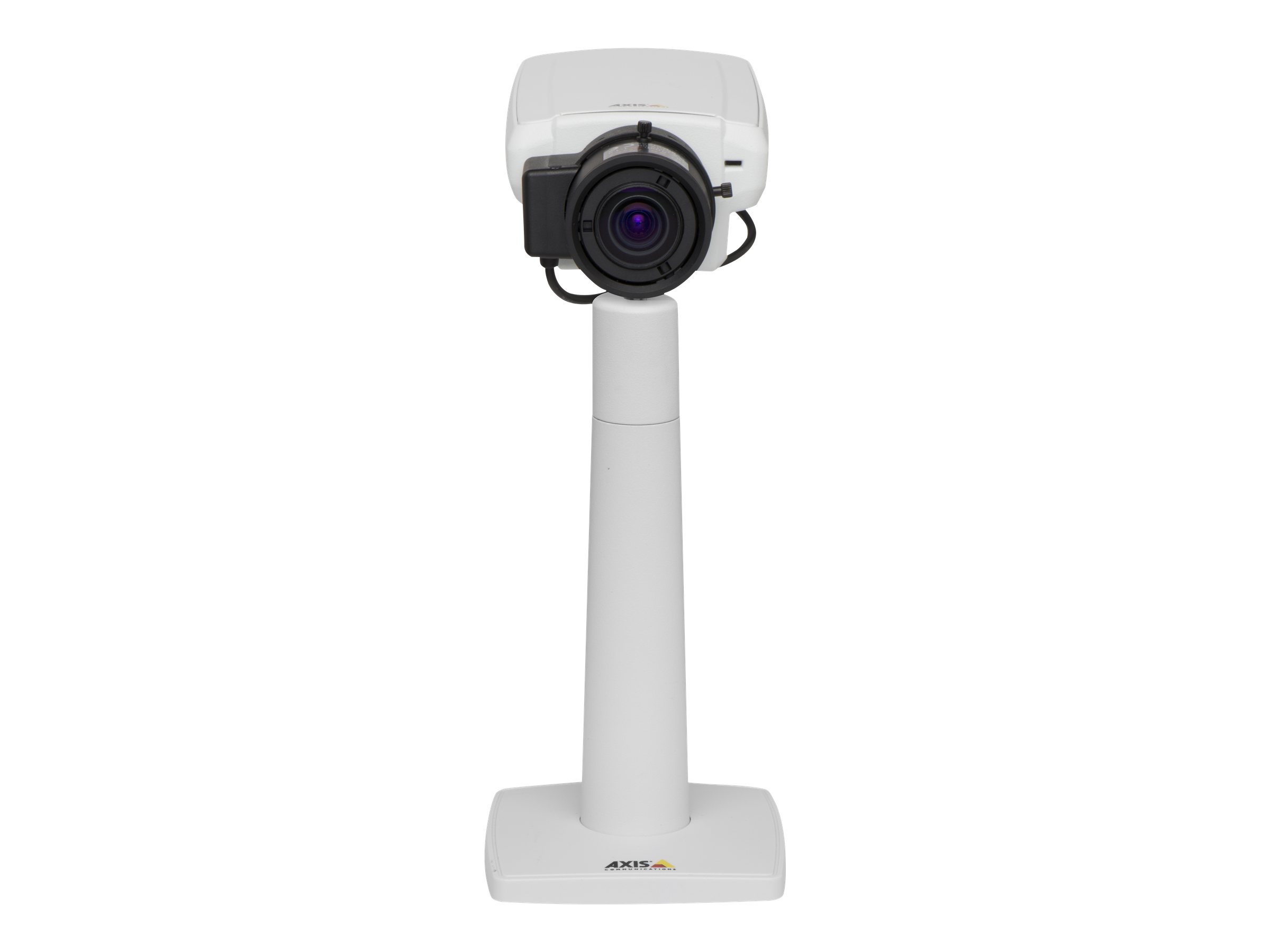

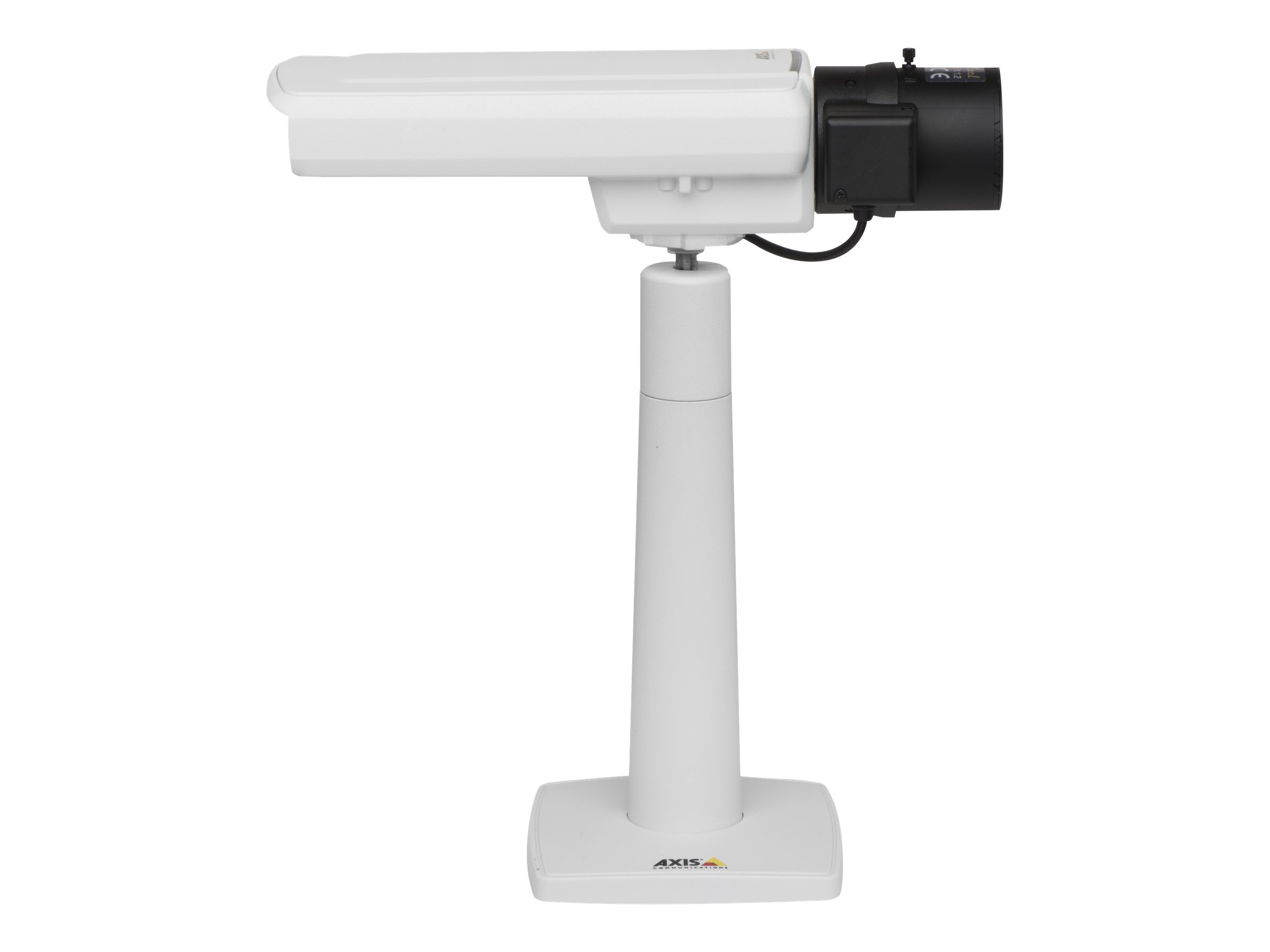

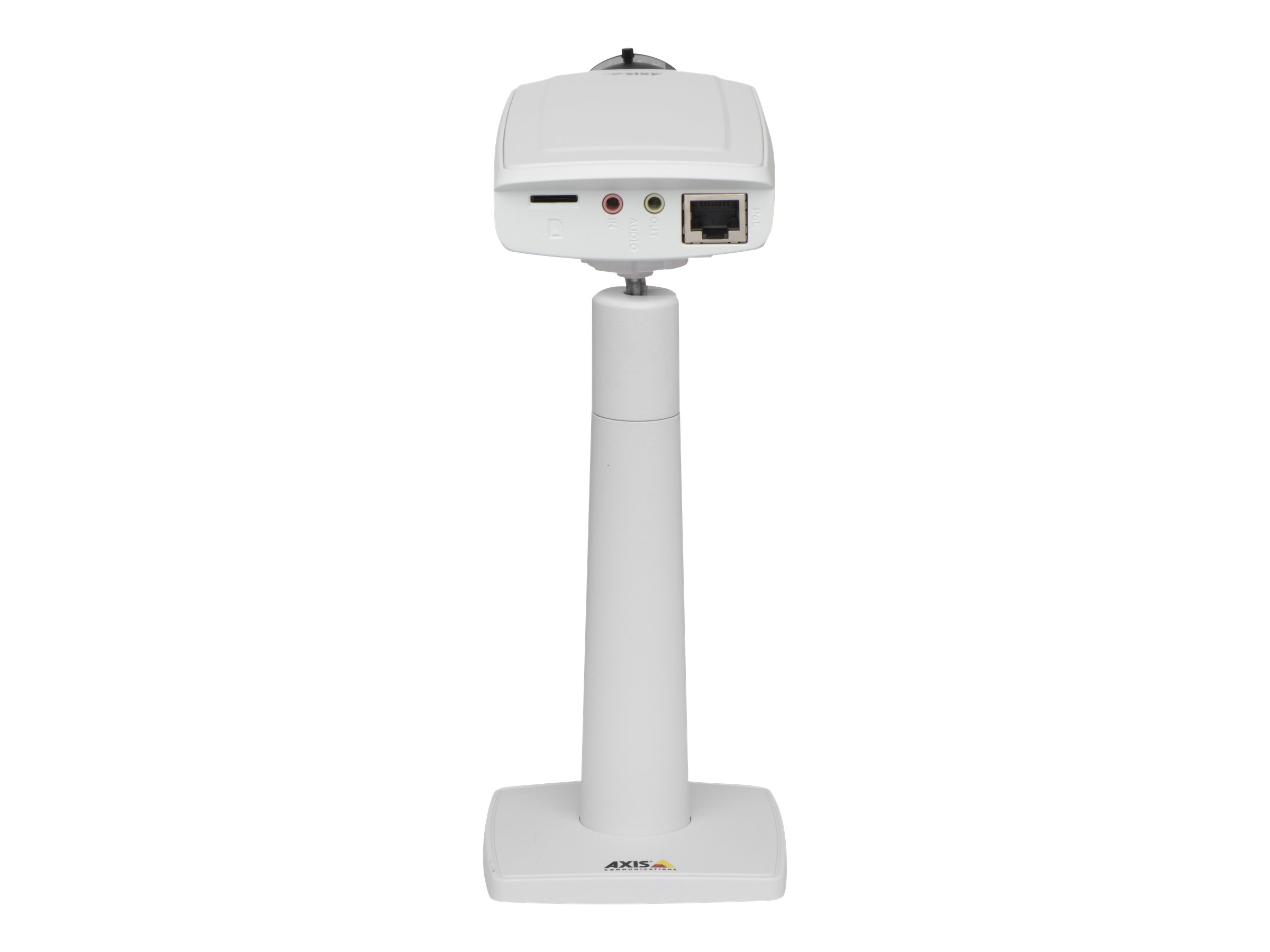

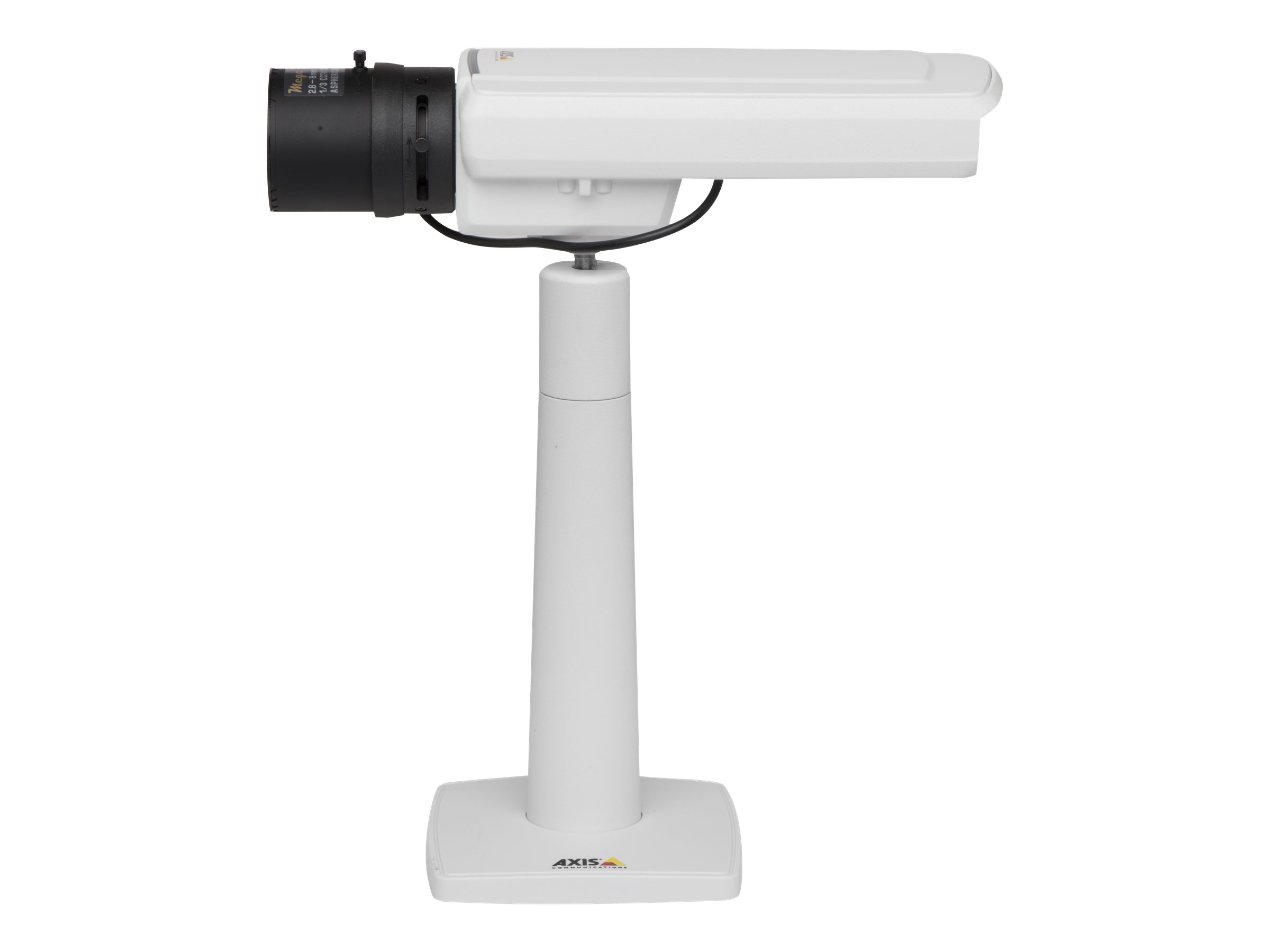

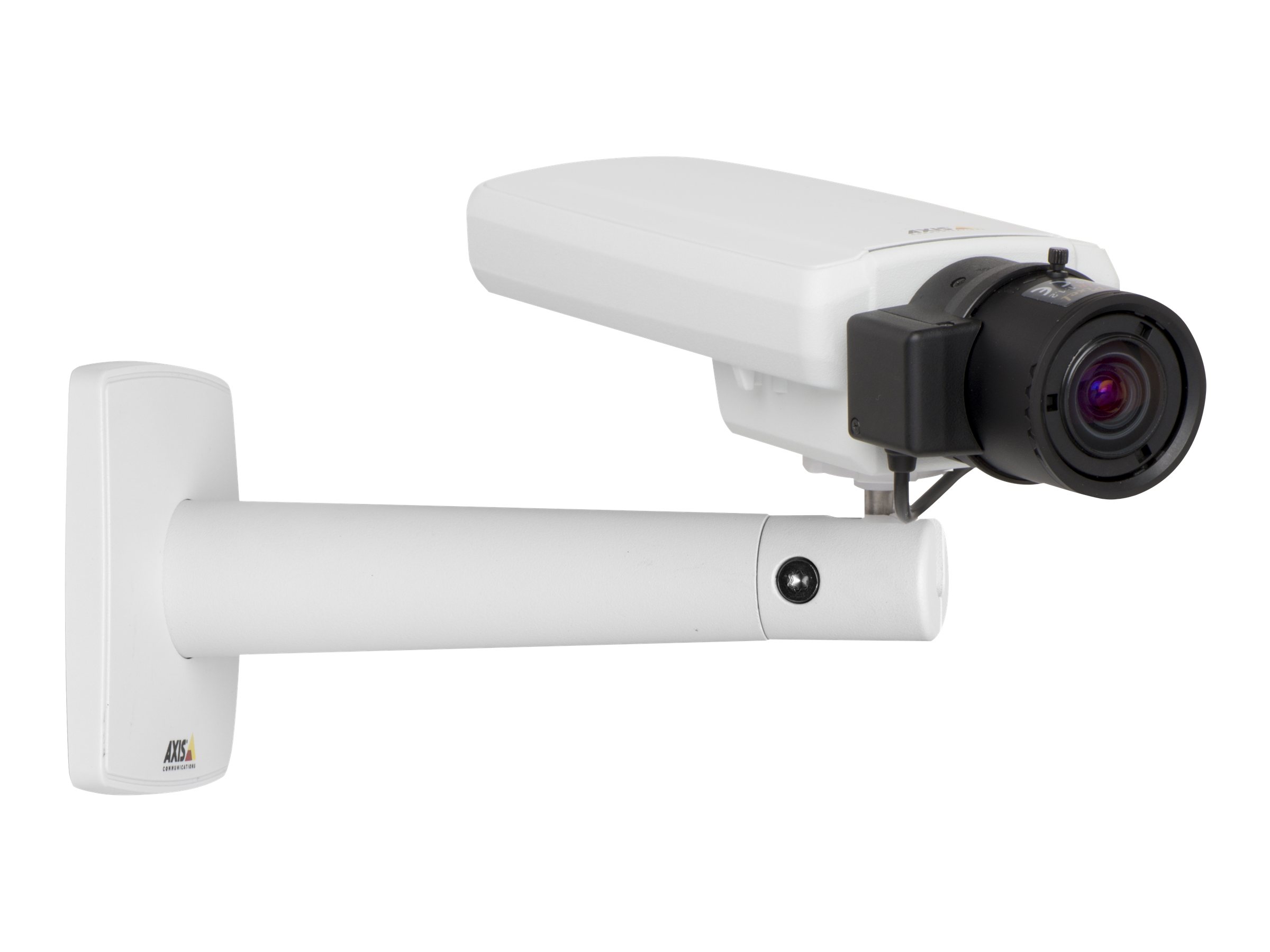

AXIS P1357 Network Camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS P1357 Network Camera
- Network surveillance camera
- color (Day&Night)
- 5 MP
- 2592 x 1944
- 1080p
- CS-mount
- auto iris
- vari-focal
- audio
- LAN 10/100
- MJPEG, H.264, AVC
- DC 8
- 28 V / PoE
| Additional Details | |
|---|---|
| Mfr Part #: | 0526-001 |
| SHI Part #: | 26729701 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS P1357 Network Camera - Network surveillance camera - color (Day&Night) - 5 MP - 2592 x 1944 - 1080p - CS-mount - auto iris - vari-focal - audio - LAN 10/100 - MJPEG, H.264, AVC - DC 8 - 28 V / PoE |
| Manufacturer | Axis Communications |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.1 cm |
| Dimensions & Weight / Height | 4.6 cm |
| Dimensions & Weight / Weight | 630 g |
| Dimensions & Weight / Width | 7.8 cm |
| Header / Brand | Axis |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 160 x 90 |
| Digital Video Format | MJPEG, H.264, AVC |
| Exposure Range | 2 sec - 1/24000 sec |
| Features | Motion sensor, Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, color control, progressive scanning, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, infrared cut filter, Privacy Mask Function, multi-streaming, active tampering alarm, digital PTZ function, password protection, Audio Detection |
| Flash Memory | 128 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| RAM | 512 MB |
| Type | Color - Day&Night - fixed |
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card |
| General | |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 15.1 cm |
| Device Type | Network surveillance camera |
| Height | 4.6 cm |
| Weight | 630 g |
| Width | 7.8 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/3.2" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Control Interface | RS-485, RS-422 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSL, QOS, CIFS |
| Lens Construction | |
| Focal Length | 2.8 mm - 8 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 32 - 92 |
| Lens Iris | F/1.2 auto iris (P-Iris) |
| Optical Zoom | 2.9 x |
| Type | CS-mount - vari-focal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | White |
| Compliant Standards | C-Tick, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class B |
| Included Accessories | Stand |
| Power | |
| Power Requirements | DC 8 - 28 V / PoE |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
