Gigabyte GA-Q87M-D2H
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

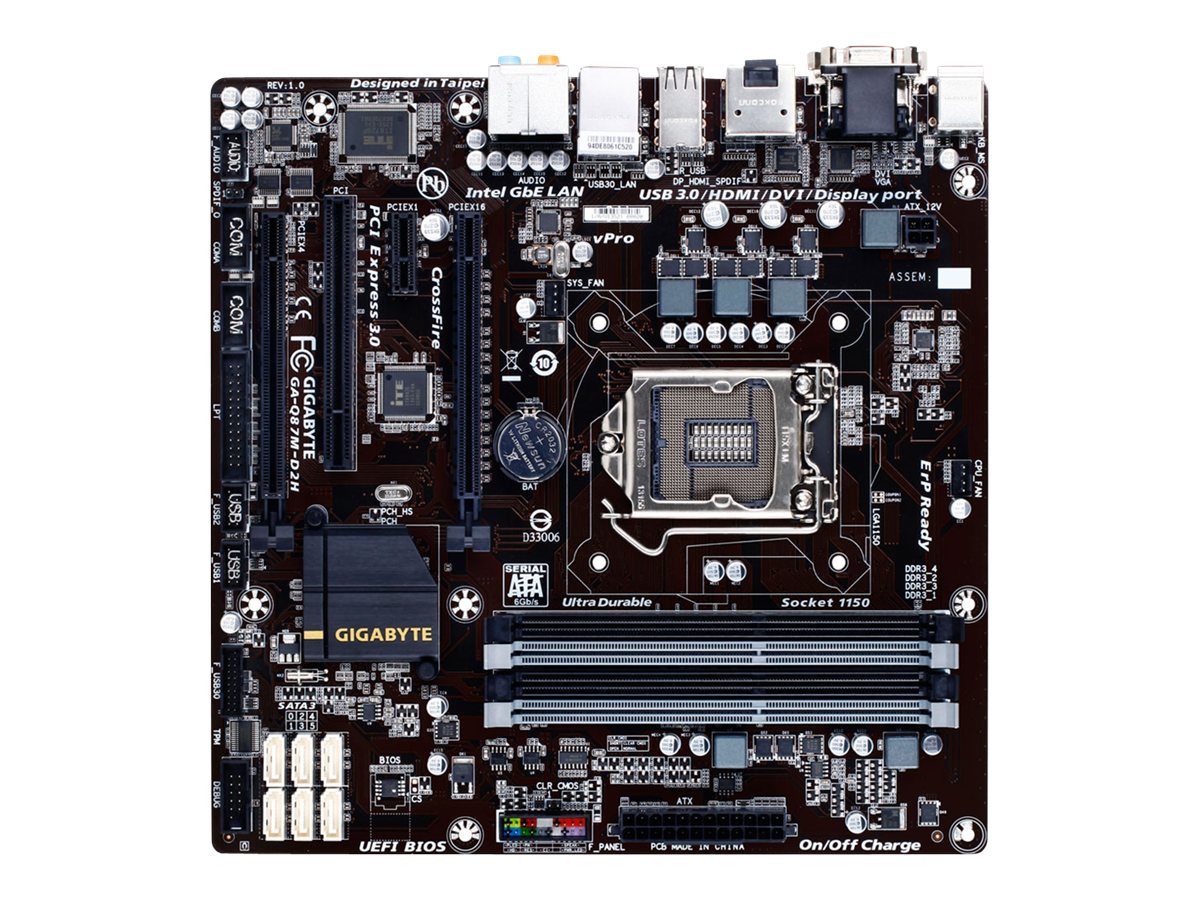

Gigabyte GA-Q87M-D2H
- 1.0
- motherboard
- micro ATX
- LGA1150 Socket
- Q87 Chipset
- USB 3.0
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | GA-Q87M-D2H |
| SHI Part #: | 27295668 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | GIGABYTE |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | Gigabyte GA-Q87M-D2H - 1.0 - motherboard - micro ATX - LGA1150 Socket - Q87 Chipset - USB 3.0 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | GIGABYTE |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | GIGABYTE |
| Mainboard / Chipset Type | Intel Q87 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA1150 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| RAID Features | Intel Smart Response Technology |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Features | |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | 3x USB Power Boost, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Intel Smart Response Technology, One Port One Fuse, GIGABYTE 333 Onboard Acceleration, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Small Business Advantage support, ESD Protection, Ultra Durable 4 Plus |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| General | |
| Chipset Type | Intel Q87 |
| Compatibility | Intel vPro |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series |
| Max Processors Qty | 1 |
| Processor Socket | LGA1150 Socket |
| Product Type | Motherboard - micro ATX |
| Graphics | |
| Max Allocated RAM Size | 1 GB |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Miscellaneous | |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | ACPI 2.0a |
| Depth | 24.4 cm |
| Software Included | Norton Internet Security, GIGABYTE EZ Setup, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 1600 MHz, 1333 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 32 GB |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR3 |
