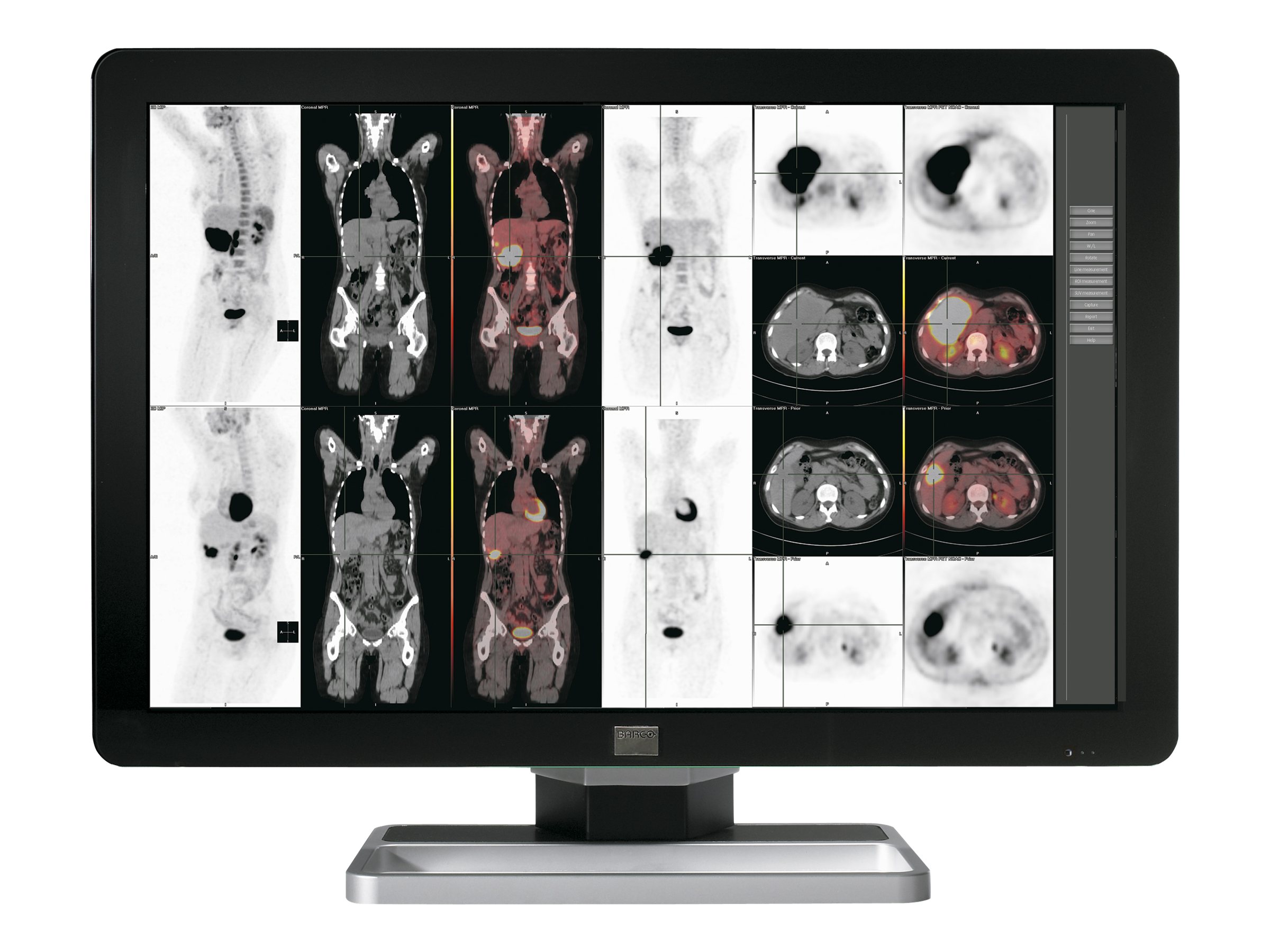

Barco Coronis Fusion 6MP LED MDCC-6230
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Barco Coronis Fusion 6MP LED MDCC-6230
- LED monitor
- 6MP
- color
- 30.4" (30.4" viewable)
- 3280 x 2048
- DD-IPS
- 720 cd/m²
- 1000:1
- 18 ms
- 2xDVI-D, 2xDisplayPort
- black, silver
- with Barco MXRT-5550 graphics adapter
| Additional Details | |
|---|---|
| Mfr Part #: | K9602670 |
| SHI Part #: | 29208421 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Barco |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Barco Coronis Fusion 6MP LED MDCC-6230 - LED monitor - 6MP - color - 30.4" (30.4" viewable) - 3280 x 2048 - DD-IPS - 720 cd/m² - 1000:1 - 18 ms - 2xDVI-D, 2xDisplayPort - black, silver - with Barco MXRT-5550 graphics adapter |
| Manufacturer | Barco |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.5 cm |
| Dimensions & Weight / Height | 58 cm |
| Dimensions & Weight / Weight | 26.5 kg |
| Dimensions & Weight / Width | 73.1 cm |
| Display / Diagonal Size | 30.4 in |
| Display / Diagonal Size (metric) | 77.2 cm |
| Display / Interface |
|
| Display / Native Resolution | 3280 x 2048 |
| Display / Pixel Pitch | 0.1995 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Barco |
| Image Brightness | 720 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 8 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 16:10 |
| Backlight Technology | LED backlight |
| Brightness | 720 cd/m² |
| Built-in Devices | USB 2.0 hub |
| Bundled with | Barco MXRT-5550 graphics adapter |
| Color | Black, silver |
| Color Support | 1.07 billion colors |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 30.4" |
| Dimensions (WxDxH) | 73.1 cm x 26.5 cm x 58 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix - 6MP - color |
| Features | Cable management cover, Uniform Luminance Technology (ULT), I-Guard, Ambient Light Compensation (ALC), DICOM calibrated, integrated cable management, SmoothGray, 30-bit lookup table, Intelligent Multi Sensor technology |
| Horizontal Viewing Angle | 178 |
| Native Resolution | 3280 x 2048 |
| Panel Type | DD-IPS |
| Pixel Pitch | 0.1995 mm |
| Response Time | 18 ms (tr - tf) |
| Screen Coating | Anti-reflective |
| Vertical Viewing Angle | 178 |
| Weight | 26.5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Mechanical | |

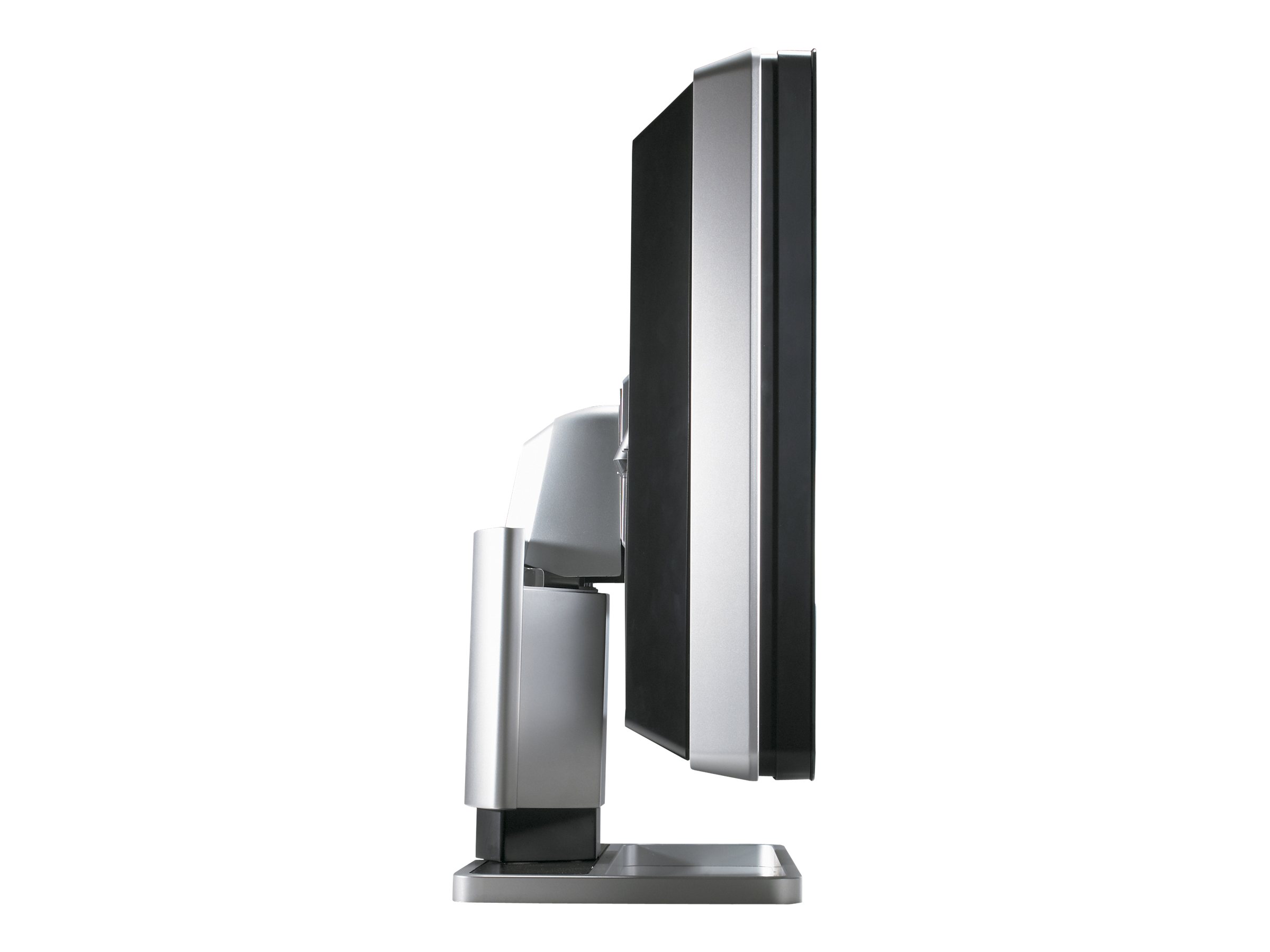

| Display Position Adjustments | Height, swivel, tilt |
| Height Adjustment | 96 mm |
| Swivel Angle | 90 |
| Tilt Angle | -5/+25 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class B certified, CSA, UL, CCC, CEBEC, KEMA, RoHS, FDA 510k, Directive 2004/108/EC, KC, GB 9254-2008, Directive 93/42/EEC, Directive 2007/47/EC, VCCI Class B, IEC 60950-1:2001 First Edition, IEC 60601-1:2005 Third Edition, ANSI/AAMI ES60601-1:2005 + C1:2009 + A1:2010, CAN/CSA-C22.2 No. 60601-1:2008, DEMKO - EN 60601-1:2006, GB 4943-2011, ICES-001 level B, MDD class IIb |
| Power | |
| Power Consumption (Typical) | 125 Watt |
| Power Supply | External |
| Software / System Requirements | |
| Included Software | Barco MediCal QAWeb |
