Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

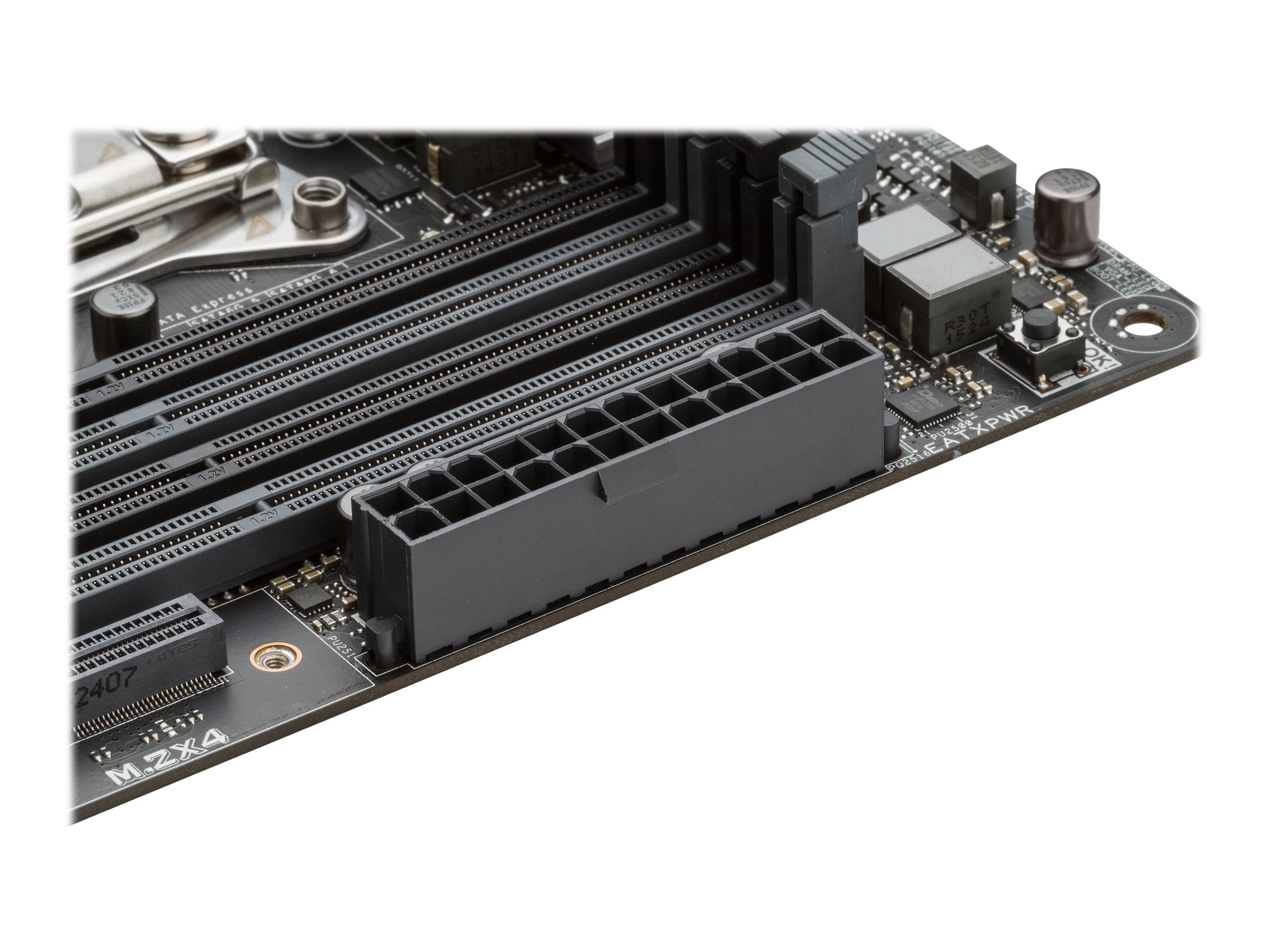

ASUS X99-DELUXE II - Motherboard

Login for Price
ASUS X99-DELUXE II - Motherboard
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • ATX
  • LGA2011-v3 Socket
  • X99
  • USB 3.0, USB 3.1, USB-C
  • Bluetooth, 2 x Gigabit LAN, Wi-Fi
ASUS X99-DELUXE II - Motherboard
  • ATX
  • LGA2011-v3 Socket
  • X99
  • USB 3.0, USB 3.1, USB-C
  • Bluetooth, 2 x Gigabit LAN, Wi-Fi
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: X99-DELUXE II
SHI Part #: 32224487
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS X99-DELUXE II - Motherboard - ATX - LGA2011-v3 Socket - X99 - USB 3.0, USB 3.1, USB-C - Bluetooth, 2 x Gigabit LAN, Wi-Fi - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel X99 Express
Mainboard / Compatible Processors
  • Core i7
  • Core i7 Extreme Edition
Mainboard / Processor SocketLGA2011-v3 Socket
Networking / Data Link Protocol
  • Bluetooth 4.0
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeNone
Audio
Audio CodecRealtek ALC1150
Compliant StandardsDTS Connect, High Definition Audio, DTS Studio Sound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 8 x DIMM 288-pin
  • 4 x PCIe 3.0 x16 (dual x16 mode; triple: x16, x16, x8 mode; quad: x8, x8, x8, x8 mode)
  • 1 x PCIe 2.0 x16 (x4 mode)
  • 1 x PCIe 2.0 x1
Interfaces
  • 2 x LAN (Gigabit Ethernet)
  • 4 x USB 2.0
  • 4 x USB 3.0
  • 1 x audio line-out - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x microphone - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x TOSLINK
  • 3 x USB 3.1
  • 1 x USB-C
Internal Interfaces
  • 4 x USB 2.0 - header
  • 4 x USB 3.0 - header
  • 1 x Thunderbolt - header
  • 1 x SPDIF out - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
RAID FeaturesIntel Smart Response Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin SATA, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 3.0 -connectors: 1 x M.2, 2 x U.2
  • SATA-600 -connectors: 4 x 7pin Serial ATA
Features
BIOS FeaturesWfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, USB BIOS Flashback, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, SMBIOS 3.0 support
BIOS TypeAMI
Hardware FeaturesJack retasking, ASUS Anti-Surge Protection, MemOK!, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, NVIDIA 3-way SLI Technology Support, Teaming Technology, Intel Extreme Memory Profile (XMP) support, NVIDIA Quad SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Smart Response Technology, Q-Code, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, ASUS Wi-Fi GO!, DirectKey, ASUS Enhanced DRAM Overcurrent Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, Dual Intelligent Processors 5, LANGuard, Memory O.C. Design, ASUS OC Socket, USB 3.1 Boost, ASUS Overvoltage Protection, ASUS Crystal Sound 3, ASUS 5X Protection II, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Turbo Boost Technology 3.0
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel X99 Express
Compatible ProcessorsCore i7 Extreme Edition, Core i7
Max Processors Qty1
Processor SocketLGA2011-v3 Socket
Product TypeMotherboard - ATX
LAN
Network ControllerIntel I211-AT / I218V
Network InterfacesBluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac
Miscellaneous
Cables Included
  • 8 x Serial ATA cable
  • 1 x 3-way SLI bridge
Depth24.4 cm
Included AccessoriesI/O back plate, 1 x M.2 screw, ASUS 3T3R Wi-Fi moving antennas, thermistor cable, M.2 X4 bracket, fan extension card, Hyper M.2 x4 Mini card, ASUS ThunderboltEX 3 card
Software IncludedDrivers & utilities, ASUS AI Charger+, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Antivirus (OEM version), Mobo Connect, PC Cleaner, Media Streamer, HyStream, ASUS EZ Flash 3
Width30.5 cm
Supported RAM
Bus Clock2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.)
FeaturesIntel Extreme Memory Profiles (XMP), quad channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR4
