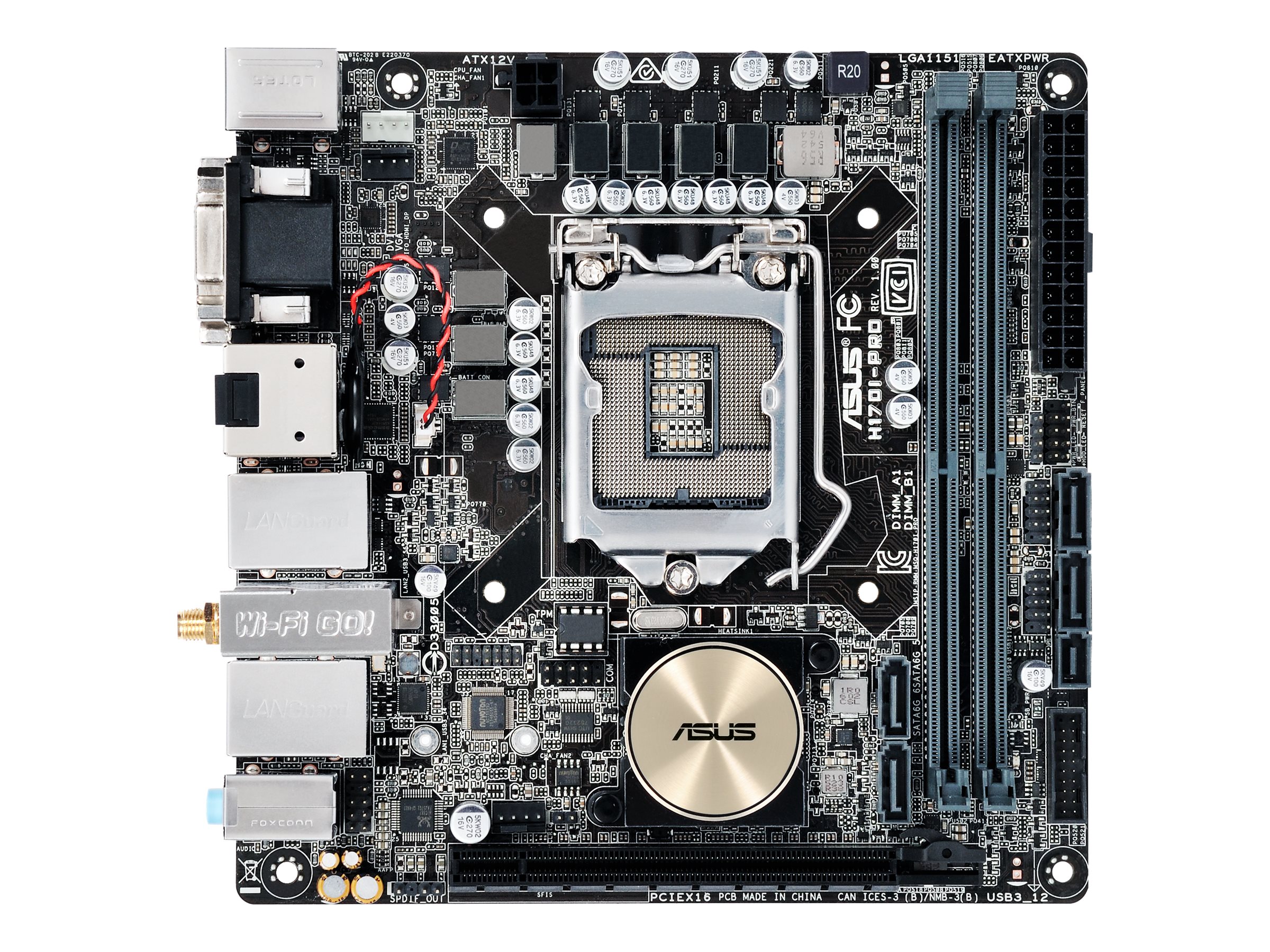

ASUS H170I-PRO - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS H170I-PRO - Motherboard
- mini ITX
- LGA1151 Socket
- H170
- USB 3.0
- Bluetooth, 2 x Gigabit LAN, Wi-Fi
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | H170I-PRO |
| SHI Part #: | 32328538 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS H170I-PRO - Motherboard - mini ITX - LGA1151 Socket - H170 - USB 3.0 - Bluetooth, 2 x Gigabit LAN, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17 cm |
| Dimensions & Weight / Width | 17 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel H170 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA1151 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 4 x 7pin SATA, 1 x M.2, 1 x SATA Express port |
| Features | |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Anti-Surge Protection, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, USB 3.0 Boost, ASUS Wi-Fi GO!, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection II |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel H170 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1151 Socket |
| Product Type | Motherboard - mini ITX |
| Graphics | |
| Max Allocated RAM Size | 1024 MB |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Depth | 17 cm |

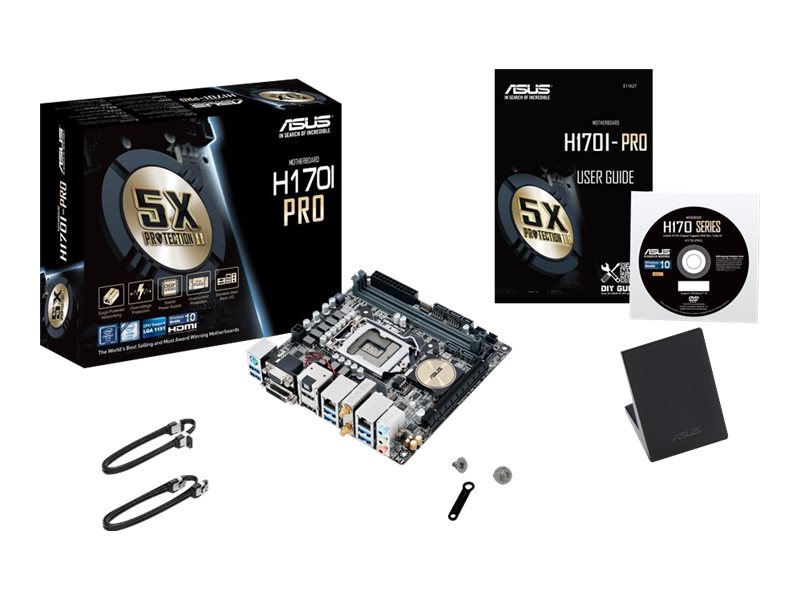

| Included Accessories | I/O back plate, ASUS 2T2R Wi-Fi moving antennas, 1 x M.2 screw |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Media Streamer, ASUS EZ Flash 3 |
| Width | 17 cm |
| Supported RAM | |
| Bus Clock | 2133 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 32 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
