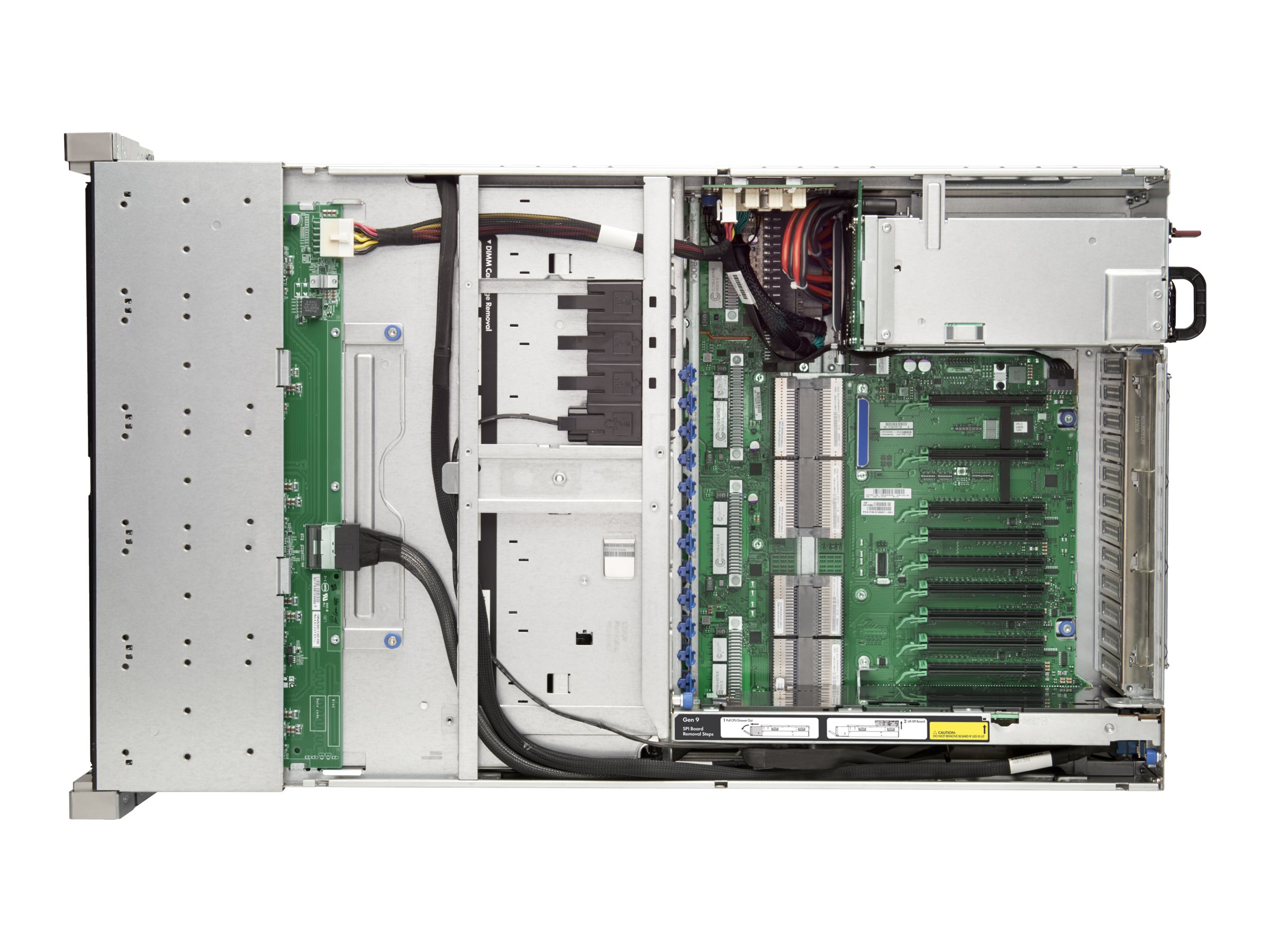

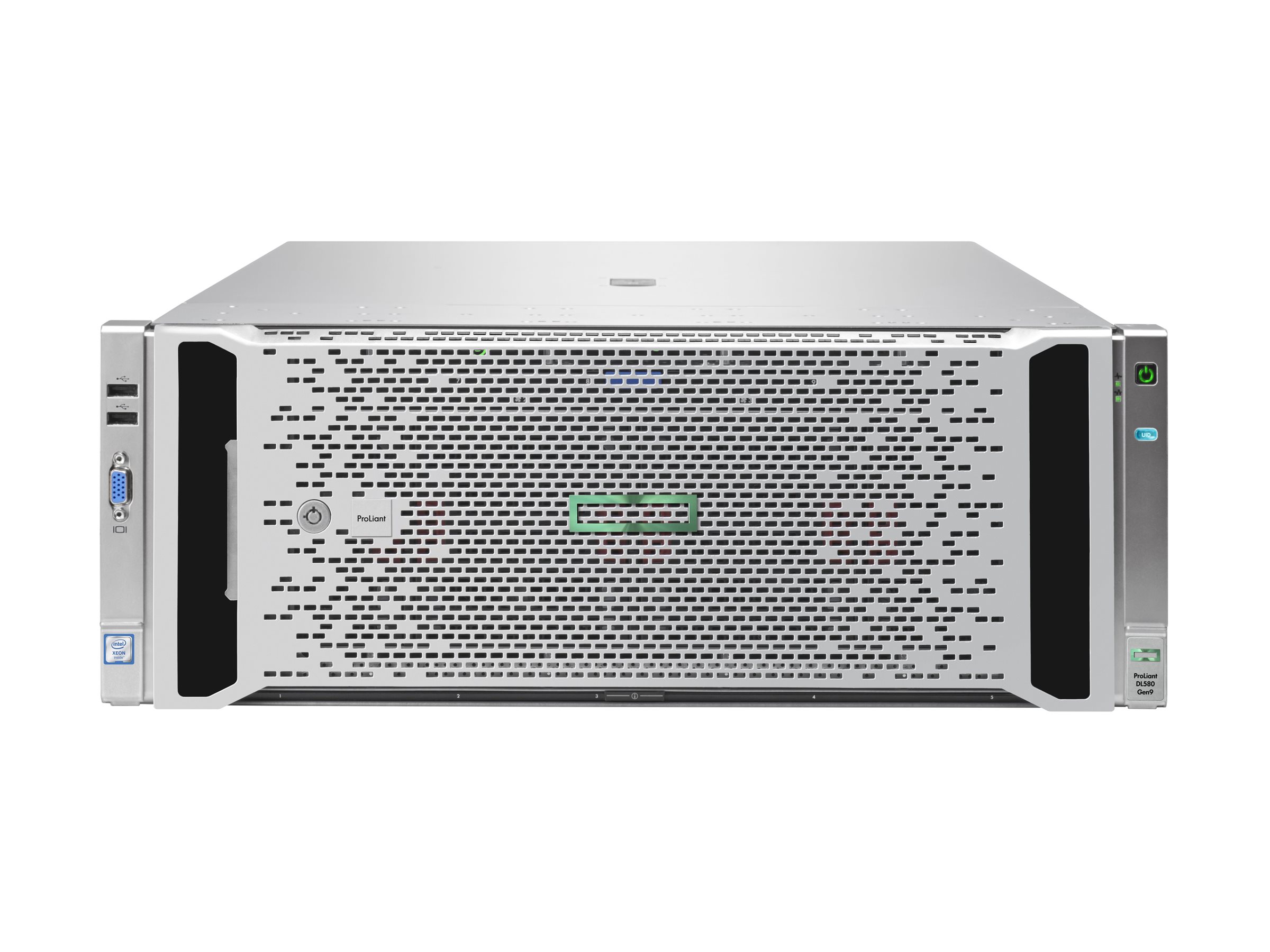

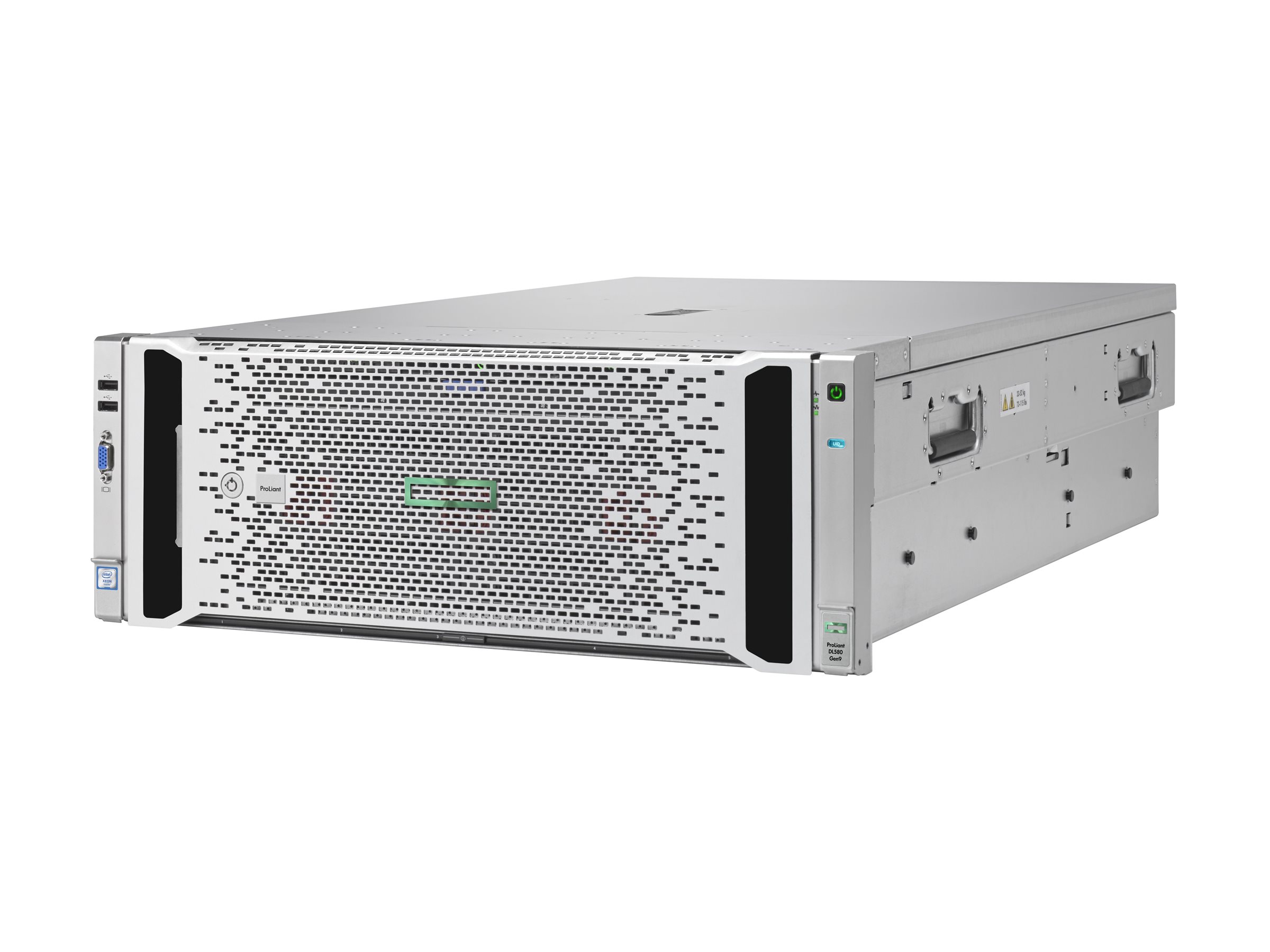

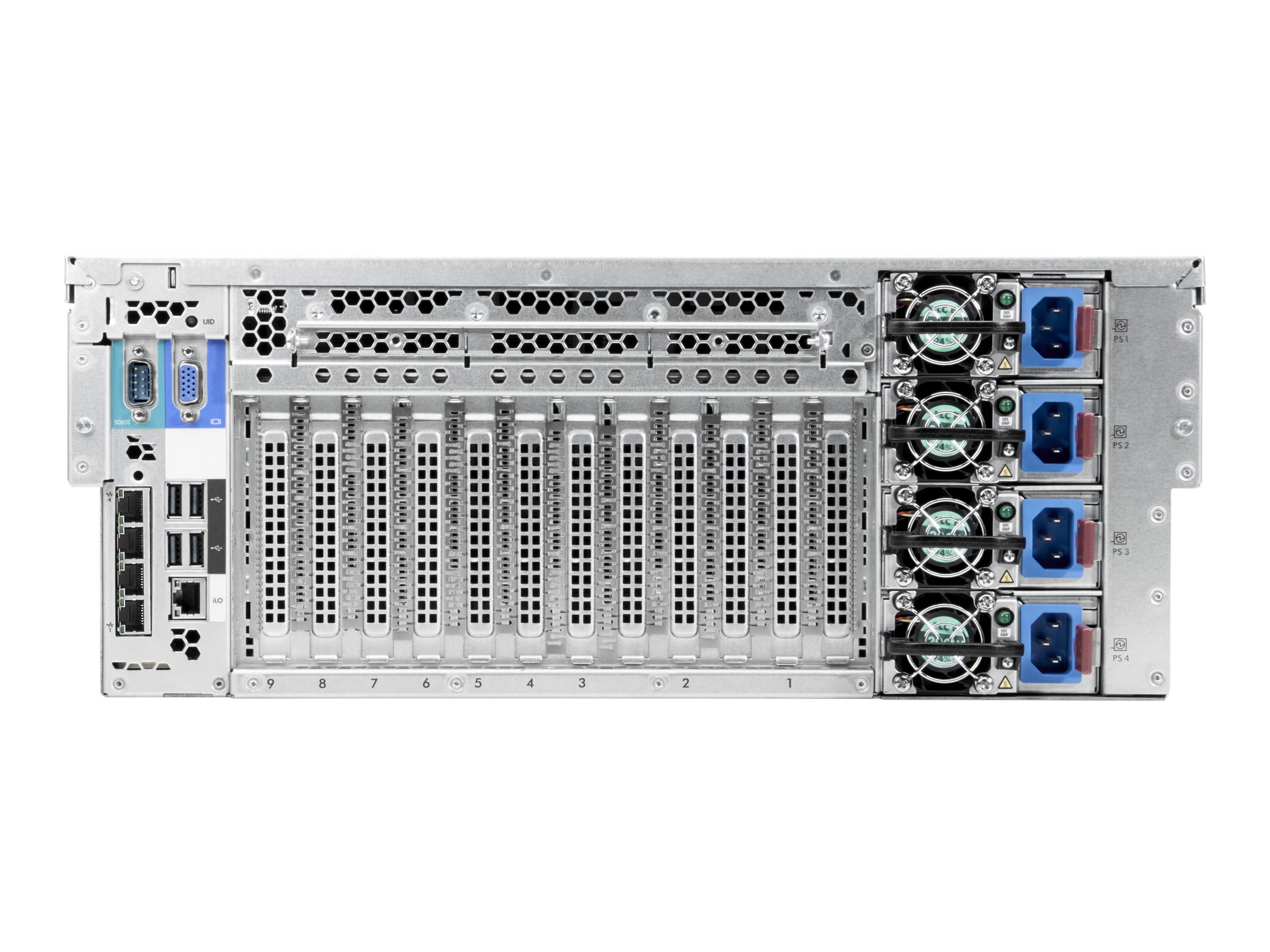

HPE ProLiant DL580 Gen9 Base
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL580 Gen9 Base
- Server
- rack-mountable
- 4U
- 4-way
- 2 x Xeon E7-4809V4 / 2.1 GHz
- RAM 64 GB
- SAS
- hot-swap 2.5" bay(s)
- no HDD
- Matrox G200
- GigE
- monitor: none
| Additional Details | |
|---|---|
| Mfr Part #: | 816817-B21 |
| SHI Part #: | 32375205 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
Network Interface Cards
- PCIe 3.0 x8
- 10 Gigabit SFP+ x 2
- for Nimble Storage dHCI Small Solution with HPE ProLiant DL360 Gen10; ProLiant DL360 Gen10
MSRP €1,179.00
€227.00
- PCIe 2.1 x4
- Gigabit Ethernet x 4
- for Nimble Storage dHCI Small Solution with HPE ProLiant DL360 Gen10; ProLiant DL360 Gen10
- Host bus adapter
- PCIe 3.0 low profile
- 16Gb Fibre Channel x 2
- for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DX360 Gen10, XL220n Gen10, XL290n Gen10
MSRP €2,763.00
€678.00
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL580 Gen9 Base - Server - rack-mountable - 4U - 4-way - 2 x Xeon E7-4809V4 / 2.1 GHz - RAM 64 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - GigE - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SAS |
| Dimensions & Weight / Depth | 73.6 cm |
| Dimensions & Weight / Height | 17.5 cm |
| Dimensions & Weight / Weight | 32.18 kg |
| Dimensions & Weight / Width | 44.4 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Mainboard / Chipset Type | Intel C602J |
| Miscellaneous / Product Color | Silver |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | E7-4809V4 |
| Processor / Type | Xeon |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 1866 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200 |
| Cache Memory | |
| Cache Per Processor | 20 MB |
| Installed Size | L3 cache - 40 MB |
| Dimensions & Weight | |
| Depth | 73.6 cm |
| Height | 17.5 cm |
| Weight | 32.18 kg |
| Width | 44.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 5 (total) / 5 (free) x hot-swap 2.5" SFF |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Hot-Swap Bays Qty | 5 |
| Product Form Factor | Rack-mountable - 4U |
| Server Scalability | 4-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | ACPI 2.0, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Included Accessories | Rack rail kit, cable management arm |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az |
| Data Link Protocol | Gigabit Ethernet |
| Ethernet Controller | HP 331FLR |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support, PXE support |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Remote Management Controller | Integrated Lights-Out 4 |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Linux |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Efficiency | 94% |
| Installed Qty | 2 |
| Max Supported Qty | 4 |
| Power Provided | 1200 watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 2+2 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel C602J |
| Clock Speed | 2.1 GHz |
| CPU | Intel Xeon E7-4809V4 |
| CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 4 |
| Number of Cores | 8-core |
| RAM | |
| Configuration Features | 4 x 16 GB |
| Effective Memory Speed | 1866 MHz |
| Features | Registered, HPE SmartMemory |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB (installed) / 6 TB (max) |
| Slots | 96 (total) / 92 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Buffer Size | 2 GB |
| Channel Qty | 2 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Storage Controller Name | Smart Array P830i with 2GB FBWC |
| Type | 1 x RAID |
