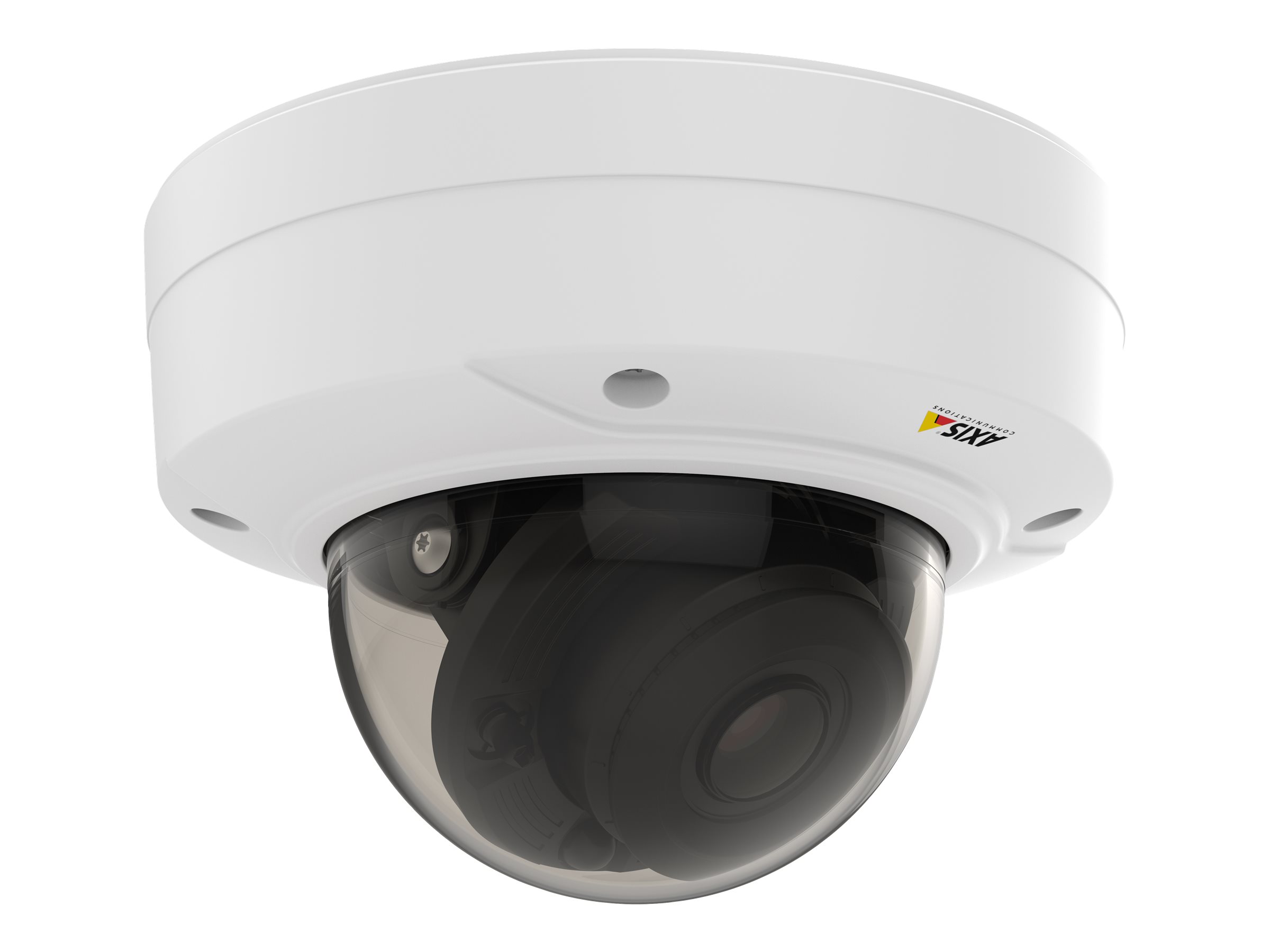

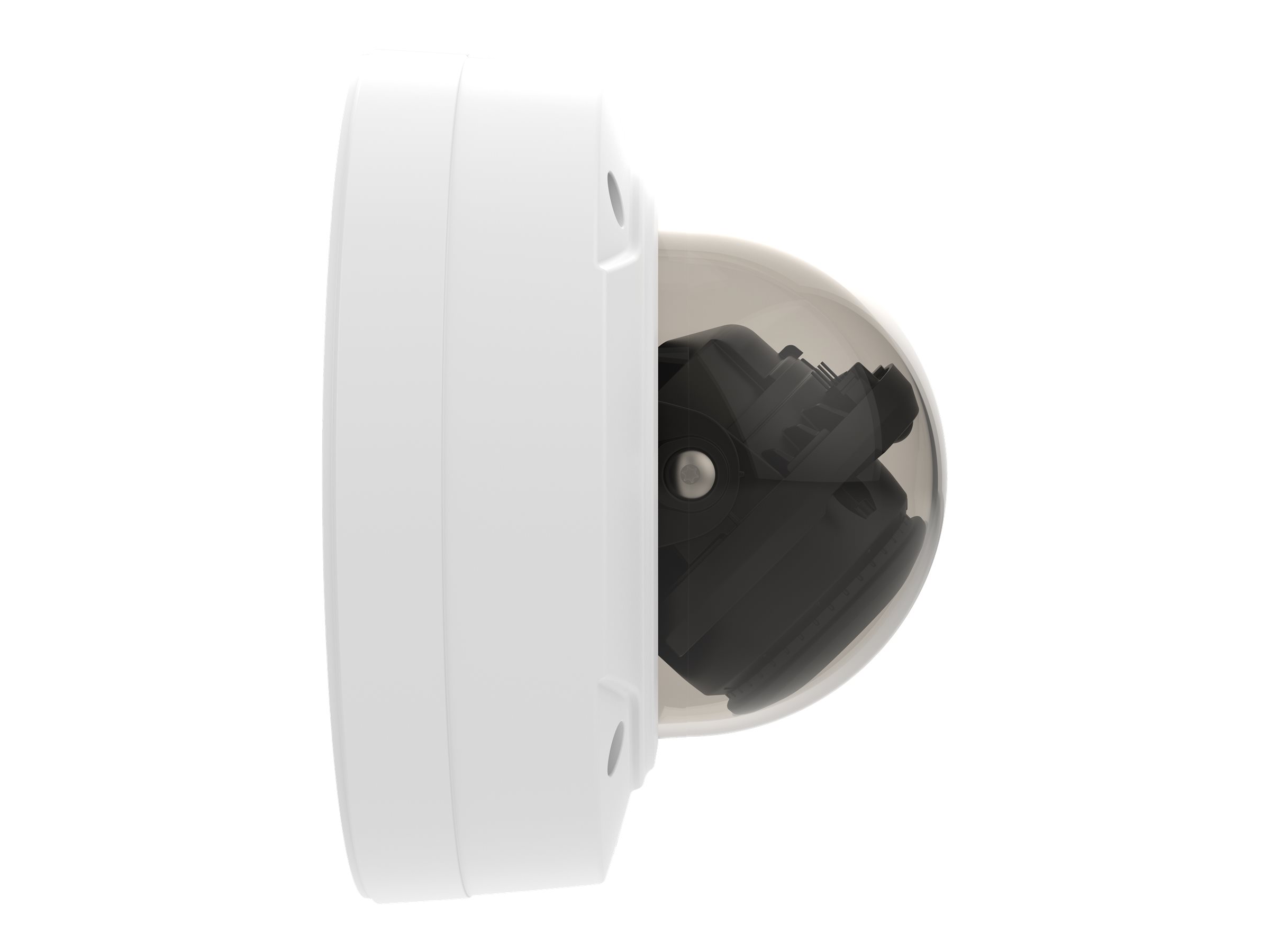

AXIS P3225-LV MKII Network Camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS P3225-LV MKII Network Camera
- Network surveillance camera
- dome
- dustproof / vandal-proof
- color (Day&Night)
- 1920 x 1080
- 1080p
- vari-focal
- LAN 10/100
- MPEG-4, MJPEG, H.264
- PoE Plus
| Additional Details | |
|---|---|
| Mfr Part #: | 0954-001 |
| SHI Part #: | 32561780 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS P3225-LV MKII Network Camera - Network surveillance camera - dome - dustproof / vandal-proof - color (Day&Night) - 1920 x 1080 - 1080p - vari-focal - LAN 10/100 - MPEG-4, MJPEG, H.264 - PoE Plus |
| Manufacturer | Axis Communications |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.9 cm |
| Dimensions & Weight / Height | 10.1 cm |
| Dimensions & Weight / Weight | 550 g |
| Dimensions & Weight / Width | 14.9 cm |
| Header / Brand | Axis |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080, 160 x 90 |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Exposure Range | 1 sec - 1/66500 sec |
| Features | Backlight Compensation (BLC), sharpness control, white balance, auto exposure control, color control, brightness control, contrast control, Wide Dynamic Range (WDR), infrared cut filter, P-Iris control, digital PTZ function, password protection, IR Corrected lens, Zipstream technology |
| Flash Memory | 256 MB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 30 m |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| RAM | 512 MB |
| Type | Color - Day&Night - fixed - dustproof / vandal-proof |
| Video Modes | 1080p |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 14.9 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 10.1 cm |
| Weight | 550 g |
| Width | 14.9 cm |
| Image Sensor | |
| Type | CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Lens Construction | |
| Focal Length | 3 mm - 10.5 mm |
| Horizontal Field of View (degree) | 34 - 92 |
| Lens Iris | F/1.4 (P-Iris) |
| Optical Zoom | 3.5 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 20 - 50 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | White |
| Compliant Standards | C-Tick, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IP52, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK08, EN 50121-4, IEC 62236-4, VCCI Class B, KN24, KCC KN22, IEC 60950-22, EN 62471:2008, IEC 62471, EN 60950-22, UL 60950-22, AS/NZS CISPR 22 Class B |
| Included Accessories | Mounting kit |
| Panning | |
| Range (degree) | -180 to +180 |
| Power | |
| Power Device | 10.2 watt |
| Power Requirements | PoE Plus |
| Tilting | |
| Range (degree) | -5 to 75 |
