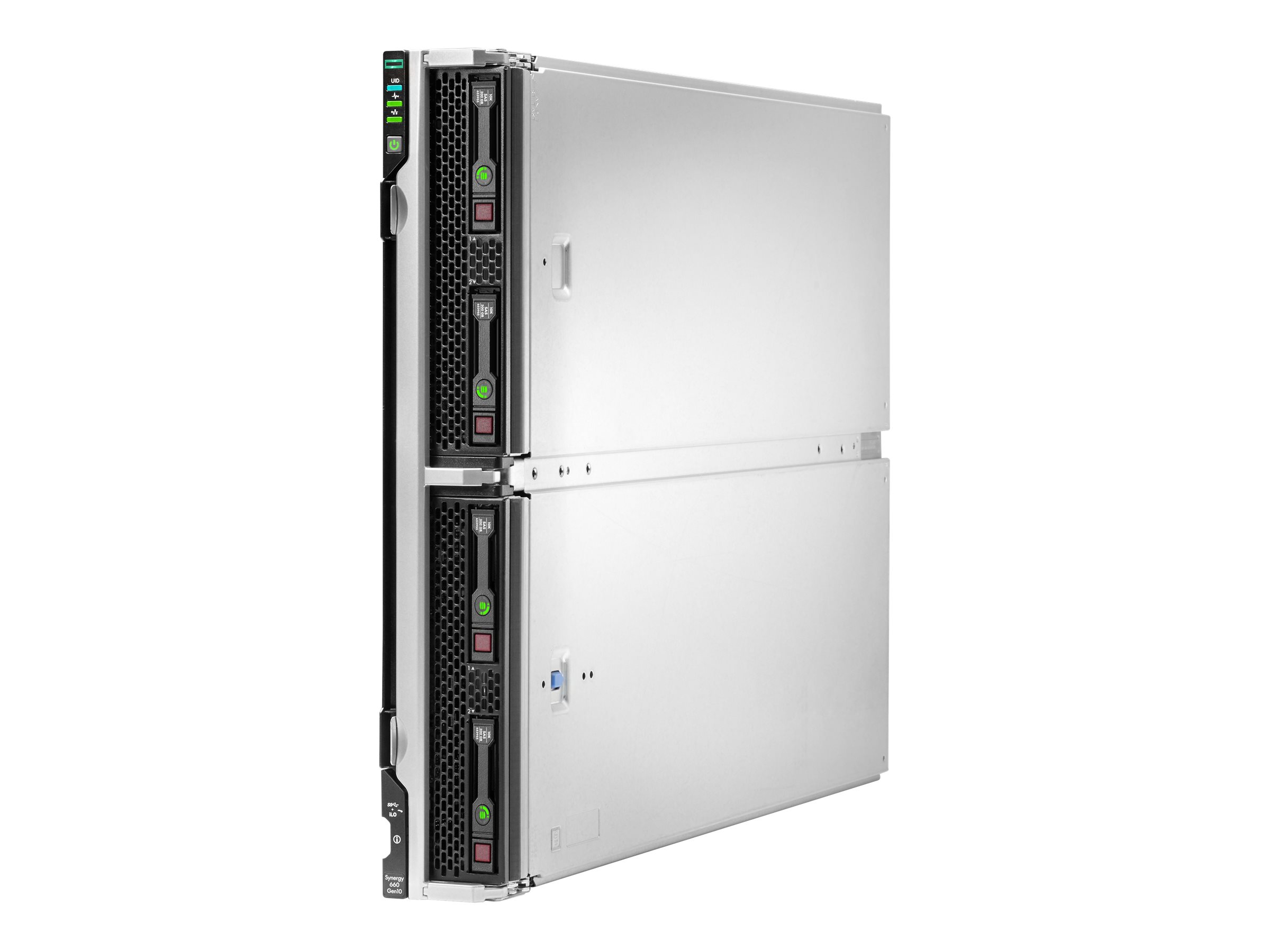

HPE Synergy 660 Gen10 Performance Compute Module
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Synergy 660 Gen10 Performance Compute Module
- Server
- blade
- 4-way
- 4 x Xeon Platinum 8160 / 2.1 GHz
- RAM 128 GB
- SATA/SAS/PCI Express
- hot-swap 1", 2.5" bay(s)
- no HDD
- G200eH2
- Gigabit Ethernet, 10 Gigabit Ethernet, 20 Gigabit Ethernet
- monitor: none
- BTO
| Additional Details | |
|---|---|
| Mfr Part #: | 871932-B21 |
| SHI Part #: | 34124008 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE Synergy 660 Gen10 Performance Compute Module - Server - blade - 4-way - 4 x Xeon Platinum 8160 / 2.1 GHz - RAM 128 GB - SATA/SAS/PCI Express - hot-swap 1", 2.5" bay(s) - no HDD - G200eH2 - Gigabit Ethernet, 10 Gigabit Ethernet, 20 Gigabit Ethernet - monitor: none - BTO |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Blade |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS/PCI Express |
| Dimensions & Weight / Depth | 59.92 cm |
| Dimensions & Weight / Height | 6.35 cm |
| Dimensions & Weight / Weight | 13.75 kg |
| Dimensions & Weight / Width | 43.03 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Header / Country Kits | Worldwide |
| Mainboard / Chipset Type | Intel C621 |
| Mainboard / Processor Socket | Socket P |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 24-core |
| Processor / Processor Number | 8160 |
| Processor / Type | Xeon Platinum |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2666 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200eH2 |
| Cache Memory | |
| Cache Per Processor | 33 MB |
| Installed Size | L3 cache - 132 MB |
| Card Reader | |
| Supported Flash Memory Cards | microSDHC |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 59.92 cm |
| Height | 6.35 cm |
| Weight | 13.75 kg |
| Width | 43.03 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | Hot-swap 1" uFF / 2.5" SFF shared |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Localization | Region: Worldwide |
| Product Form Factor | Blade |
| Server Scalability | 4-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200eH2 |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | AES |
| Pricing Type | BTO |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 20 Gigabit Ethernet |
| Ethernet Controller | HPE Synergy 3820C |
| Features | Wake on LAN (WoL), PXE support |
| Remote Management Controller | Integrated Lights-Out 5 |
| Remote Management Protocol | SNMP, SMASH CLP |
| Operating System / Software | |
| OS Certified | Microsoft Windows Server 2012 R2 Datacenter, Microsoft Windows Server 2012 R2 Standard, Microsoft Windows Server 2012 with Hyper-V, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2012 R2 with Hyper-V, SuSE Linux Enterprise Server 12 SP3, Microsoft Windows Server 2016 Standard, Microsoft Windows Server 2016 Datacenter, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, Red Hat Enterprise Linux 7.4, VMware vSphere 6.0 (ESXi) Update 3, VMware vSphere 2016, VMware vSphere 2017 |
| Software | HPE OneView, HPE Server UEFI |
| Optical Storage | |
| Type | No optical drive |
| Processor / Chipset | |
| Chipset Type | Intel C621 |
| Clock Speed | 2.1 GHz |
| CPU | Intel Xeon Platinum 8160 |
| CPU Qty | 4 |
| CPU Socket | Socket P |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 4 |
| Number of Cores | 24-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| RAM | |
| Effective Memory Speed | 2666 MHz |
| Features | Load-Reduced DIMM (LRDIMM) |
| Form Factor | DIMM 288-pin |
| Installed Size | 128 GB / 768 GB (max) |
| RAM Supported |
|
| Rated Memory Speed | 2666 MHz |
| Slots | 48 (total) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Buffer Size | 2 GB |
| Channel Qty | 8 |
| Controller Interface Type | SAS 12Gb/s |
| Storage Controller Name | HPE Smart Array P408i-c |
| Type | 1 x RAID |
| Storage Controller (2nd) | |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | HPE Smart Array S100i SR Software |
| Type | 1 x SATA |
