ASUS ZenFone 4 Max (ZC554KL)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

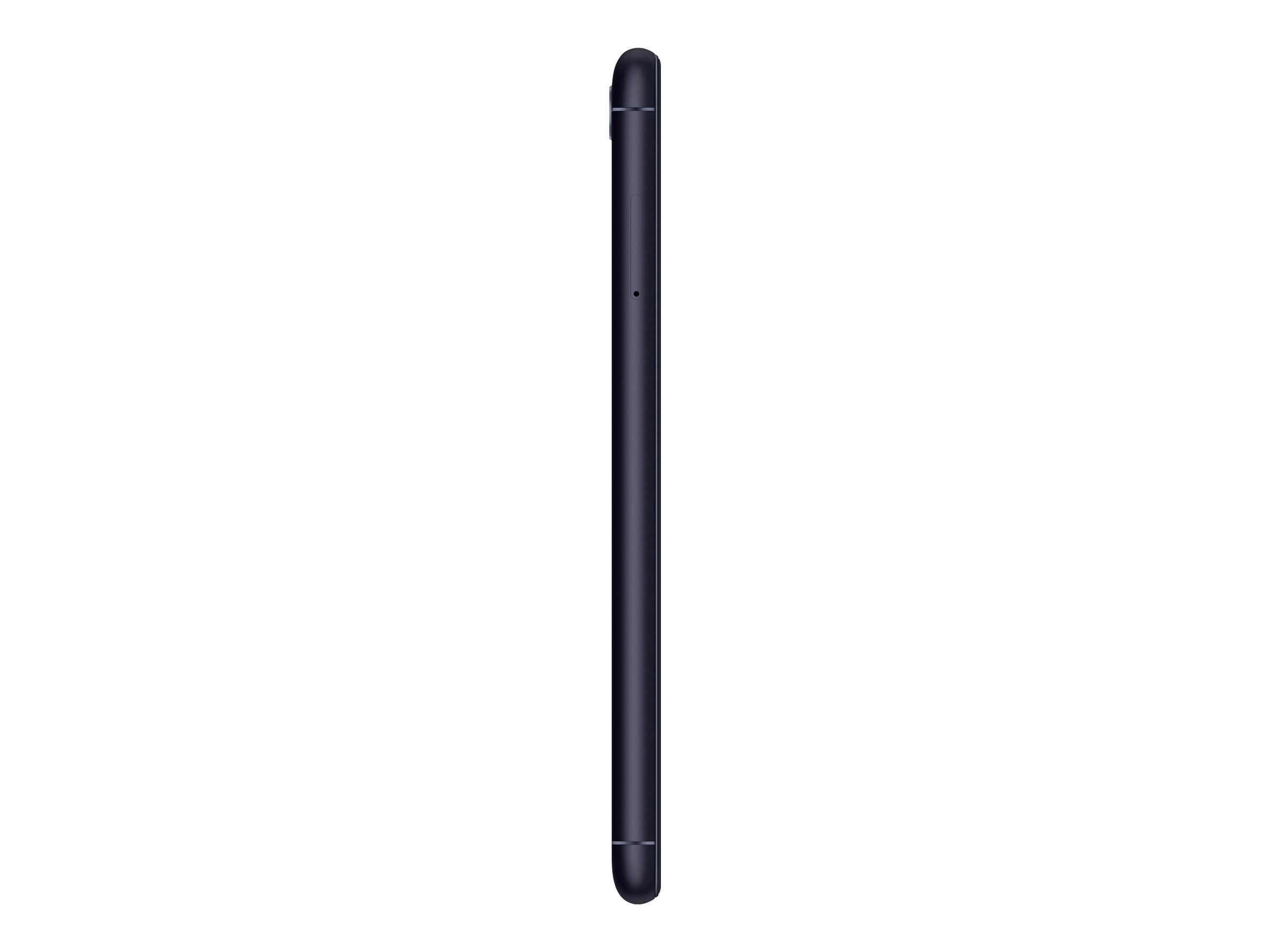

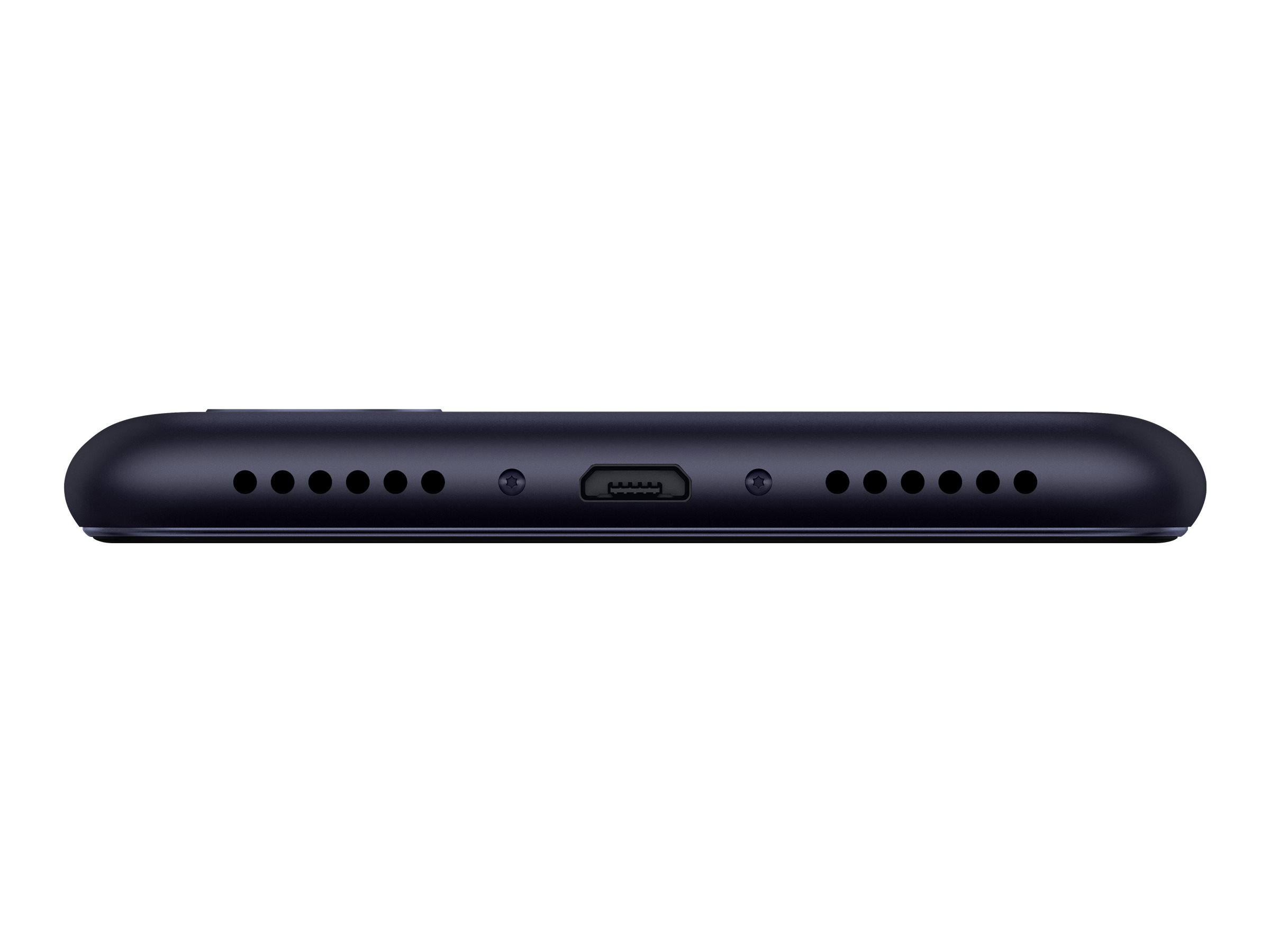

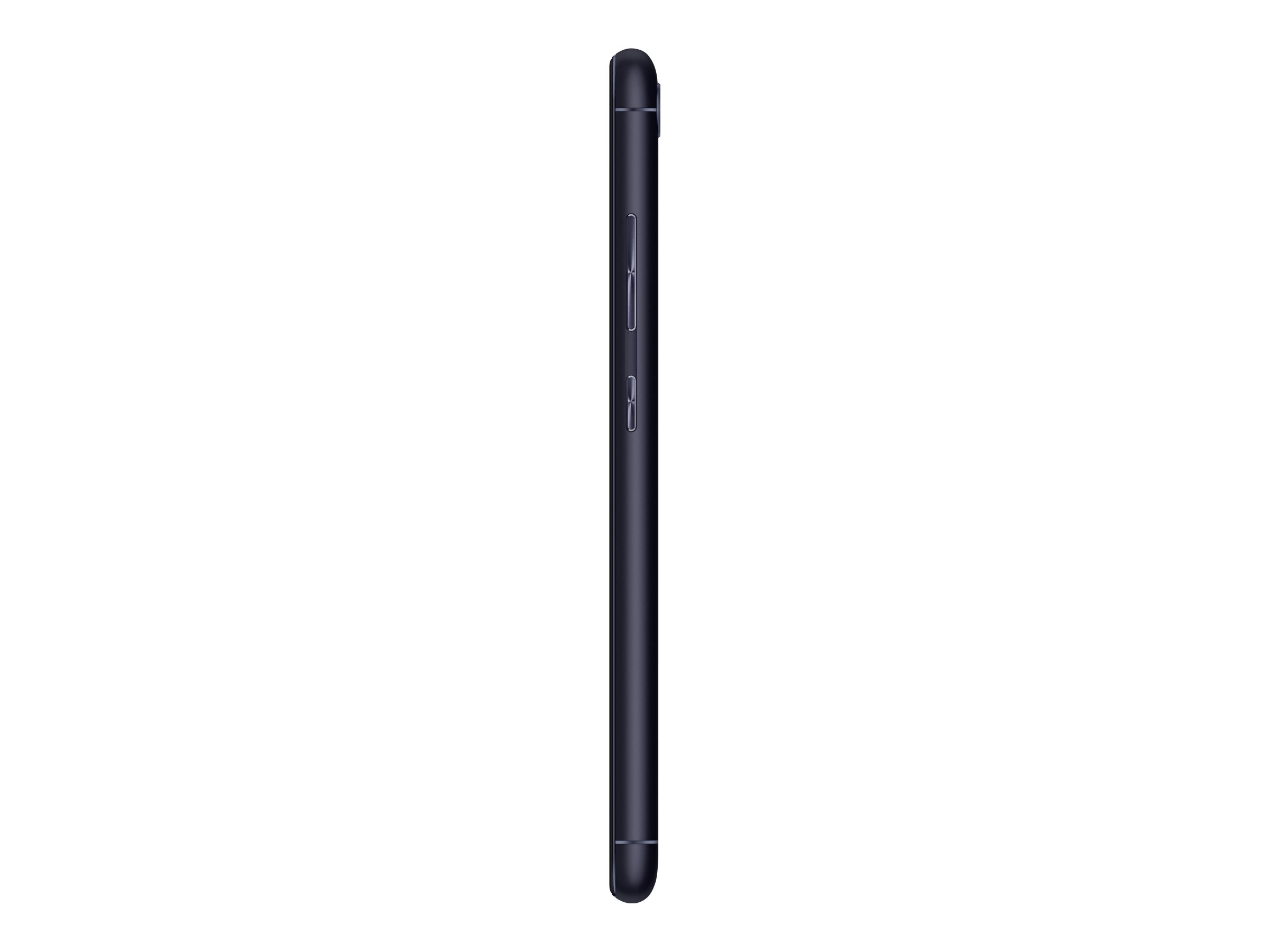

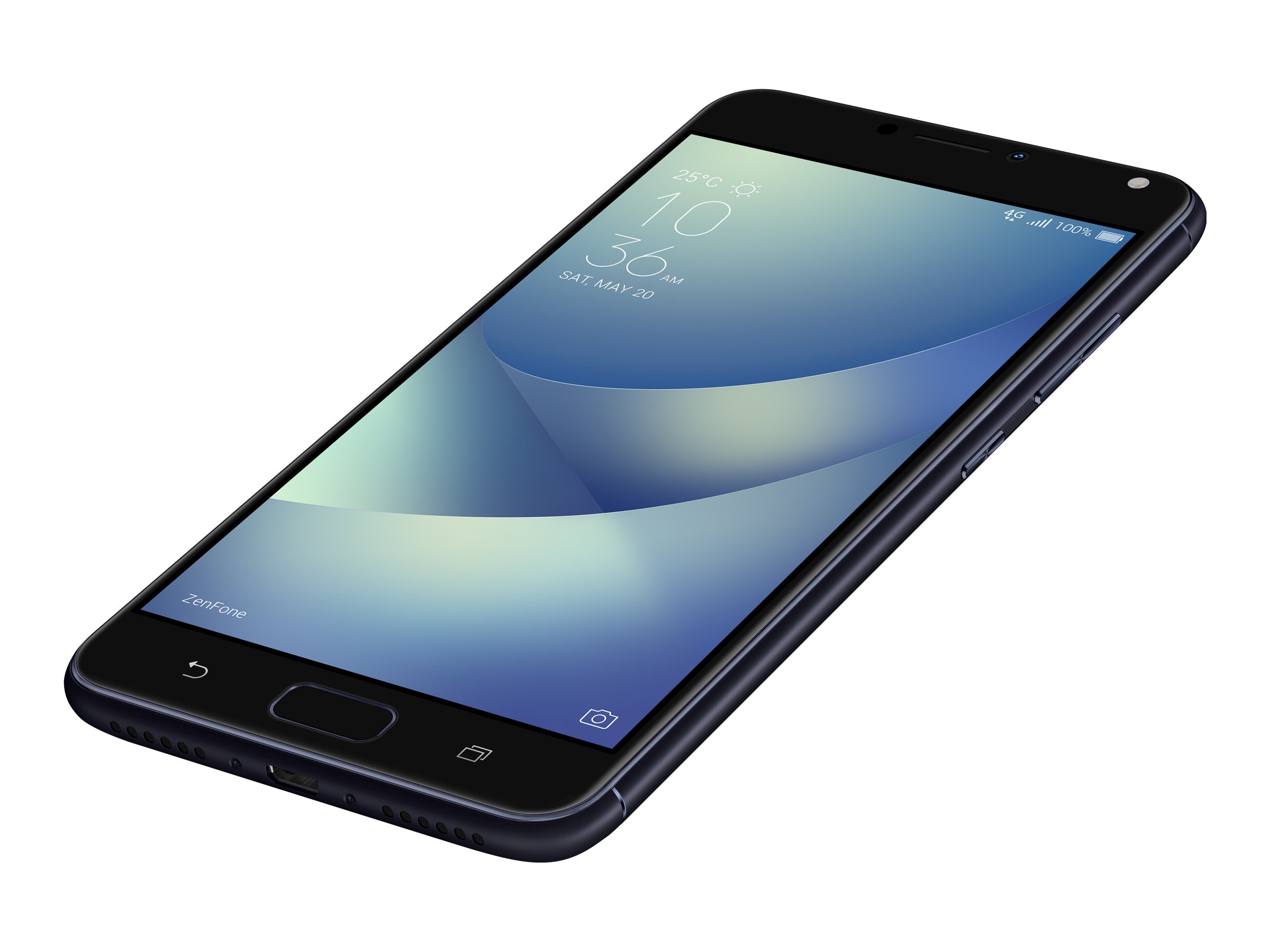

ASUS ZenFone 4 Max (ZC554KL)
- 4G smartphone
- dual-SIM
- RAM 4 GB / Internal Memory 64 GB
- microSD slot
- LCD display
- 5.5"
- 1280 x 720 pixels
- 2x rear cameras 13 MP, 5 MP
- front camera 8 MP
- abyssal black
| Additional Details | |
|---|---|
| Mfr Part #: | 90AX00I1-M00420 |
| SHI Part #: | 34284687 |
| Category: | Mobile telephones |
| UNSPSC: | 43191501 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Mobile telephones |
| Description | ASUS ZenFone 4 Max (ZC554KL) - 4G smartphone - dual-SIM - RAM 4 GB / Internal Memory 64 GB - microSD slot - LCD display - 5.5" - 1280 x 720 pixels - 2x rear cameras 13 MP, 5 MP - front camera 8 MP - abyssal black |
| Manufacturer | ASUS |
| UNSPSC | 43191501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.9 mm |
| Dimensions & Weight / Height | 154 mm |
| Dimensions & Weight / Weight | 181 g |
| Dimensions & Weight / Width | 76.9 mm |
| Display / Diagonal Size (metric) | 14 cm |
| Display / Type | LCD display |
| Header / Brand | ASUS |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.4 GHz |
| Processor / Manufacturer | QUALCOMM |
| Processor / Processor Number | MSM8937 |
| Processor / Type | Snapdragon 430 |
| Battery | |
| Capacity | 5000 mAh |
| Run Time Details |
|
| Standby Time | 1104 hours |
| Talk Time | 2400 minutes |
| Technology | Lithium polymer |
| Cellular | |
| Input Device | Multi-touch, capacitive |
| Mobile Broadband Generation | 4G |
| Navigation | GPS, A-GPS, GLONASS, BeiDou |
| Operating System | Android 7.0 Nougat |
| Service Provider | Not specified |
| SIM Card Qty | Dual-SIM |
| SIM Card Type | Nano SIM |
| Technology | WCDMA (UMTS) / GSM |
| User Interface | ASUS ZenUI |
| Communications | |
| 2G Band | 850 GSM, 1800 GSM, 1900 GSM |
| 3G UMTS Band | Band 1, Band 5, Band 8 |
| 3G UMTS Frequency | 2100, 850, 900 |
| 4G LTE Band | Band 1, Band 3, Band 5, Band 7, Band 8, Band 20, Band 40 |
| 4G LTE Frequency | FDD 2100, FDD 1800+, FDD 850, FDD 2600, FDD 900, FDD 800 DD, TDD 2300 |
| Data Transmission | GPRS, EDGE, HSDPA, HSUPA, HSPA+, FDD-LTE, TDD-LTE |
| Wireless Interface | IEEE 802.11b/g/n, Bluetooth 4.1 |
| Connections | |
| Connector Type |
|
| Display | |
| Diagonal Size | 5.5" |
| Display Format | HD |
| Display Resolution | 1280 x 720 pixels |
| Enhancement Technology | Blue light filter |
| Features | 2.5D curved glass |
| Technology | IPS |
| Type | LCD display |
| Front Camera | |
| Lens Aperture | F/2.2 |
| Lens Type | Wide-angle lens |
| Light Source | LED light |
| Sensor Resolution | 8 Megapixel |
| General | |
| Body Color | Abyssal black |
| Body Material | Metal |
| Depth | 8.9 mm |
| Form Factor | Touch |
| Height | 154 mm |
| Integrated Components | FM radio |
| Manufacturer Model Number | ZC554KL |
| Product Type | Smartphone |
| SAR Value | 1.2 W/kg (body), 0.302 W/kg (head) |
| Weight | 181 g |
| Width | 76.9 mm |
| Graphics System | |
| Graphics Accelerator | Qualcomm ADRENO 505 |
| Main Camera | |
| Camera Modes | Panorama, Pro mode |
| Features | Phase Detect Auto-Focus (PDAF), Electronic Image Stabilizer (EIS), PixelMaster 4.0 camera, Instant cameras switching |
| Focus Adjustment | Automatic |
| Laser Auto Focus | Yes |
| Lens Aperture | F/2.0 |
| Light Source | LED light |
| Sensor Resolution | 13 Megapixel |
| Video Resolutions | 1920 x 1080 (1080p) at 30 fps |
| Memory | |
| Internal Memory Capacity | 64 GB |
| RAM | LPDDR3 SDRAM - 4 GB |
| Supported Flash Memory Cards | microSDHC, microSDXC - up to 256 GB |
| Messaging & Internet | |
| Messaging Services | SMS, MMS |
| Miscellaneous | |
| Included Accessories | USB adapter, USB cable, OTG cable, SIM card removal tool |
| Phone Features | |
| Additional Features | Dual microphones, Google Drive Storage (100 GB) (free for 2 years), power bank function, ASUS PowerMaster |
| Phone Functions | Speakerphone, call timer, conference call, flight mode, vibrating alert |
| Security Devices | Fingerprint reader |
| Sensors | Ambient light sensor, proximity sensor, digital compass, gyro sensor, G-sensor |
| Processor | |
| 64-bit Architecture | Yes |
| Clock Speed | 1.4 GHz |
| Processor Core Qty | 8-core |
| Processor Number | MSM8937 |
| Type | Qualcomm Snapdragon 430 |
| Second Camera | |
| Lens Type | Wide-angle lens |
| Sensor Resolution | 5 Megapixel |
