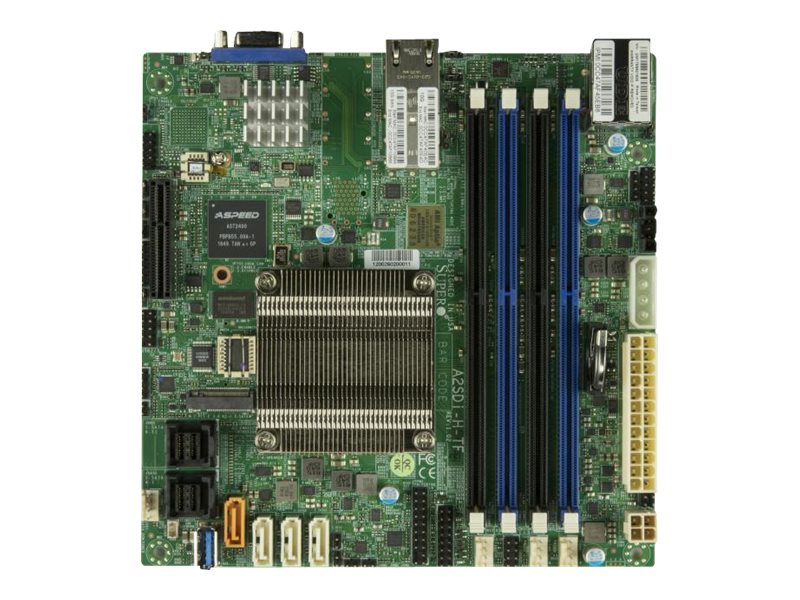

SUPERMICRO A2SDi-H-TF
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
SUPERMICRO A2SDi-H-TF
- Motherboard
- mini ITX
- Intel Atom C3758
- USB 3.0
- 2 x 10 Gigabit LAN
- onboard graphics
- for SC504 203B; SC505 203B; SCE300
| Additional Details | |
|---|---|
| Mfr Part #: | MBD-A2SDI-H-TF-B |
| SHI Part #: | 34569854 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | SUPERMICRO A2SDi-H-TF - Motherboard - mini ITX - Intel Atom C3758 - USB 3.0 - 2 x 10 Gigabit LAN - onboard graphics - for SC504 203B; SC505 203B; SCE300 |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.02 cm |
| Dimensions & Weight / Width | 17.02 cm |
| Header / Brand | Supermicro |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Processor / Manufacturer | Intel |
| Processor / Type | Atom |
| Service & Support / Type | 3-year warranty |
| Video Output / Graphics Processor | ASPEED AST2400 |
| Video Output / Type | Graphics adapter |
| Compatibility Information | |
| Designed For |
|
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, DC-in power connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | Power failure recovery (AC loss resume), UEFI BIOS, SMBIOS 2.7.1 support, IPMI 2.0 support |
| BIOS Type | AMI |
| Hardware Features | Chassis intrusion detection, WatchDog Timer |
| Hardware Monitoring | Chassis temperature, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Cache Memory | 16 MB |
| Processor | Intel Atom C3758 (8-core) |
| Product Type | Motherboard - mini ITX |
| Graphics | |
| Graphics Controller | ASPEED AST2400 |
| LAN | |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | RoHS |
| Depth | 17.02 cm |
| Included Accessories | I/O back plate |
| Package Type | Bulk |
| Width | 17.02 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz |
| Details |
|
| Max Size | 256 GB |
| Registered or Buffered | Registered, unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
