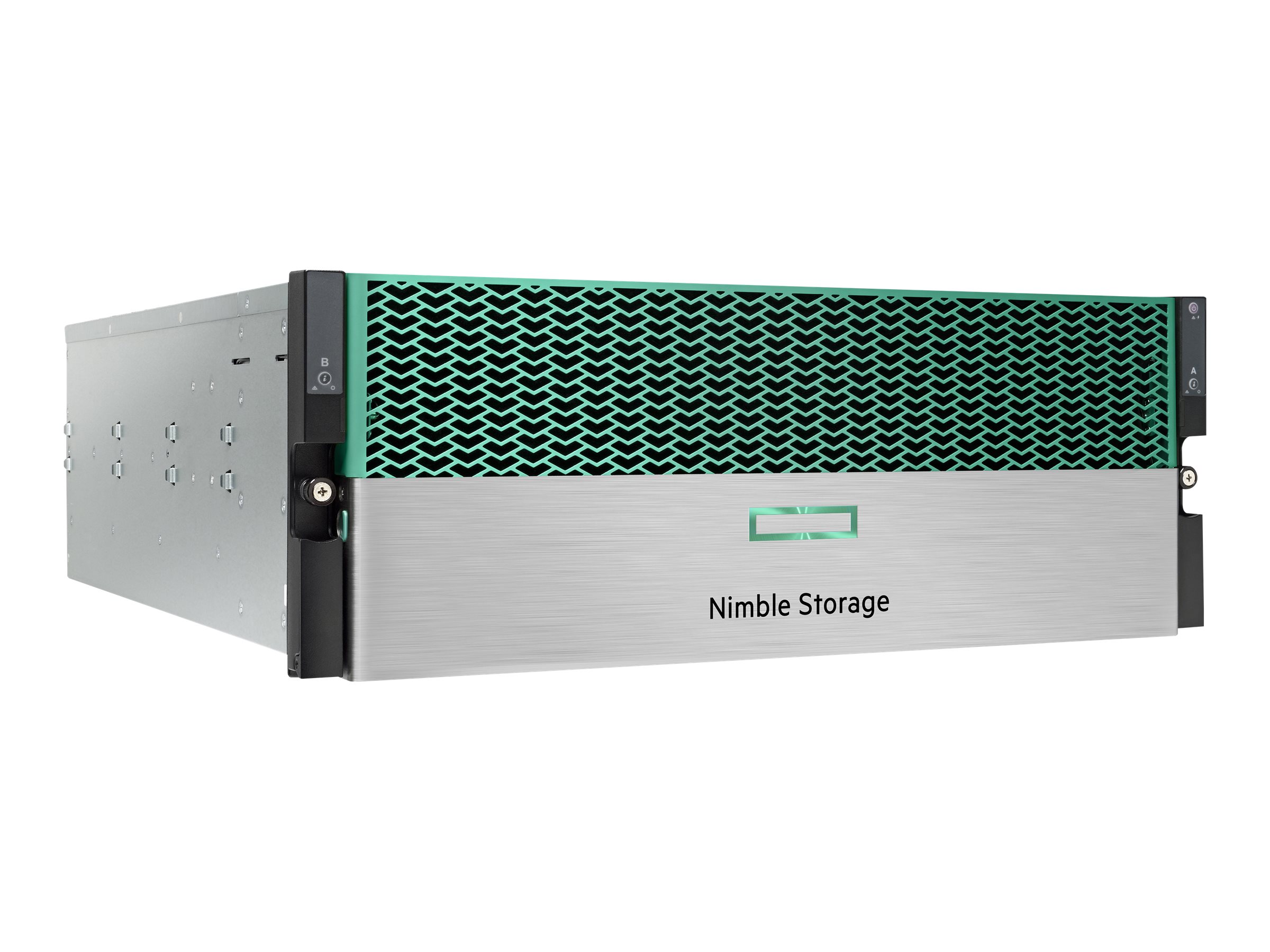

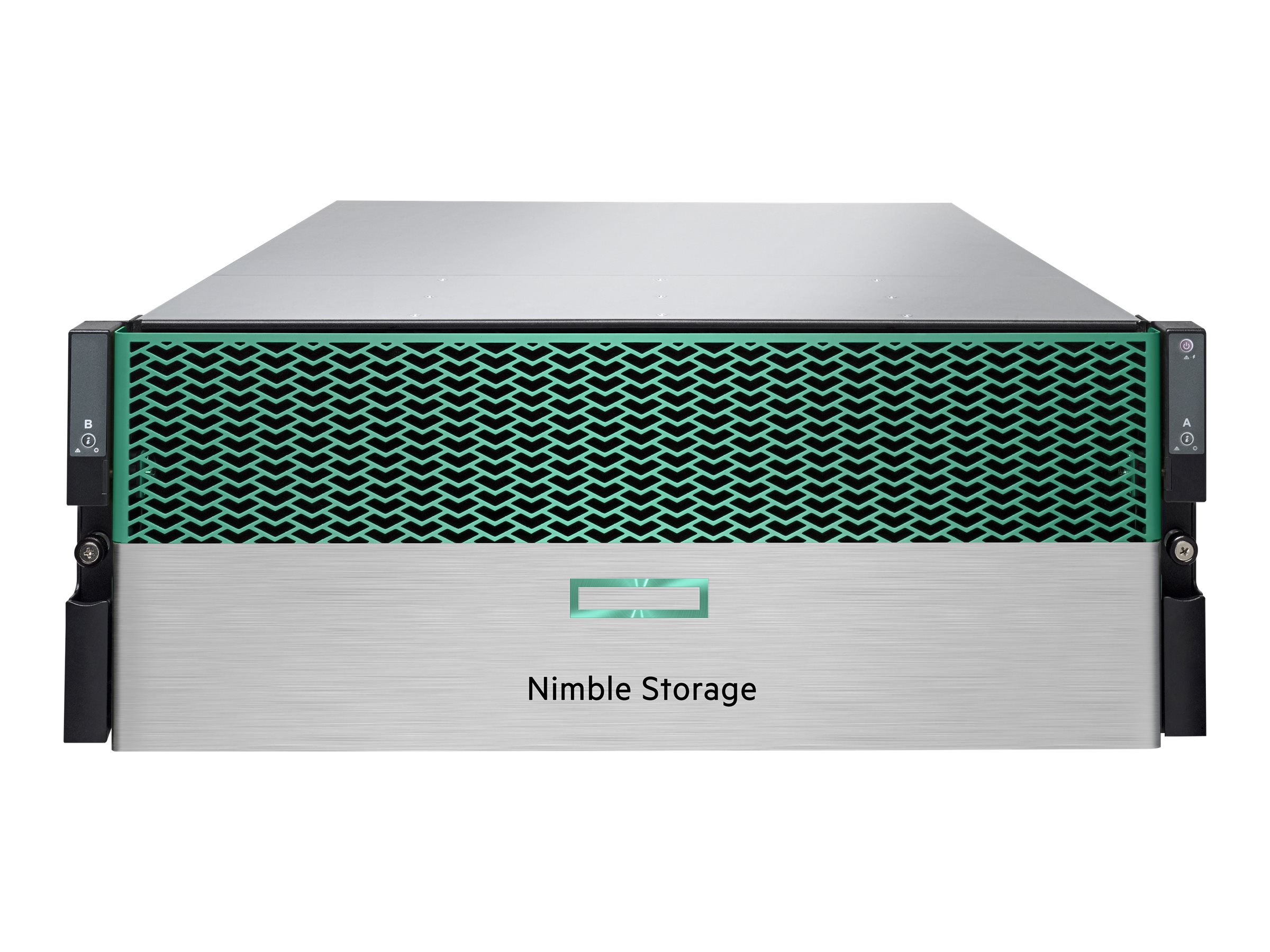

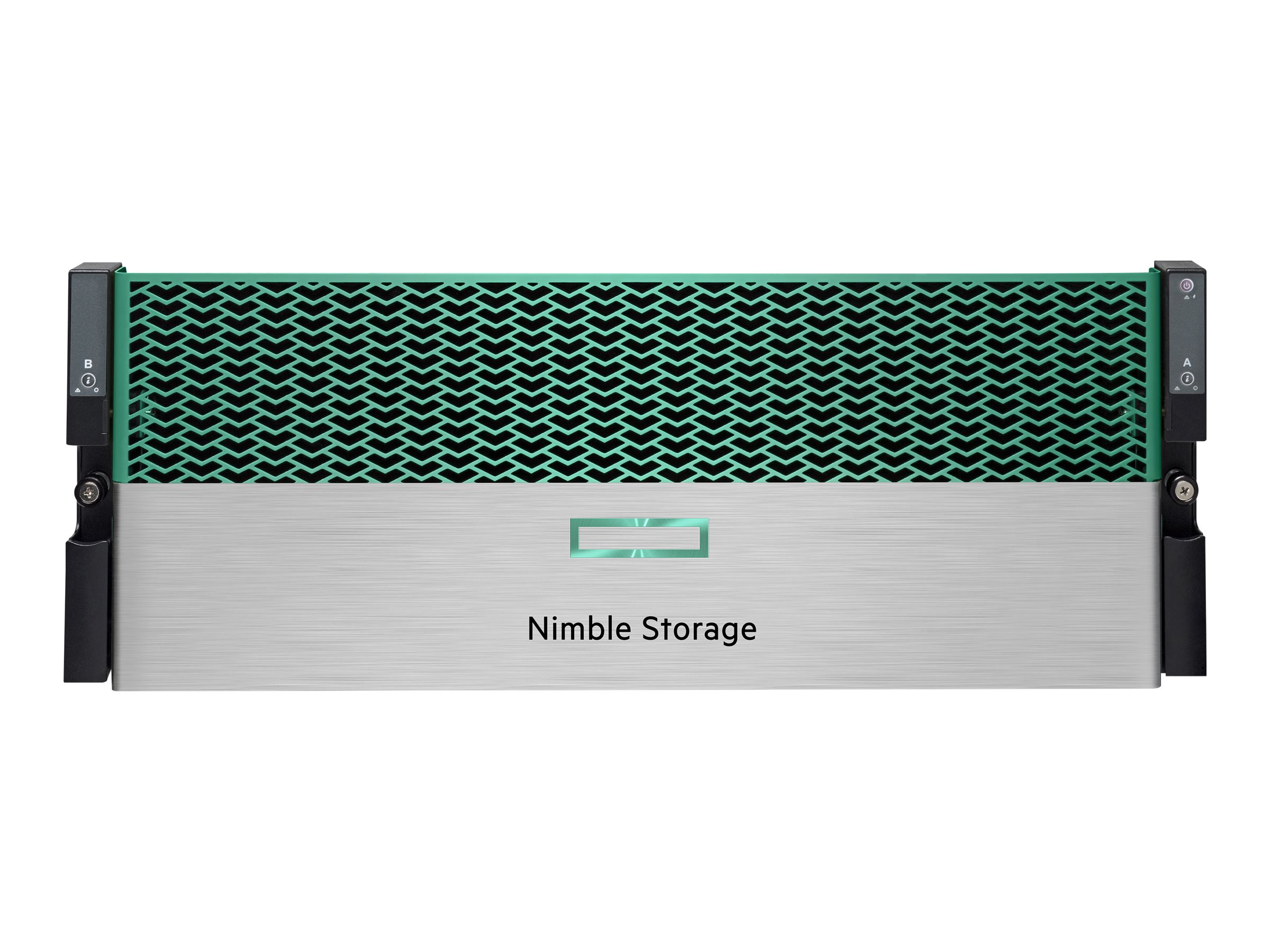

HPE Nimble Storage Adaptive Flash HF20H Base Array
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Nimble Storage Adaptive Flash HF20H Base Array
- Solid state / hard drive array
- 13 bays
- iSCSI (10 GbE) (external)
- rack-mountable
- 4U
- CTO
| Additional Details | |
|---|---|
| Mfr Part #: | Q8H71A |
| SHI Part #: | 35419661 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | HPE Nimble Storage Adaptive Flash HF20H Base Array - Solid state / hard drive array - 13 bays - iSCSI (10 GbE) (external) - rack-mountable - 4U - CTO |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 89 cm |
| Dimensions & Weight / Height | 17.58 cm |
| Dimensions & Weight / Weight | 65 kg |
| Dimensions & Weight / Width | 43.9 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / HDD Array External Interface | iSCSI (10 GbE) |
| Storage / HDD Array External Interface Class | iSCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Type | Solid state / hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 13 |
| Dimensions & Weight | |
| Depth | 89 cm |
| Height | 17.58 cm |
| Weight | 65 kg |
| Width | 43.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Expansion Bays |
|
| Expansion Slots | 6 (total) / 6 (free) x expansion slot |
| Interfaces | 4 x Ethernet 10Gb (iSCSI) |
| General | |
| Device Type | Solid state / hard drive array |
| Enclosure Type | Rack-mountable - 4U |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, cUL, NOM, CCC, IEC 60950-1, IC Class A, WEEE, FCC Part 15 B Class A, BSMI Class A, KC, NOM-019-SCFI-1998, VCCI Class A, EAC, CITC, RCM, RoHS 2011/65/EU, BSMI CNS 13438(95), BIS, EN50581:2012, CoC, EN 55024:2010, EN 55022:2010, AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, CNS 14336-1:99, EN 55032:2012, LoA, ICES-003:2016 issue 6 Class A, VCCI V-3/2014.04 Class A, CISPR 32:2012, EN 60950-1:2005, TP TC 004/2011, TP TC 020/2011, CISPR 24:2010+A1:2015, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Pricing Type | CTO |
| Power | |
| Max Supported Qty | 2 |
| Power Device | 0 x internal power supply |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Storage | |
| HDD Array External Interface | iSCSI (10 GbE) |
| Storage Controller | |
| Installed Qty | 2 |
| Type | RAID |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
