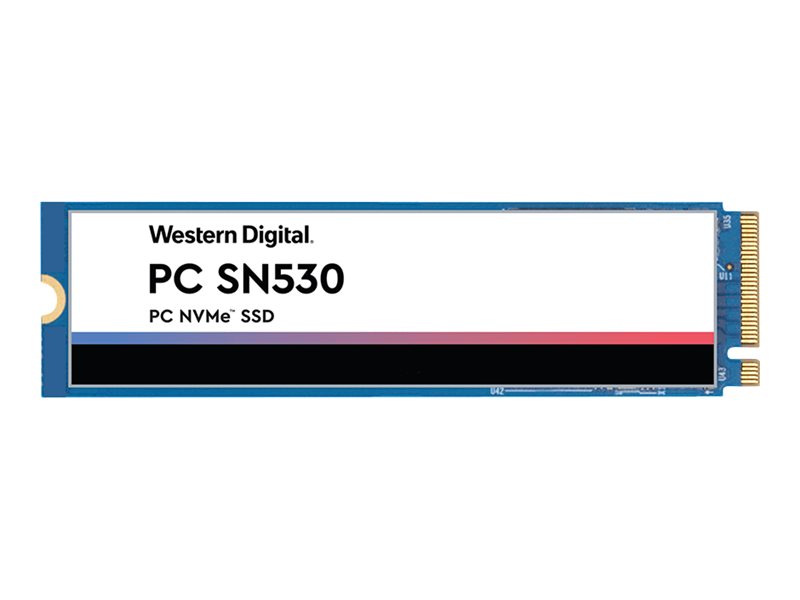

WD PC SN530 NVMe SSD SDBPNPZ-256G
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
WD PC SN530 NVMe SSD SDBPNPZ-256G
- SSD
- 512 GB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
- for Intel Next Unit of Computing 13 Extreme Kit
- NUC13RNGi5, 13 Extreme Kit
- NUC13RNGi7
| Additional Details | |
|---|---|
| Mfr Part #: | SDBPNPZ-512G |
| SHI Part #: | 39741909 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD PC SN530 NVMe SSD SDBPNPZ-256G - SSD - 512 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - for Intel Next Unit of Computing 13 Extreme Kit - NUC13RNGi5, 13 Extreme Kit - NUC13RNGi7 |
| Manufacturer | Western Digital |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 2.38 mm |
| Dimensions & Weight / Weight | 7.5 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For | Intel Next Unit of Computing 13 Extreme Kit - NUC13RNGi5, 13 Extreme Kit - NUC13RNGi7 |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -55 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card |
| General | |
| Capacity | 512 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | NVM Express (NVMe) 1.4, 96-layer 3D NAND technology |
| Form Factor | M.2 2280 |
| Height | 2.38 mm |
| Interface | PCIe 3.0 x4 (NVMe) |
| Weight | 7.5 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, TUV, UL, KCC, BSMI, VCCI, RCM, Morocco, CAN ICES-3 Class B, NMB-3 Class B |
| Performance | |
| Internal Data Rate | 2400 MBps (read) / 1750 MBps (write) |
| Maximum 4KB Random Read | 315000 IOPS |
| Maximum 4KB Random Write | 230000 IOPS |
| SSD Endurance | 300 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,750,000 hours |
