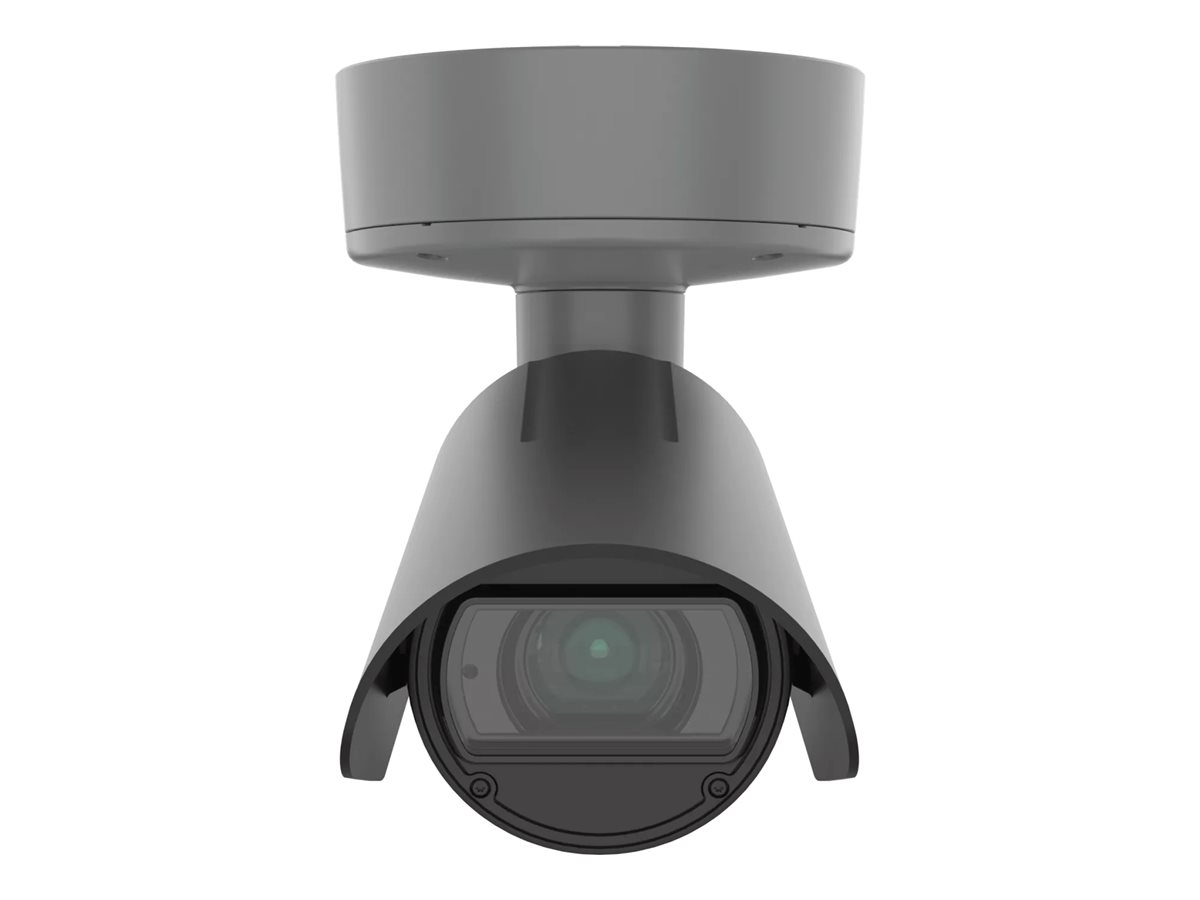

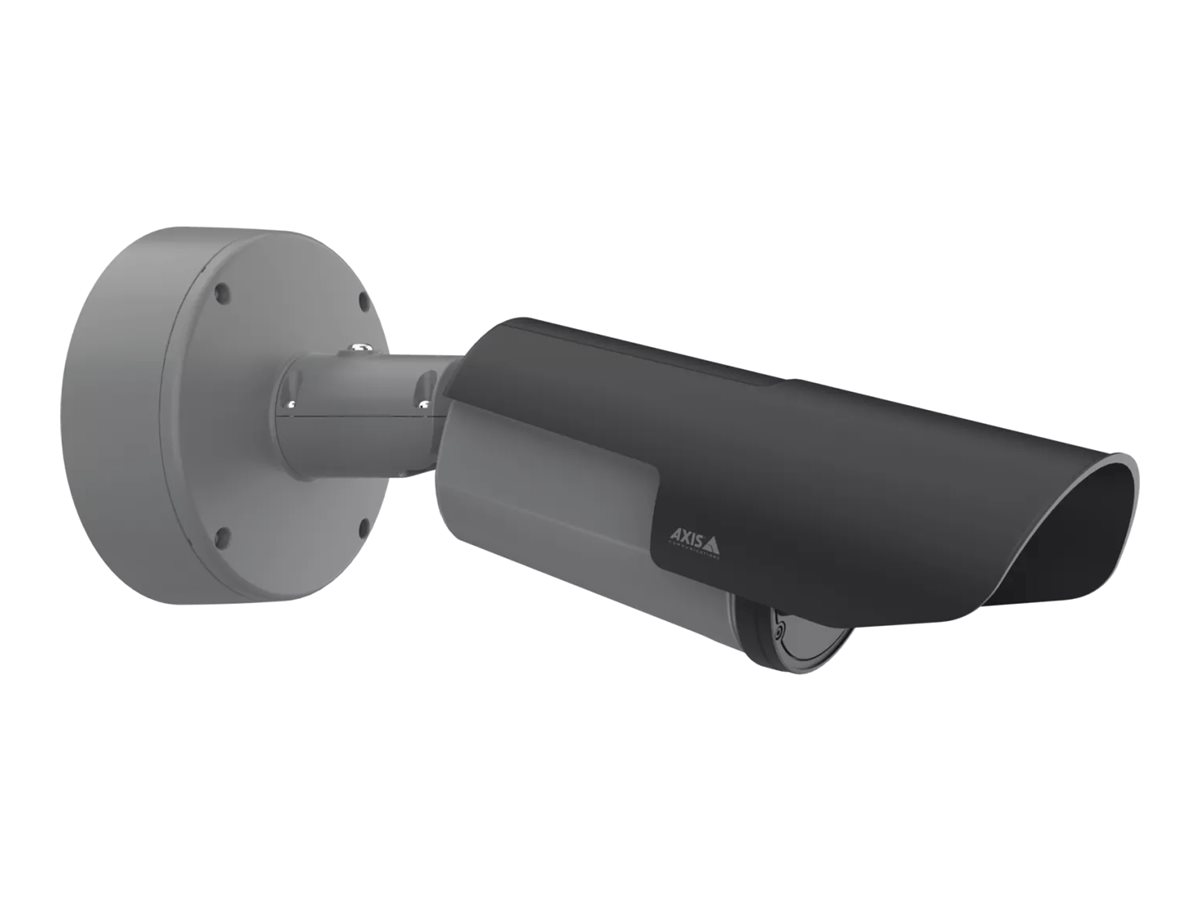

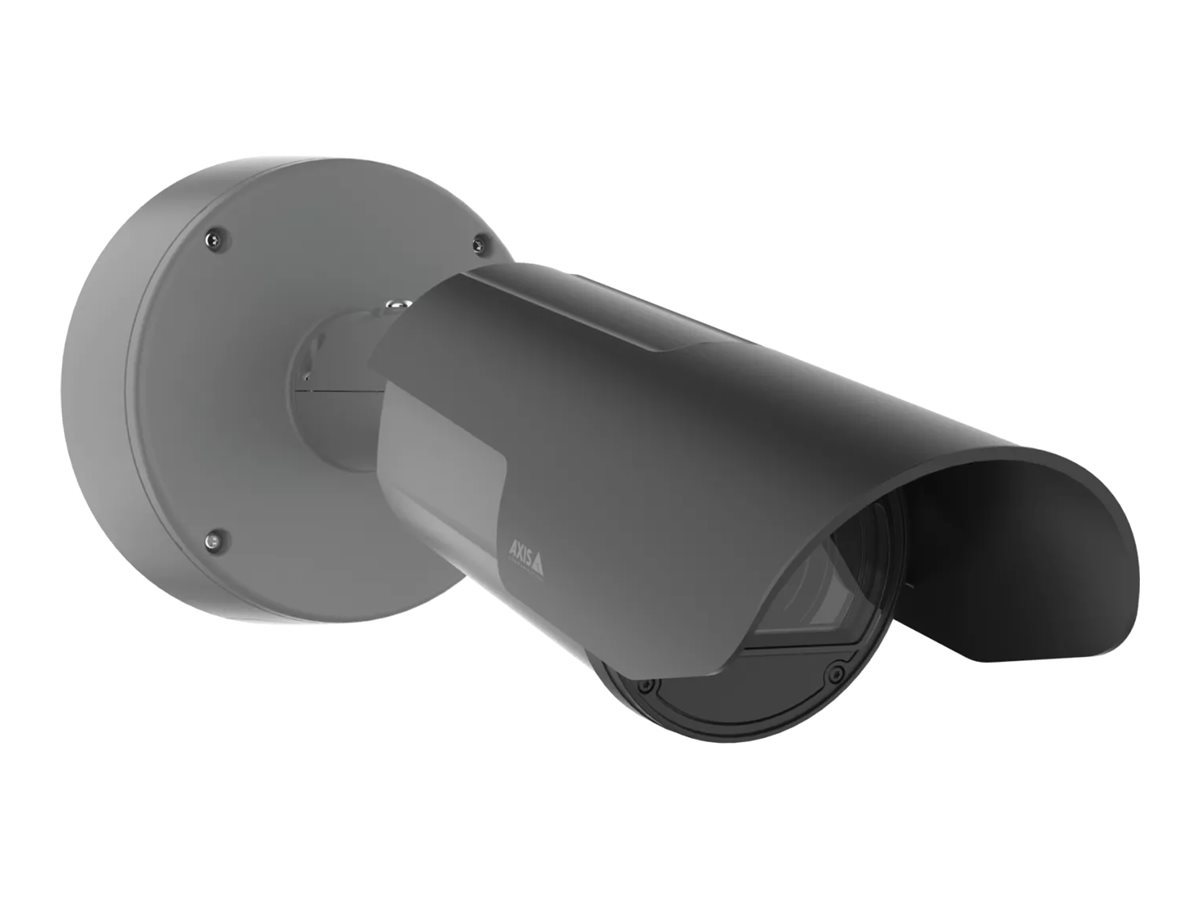

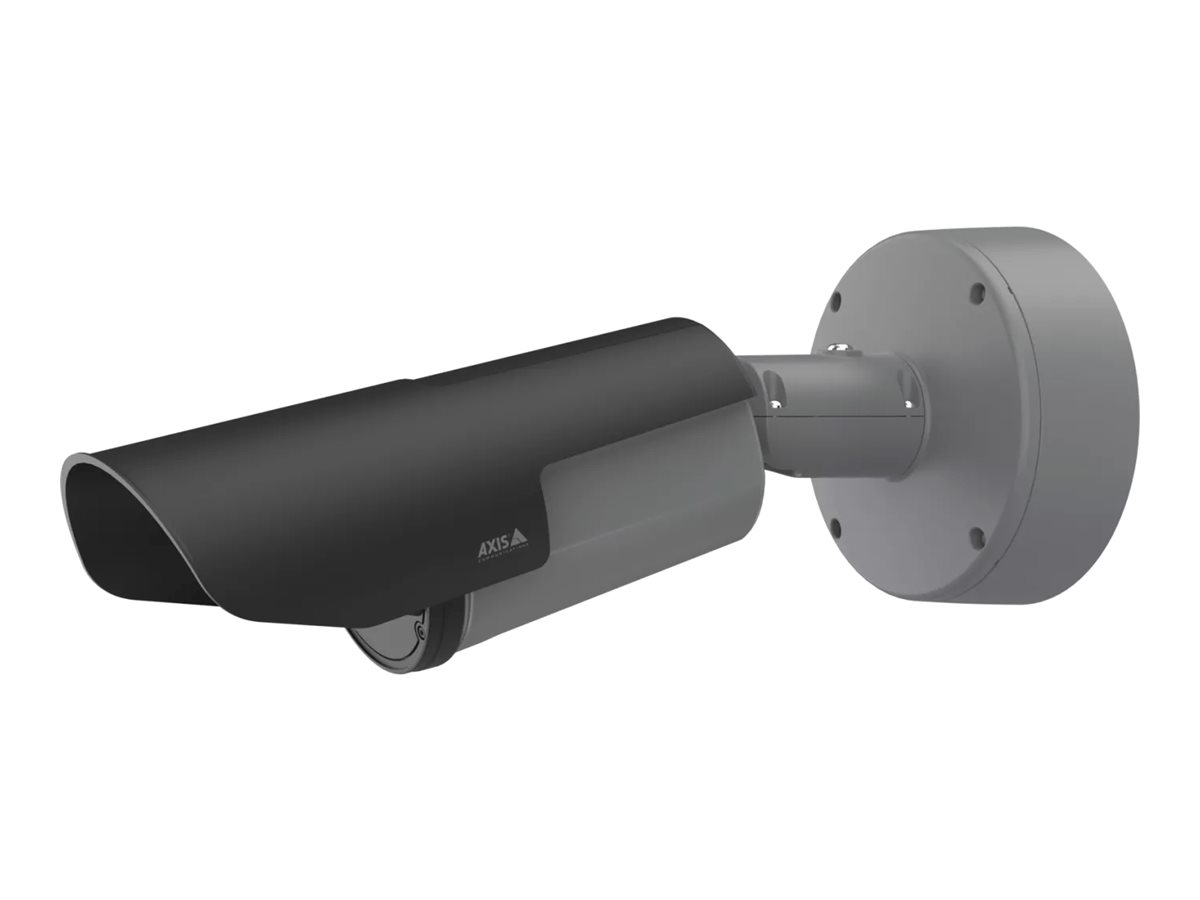

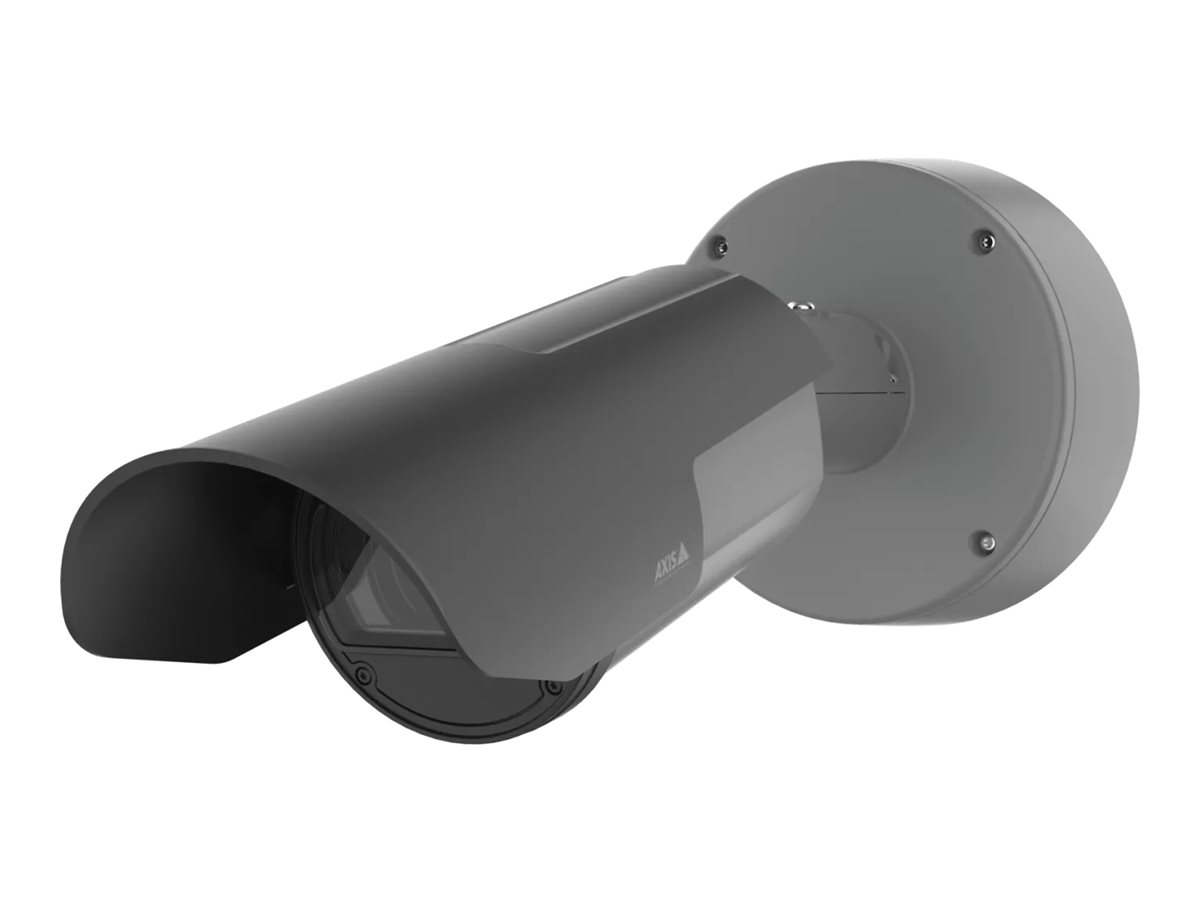

AXIS Q18 Series Q1800-LE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS Q18 Series Q1800-LE
- Network surveillance camera
- bullet
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 1920 x 1080
- 1080p
- auto iris
- vari-focal
- audio
- GbE
- H.264B, H.264M, H.264H, H.265, MJPEG
- DC 10
- 28 V / AC 20
- 24 V / PoE class 6
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 03107-001 |
| SHI Part #: | 49613789 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS Q18 Series Q1800-LE - Network surveillance camera - bullet - outdoor - vandal / weatherproof - color (Day&Night) - 1920 x 1080 - 1080p - auto iris - vari-focal - audio - GbE - H.264B, H.264M, H.264H, H.265, MJPEG - DC 10 - 28 V / AC 20 - 24 V / PoE class 6 - TAA Compliant |
| Manufacturer | Axis Communications |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 46.4 cm |
| Dimensions & Weight / Height | 18.3 cm |
| Dimensions & Weight / Weight | 3.2 kg |
| Dimensions & Weight / Width | 18.3 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Format | H.264B, H.264M, H.264H, H.265, MJPEG |
| Exposure Range | 2 sec - 1/111000 sec |
| Features | License plate recognition (LPR), remote zoom, remote focus, infrared-cut filter, OptimizedIR, 250km/h max. vehicle speed, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Lightfinder 2.0 technology, half duplex audio, spectrum visualizer, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Defog, Pixel Counter Support, level grid, leveling assistant, Audio Detection |
| Flash Memory | 8 GB |
| Infrared Distance | 50 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Video Capture |
|
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 85% RH (condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Audio Support | Yes: two-way audio capability, 10-band graphic equalizer, speaker pairing, microphone pairing |
| Connectivity Technology | Wired |
| Depth | 46.4 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 18.3 cm |
| Localization | Australia, Argentina, Brazil, China, Europe, Japan, United Kingdom, United States |
| Weight | 3.2 kg |
| Width | 18.3 cm |
| Image Sensor | |
| Type | PS RGB CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, HTTP/2, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, DHCPv4, DHCPv6, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Lens Construction | |
| Focal Length | 7 mm - 137 mm |
| Horizontal Field of View (degree) | 2.3 - 38 |
| Lens Iris | F/1.5-4.0 auto iris (P-Iris) |
| Min Focus Distance | 1.2 m |
| Optical Zoom | 20 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 1.3 - 22 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 1 x network cable - external |
| Color | Gray, NCS S 5502-B, black, NCS S 9000-N |
| Compliant Standards | UL, cUL, BIS, UKCA, KC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, IK08, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.1x, IEEE 802.1ae, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, PVC-free, BFR-free, CFR free, JS709, RoHS 2011/65/EU Amendment 2015/863, EN/IEC 63000:2018, REACH 2006/1907 |
| Included Accessories | Terminal block connector, connector guard, cable gaskets, owner authentication key |
| TAA Compliant | Yes |
| Panning | |
| Range (degree) | -180 to +180 |
| Power | |
| Power Requirements | DC 10 - 28 V / AC 20 - 24 V / PoE class 6 |
| Software / System Requirements | |
| Software Included | AXIS Object Analytics, AXIS Scene Metadata, AXIS Speed Monitor, AXIS Video Motion Detection |
| Tilting | |
| Range (degree) | 0 to -90 |
