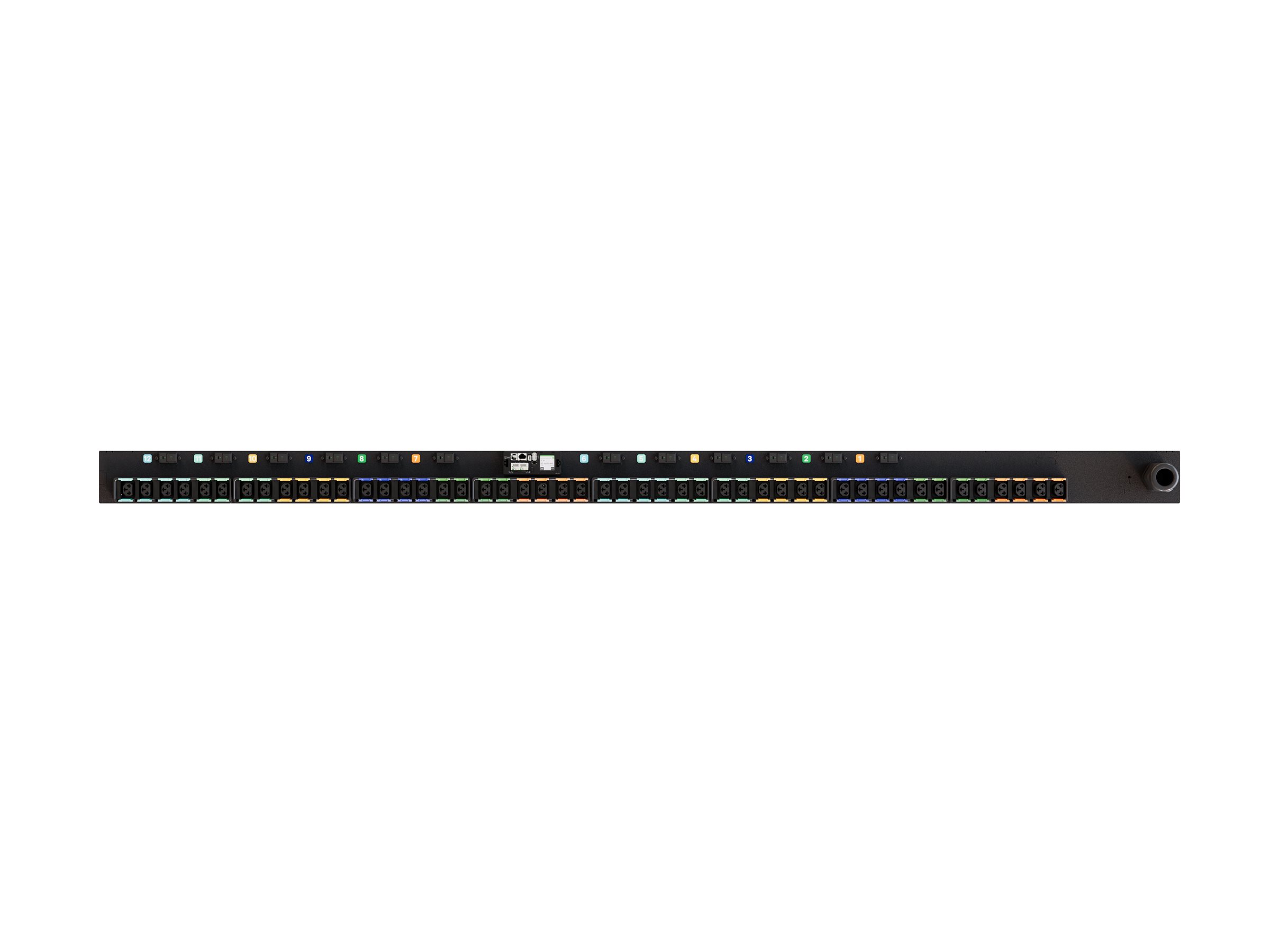

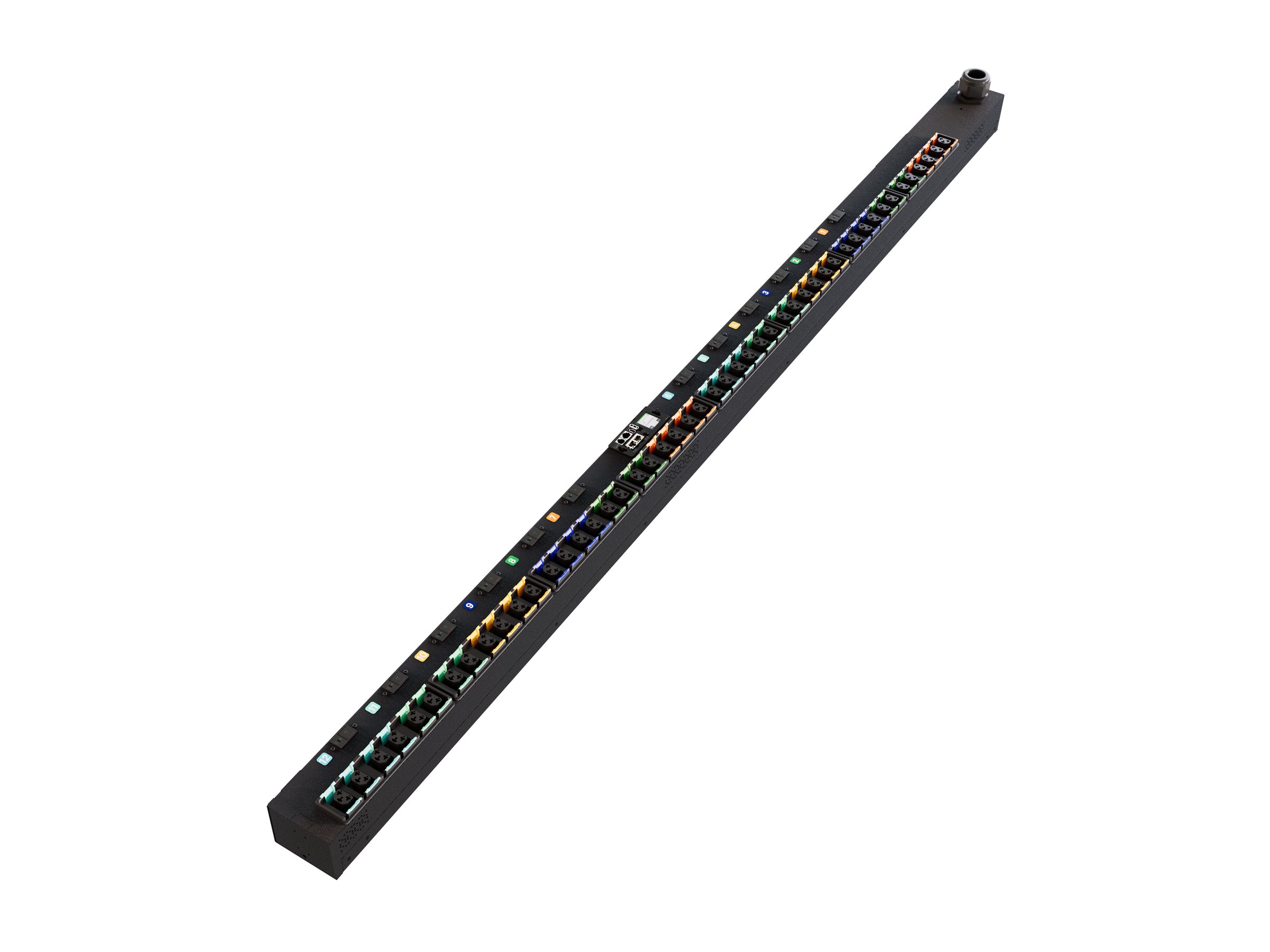

Vertiv PowerIT JMUR5MDZ1-48CF13-6PS56B4A10-S
MSRP€4,184.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vertiv PowerIT JMUR5MDZ1-48CF13-6PS56B4A10-S
- Power distribution unit (rack-mountable)
- AC 240/415 V
- 43.4 kW
- 3-phase WYE
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60309 3P+N+E
- output connectors: 48 (IEC 60320 C13/C19)
- 0U
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €4,184.00 |
| Mfr Part #: | VP6U60A1 |
| SHI Part #: | 49887027 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Vertiv PowerIT JMUR5MDZ1-48CF13-6PS56B4A10-S - Power distribution unit (rack-mountable) - AC 240/415 V - 43.4 kW - 3-phase WYE - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+N+E - output connectors: 48 (IEC 60320 C13/C19) - 0U - black powder coat |
| Manufacturer | Vertiv |
| MSRP | €4,184.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.7 cm |
| Dimensions & Weight / Height | 211.5 cm |
| Dimensions & Weight / Width | 7.7 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Vertiv |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Voltage Required | AC 240/415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 9.7 cm |
| Height | 211.5 cm |
| Width | 7.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.98 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | UL/CUL 62368-1, UKCA, IEC 62368-1, EN 55032, EN 55035, RoHS, RCM, FCC Part 15 A, China RoHS, ANSI C12.1, IEC 62053-21 |
| Features | Vertical orientation, circuit/breaker current monitoring, monitored, 12 x 20A single pole magnetic breakers, breaker/switch combination, LCD display, LED indicators, IP reset button, hard reboot button, splash-proof plug |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 240/415 V |
| Input Voltage Range | AC 200 - 240 / 346 - 415 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 63 A |
| Output Voltage | AC 240/415 V 50/60 Hz |
| Power Capacity | 43.4 kW |
| Power Output Connectors Details | 48 x power IEC 60320 C13/C19 |
