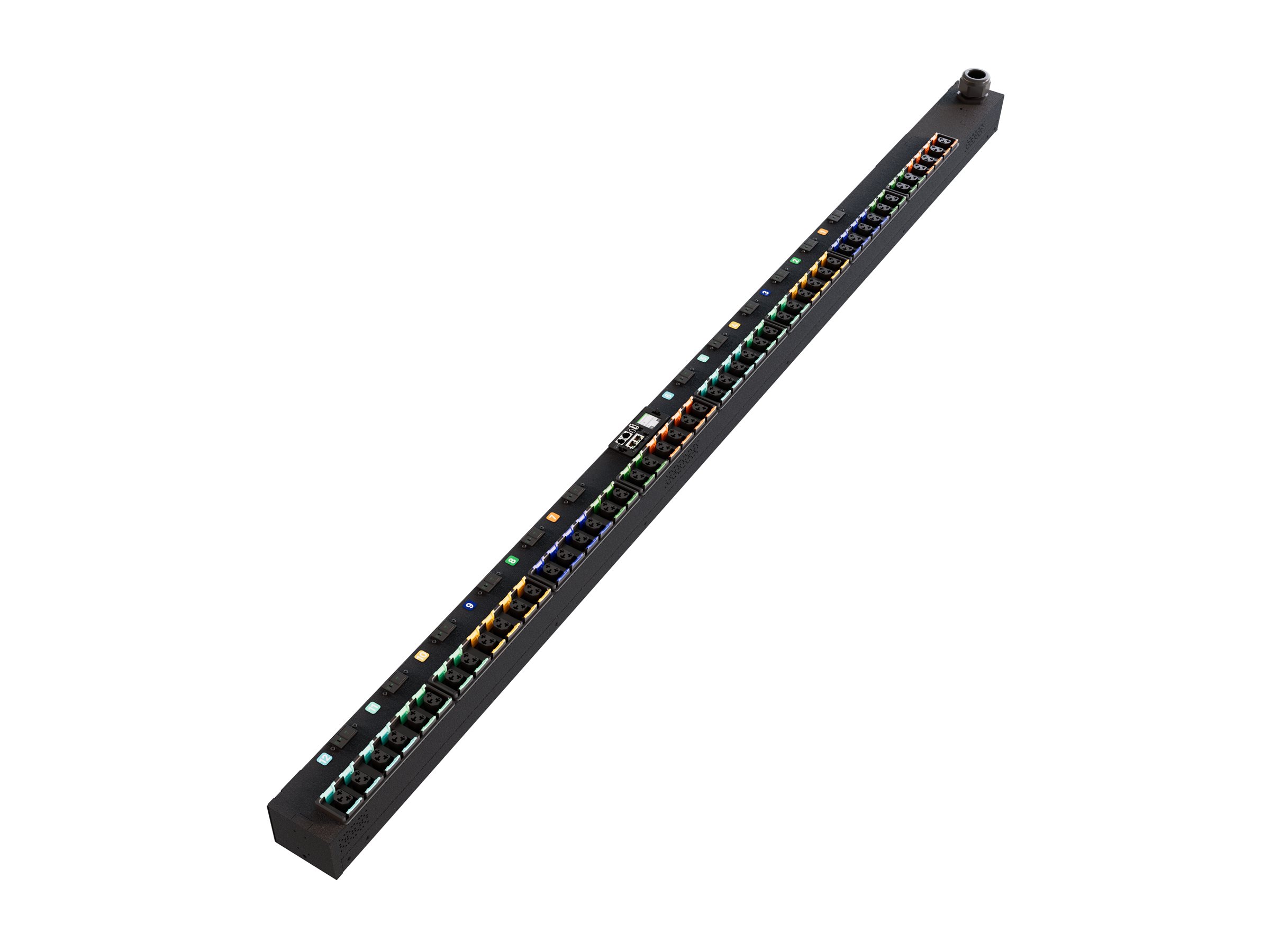

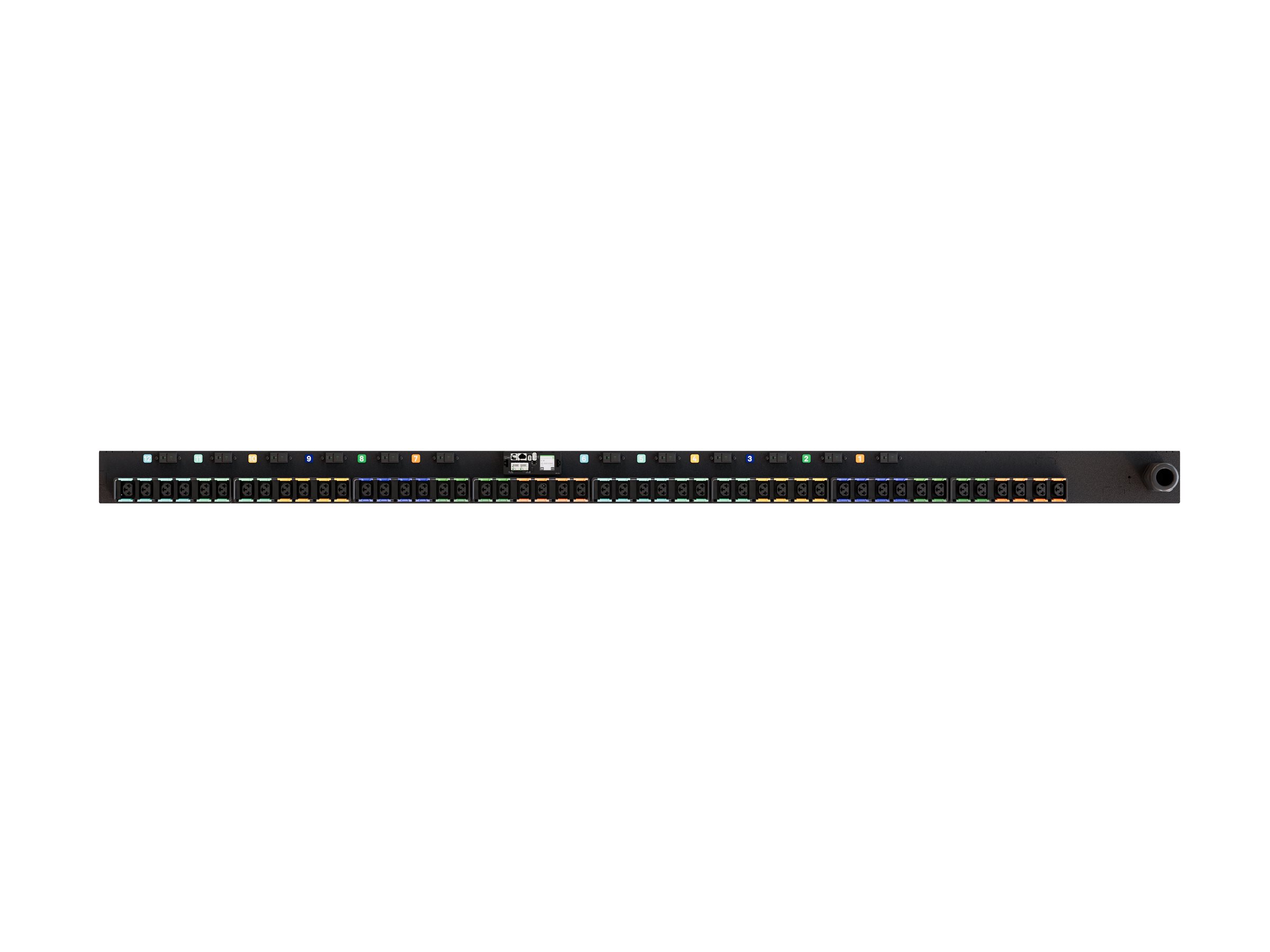

Geist Switched Outlet Level Monitoring JMUU5MDZ1-48CF13-6PS56B4A10-S
MSRP€4,450.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Geist Switched Outlet Level Monitoring JMUU5MDZ1-48CF13-6PS56B4A10-S
- Power distribution unit (rack-mountable)
- AC 200-240/346-415 V
- 3-phase WYE
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60309 3P+N+E
- output connectors: 36 (IEC 60320 C13/C19)
- 83"
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €4,450.00 |
| Mfr Part #: | VP7U60A1 |
| SHI Part #: | 49887035 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Switched Outlet Level Monitoring JMUU5MDZ1-48CF13-6PS56B4A10-S - Power distribution unit (rack-mountable) - AC 200-240/346-415 V - 3-phase WYE - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+N+E - output connectors: 36 (IEC 60320 C13/C19) - 83" - 3 m cord - black powder coat |
| Manufacturer | Vertiv |
| MSRP | €4,450.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.7 cm |
| Dimensions & Weight / Height | 211.5 cm |
| Dimensions & Weight / Width | 9.7 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 200-240/346-415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 7.7 cm |
| Height | 211.5 cm |
| Width | 9.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.98 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 83" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | IP44, UL/CUL 62368-1, UKCA, IEC 62368-1, EN 55032, EN 55035, RoHS, RCM, FCC Part 15 A, China RoHS, ANSI C12.1, IEC 62053-21 |
| Features | Vertical mount, upgradeable, monitored, Interchangeable Monitoring Device (IMD) module, circuit/breaker current monitoring, daisy chain functionality, 12 x 20A single pole magnetic breakers, 10kAIC breaker, breaker/switch combination, touch screen LCD display, LED indicators, splash-proof plug, color-coded labels, banks of 6 style, hard reboot button, IP reset button |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 200-240/346-415 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 63 A |
| Output Voltage | AC 240 V 50/60 Hz |
| Power Output Connectors Details | 36 x power IEC 60320 C13/C19 |
