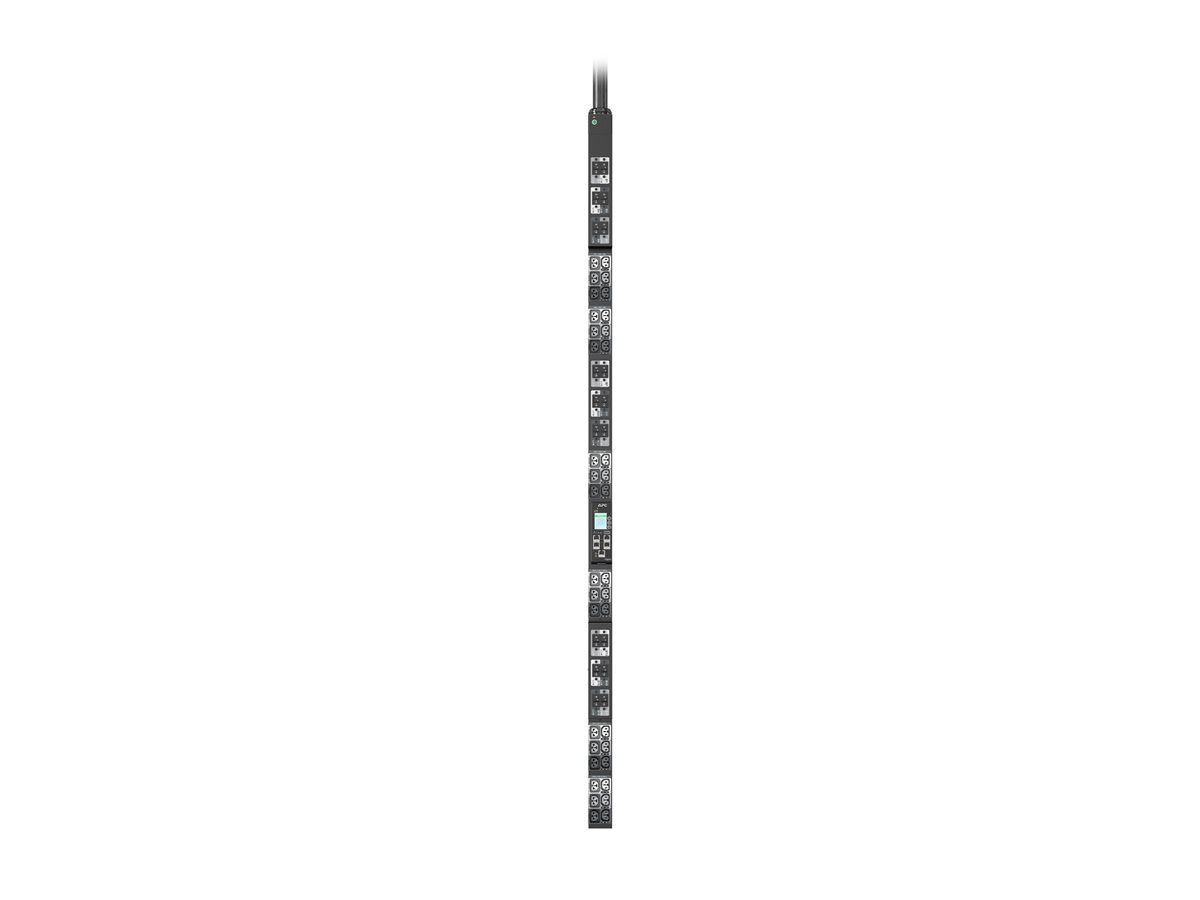

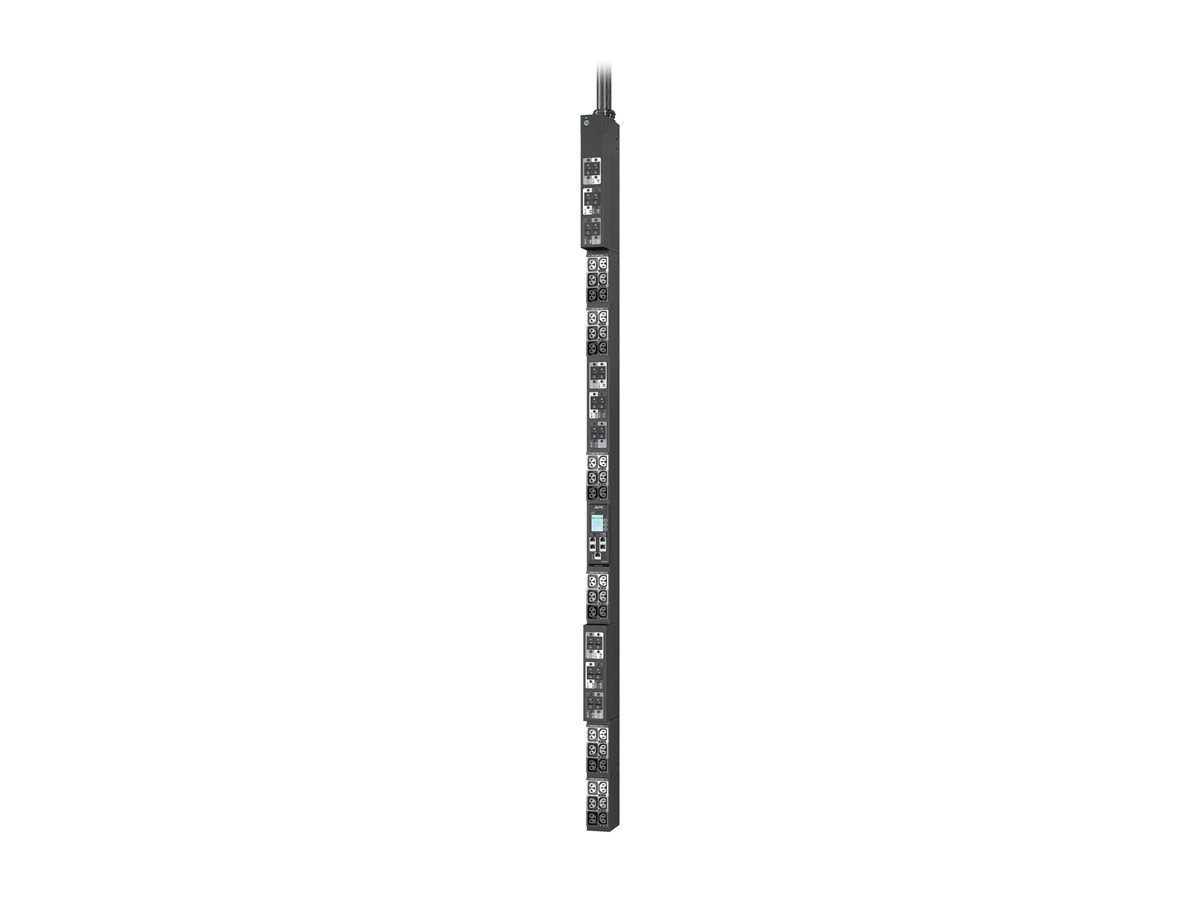

APC NetShelter Rack PDU Advanced
MSRP€5,000.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC NetShelter Rack PDU Advanced
- Power distribution unit (rack-mountable)
- switched, metered, 415 V
- AC 415 V
- 69000 VA
- 3-phase
- Ethernet 10/100/1000
- input: IEC 60309 100A
- output connectors: 36 (18 x IEC 60320 C13/C15, 18 x IEC 60320 C13/C15/C19/C21)
- 0U
- 3 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €5,000.00 |
| Mfr Part #: | APDU11550ME |
| SHI Part #: | 51570088 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched, metered, 415 V - AC 415 V - 69000 VA - 3-phase - Ethernet 10/100/1000 - input: IEC 60309 100A - output connectors: 36 (18 x IEC 60320 C13/C15, 18 x IEC 60320 C13/C15/C19/C21) - 0U - 3 m cord - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | €5,000.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.7 cm |
| Dimensions & Weight / Height | 175 cm |
| Dimensions & Weight / Weight | 18.8 kg |
| Dimensions & Weight / Width | 5.9 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 69000 VA |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Dimensions & Weight | |
| Depth | 8.7 cm |
| Height | 175 cm |
| Weight | 18.8 kg |
| Width | 5.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 16.5 cm |
| Shipping Height | 198 cm |
| Shipping Weight | 24.6 kg |
| Shipping Width | 35 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Miscellaneous | |
| Cables Included | AC input cable 3 m |
| Compliant Standards | IP67, UL, CSA, UKCA, PSE Mark, KC, China RoHS, RCM, CMIM |
| Features | Vertical orientation, switched, input metered |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 100A |
| Input Voltage | AC 415 V |
| Input Wiring | 3-phase |
| Max Electric Current | 100 A |
| Output Voltage | AC 415 V |
| Power Capacity | 69000 VA |
| Power Output Connectors Details |
|
